Selecting the right glass insulator is not just about meeting technical standards; it’s about ensuring long-term reliability of your transmission line under real-world conditions. For utility engineers and project managers, the choice between a standard type glass insulator, fog type glass insulator, or double shed glass insulator often comes down to balancing electrical performance, pollution resistance, and maintenance policies. At Nanjing Rainbow Electric Co., Ltd. (NJREC), we provide a complete range of certified glass insulators designed to meet these diverse requirements, offering safe, durable, and cost-effective solutions for every environment.
The first step in selecting a glass insulator is aligning the system voltage class with the required insulation level. Higher system kV ratings demand longer creepage distances to withstand leakage currents and avoid flashover. Utility standards typically specify minimum creepage requirements, but project engineers should also consider site-specific conditions such as humidity and dust. Requesting insulators with tested dielectric strength and confirmed creepage distance is essential to guarantee performance.
Pollution is one of the most critical drivers of insulator choice. In clean rural zones, a standard type glass insulator is usually sufficient. However, coastal areas, desert regions, or industrial zones with chemical residues can cause severe contamination. Salt fog and industrial pollution create conductive films on the insulator surface, reducing flashover voltage. For these environments, fog type or double shed glass insulators provide increased creepage and improved hydrophobicity.

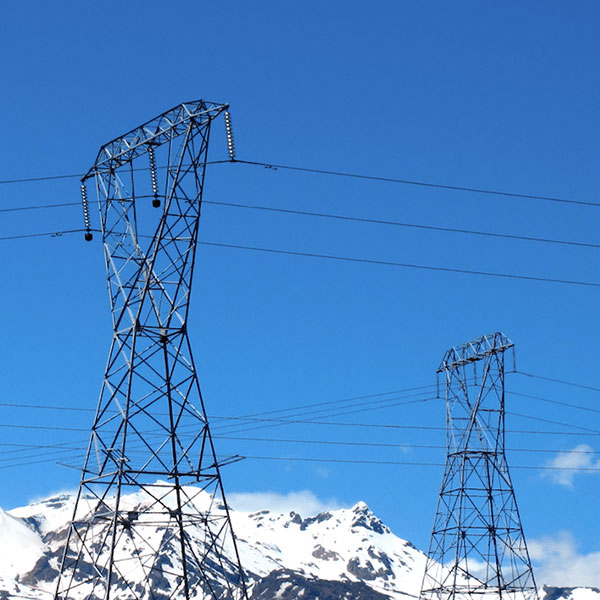

Mechanical considerations are equally important. Transmission lines face constant tension, wind loading, and in colder climates, ice accretion. The mechanical strength rating of the insulator string must match or exceed expected loads. For long spans, bundled conductors, or heavy ice regions, project engineers should carefully calculate string length and the number of discs required. Using glass insulators with high tensile ratings and robust cap-and-pin construction helps ensure safe long-term operation.
Every utility operates under a different maintenance philosophy. Some companies allow for periodic insulator washing, while others prefer designs that minimize maintenance demands. RTV-coated glass insulators are particularly useful for reducing cleaning cycles in extreme environments. If access to lines is limited or cleaning costs are high, specifying RTV coating can offer significant lifecycle benefits.
A standard type glass insulator generally consists of a toughened glass disc bonded to galvanized steel fittings (cap and pin). The tempered glass provides superior dielectric strength and resists aging over decades of service. Cracks or defects are immediately visible through simple visual inspection, which enhances operational safety.
This type is well-suited for clean or lightly polluted regions such as rural transmission networks, high-altitude areas with low contamination, and standard distribution projects. Utilities often select standard type glass insulators for their balance of cost, reliability, and ease of inspection.
When procuring, buyers should request key performance values such as minimum creepage distance, rated mechanical strength (usually specified as kN), and dielectric withstand test results. Compliance with IEC or ANSI standards ensures compatibility and quality.
Standard type glass insulators are cost-efficient, reliable, and easy to inspect visually. However, in polluted or coastal regions, they may require frequent cleaning or additional mitigation strategies.
Fog type glass insulators feature altered shed profiles, usually with deeper or steeper skirts, designed to increase creepage distance and shed water more effectively. Surface finishes may also be optimized to limit water film continuity.
Pollution particles accumulate on insulators over time. When combined with fog or mist, these contaminants form conductive films that sharply reduce flashover voltage. This risk is particularly high in humid coastal areas or fog-prone valleys.
Fog type glass insulators are the preferred choice when operating in areas with consistent fog, high humidity, or moderate pollution levels. They offer enhanced performance compared to standard insulators, extending maintenance intervals and reducing the risk of unplanned outages.
Double shed glass insulators feature an additional skirt or shed profile that significantly increases creepage distance. This design makes them ideal for heavily polluted industrial belts, mining regions, or desert areas where dust accumulation is severe. By increasing the leakage path, they delay the formation of conductive films and reduce flashover events.
In extreme pollution zones, even double shed profiles may not suffice. RTV-coated glass insulators add a layer of silicone that maintains hydrophobic properties, repelling water and minimizing conductive film formation. This coating reduces the frequency of line washing and enhances long-term reliability.
While RTV-coated insulators provide excellent performance, they come with higher upfront cost and require careful handling to avoid damaging the coating. Utilities should weigh the reduced maintenance expense against initial investment. In most extreme cases, RTV-coated glass insulators provide the best balance between cost and performance over the lifecycle of the line.
Routine inspections should focus on glass disc integrity (checking for cracks or chips), cement bonding between glass and metal parts, and signs of pin or cap corrosion. One advantage of toughened glass is that broken units are immediately visible due to shattering into small pieces.
Tempered glass discs are robust in service but must be handled carefully during transportation and installation. Avoiding impact and ensuring proper packaging prevents premature damage.
In polluted environments, manual or automated washing may be required. If cleaning intervals are not practical, utilities should consider specifying RTV-coated units to reduce intervention frequency.
Buyers should require that suppliers provide IEC or ANSI equivalent certification, along with type tests, routine tests, and acceptance test records. These documents prove compliance with international standards and safeguard quality.
Sampling and lot acceptance testing ensures consistency across large orders. Lead times may vary depending on custom requirements such as high mechanical strength or RTV coating. Packaging should protect discs during long shipping routes, especially for overseas projects.
Procurement teams should draft unambiguous specifications that state required creepage distance, mechanical rating, coating requirements (if any), and testing standards. Clear specifications help avoid delivery of unsuitable insulators and reduce project delays.
Choosing the right glass insulator begins with understanding system voltage, pollution severity, mechanical load, and maintenance policy. Standard type glass insulators work well in clean areas, fog type glass insulators address humid or foggy conditions, and double shed glass insulators or RTV-coated options are best for heavily polluted environments. At Nanjing Rainbow Electric Co., Ltd. (NJREC), we provide a complete range of certified glass insulators designed for high-voltage overhead lines, ensuring safety, durability, and reliable performance. Contact us today to request a datasheet, specification checklist, or tailored recommendation for your project needs.
