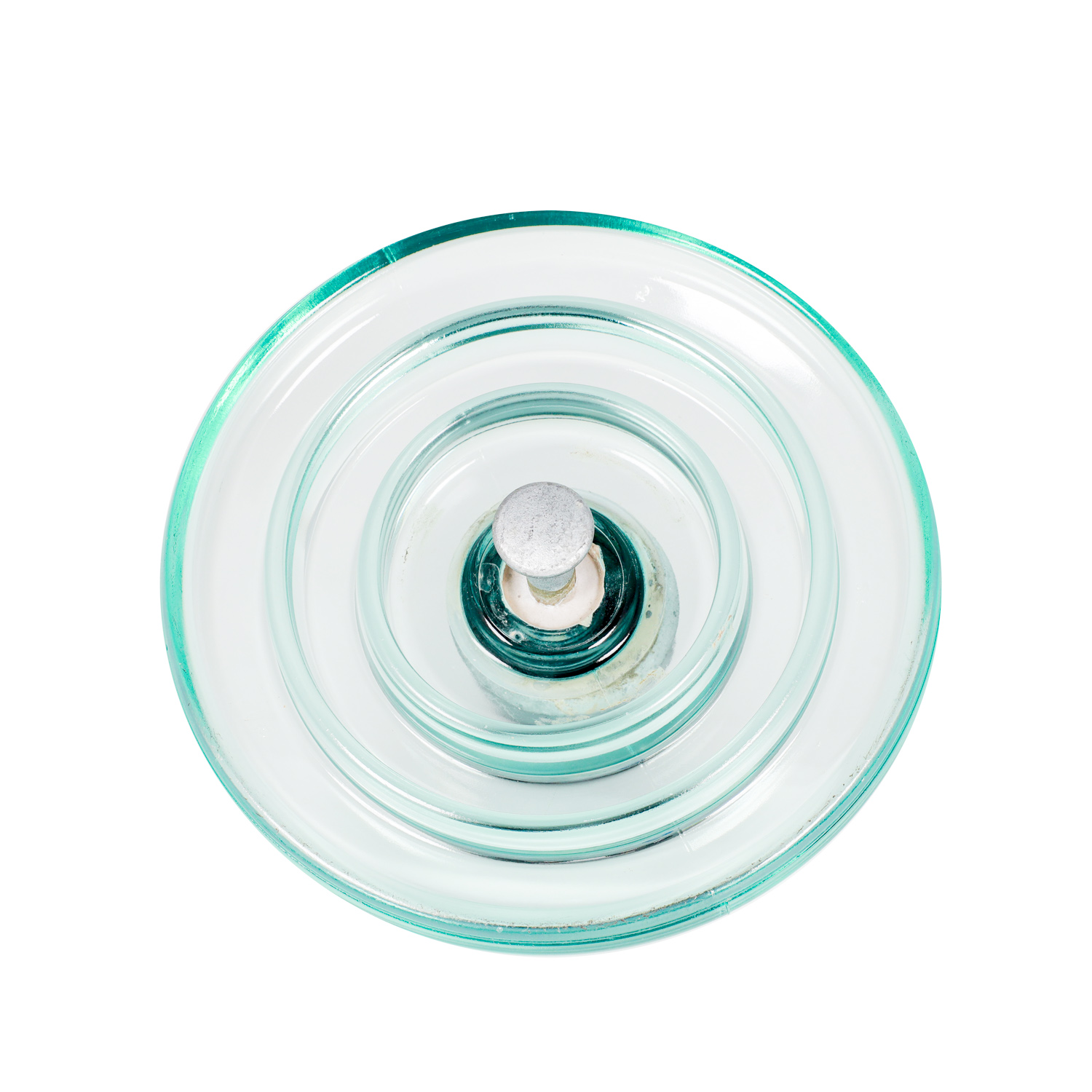

70kN U70BS Standard Pin Type Disc Glass Insulator

Model: NO. U70BS Toughened Glass Insulator
Material: Glass
Certification: CE, ISO9001
Brand: NJREC
M&E Strength (kN): 70kN
Creepage Distance: 320mm
Unit Spacing (H): 127mm
Color: Natural
Transport Package: Wooden Pallet
Origin: China

Delivery: Sea
Delivery Time: 30 Days

Color:	Natural
Material:	Glass
Availability:

Quantity:



Inquire Add to Basket

Model:
U70BS
Brand:
NJREC

Glass Insulator 70kN Glass Insulator U70BS Glass Insulator Standard Pin Type Glass Insulator Standard Type Glass Insulator Disc Glass Insulator

Product Description

Specification:

Type	Spacing(mm)	Diameter (mm)	Creepage Distance(mm)	Coupling	Mechanical Faiing Load(kN)
U40B	110	175	190	11	40
U70BS	127	255	320	16	70
U70BL	146	255	320	16	70
U100BS	127	255	320	16	100
U100BL	146	255	320	16	100
U120B	146	255	320	16	120
U120BS	127	255	320	16	120
U160BL	170	280	400	20	160
U160BS	146	280	400	20	160
U210B	170	280	400	20	210
U240B	170	280	400	24	240
U300B	195	330	490	24	300
U400B	205	360	550	28	420
U550B	240	380	620	32	550
U70BLP	146	280	450	16	70
U100BLP	146	280	450	16	100
U120BP	146	280	450	16	120
U160BLP	170	320	550	20	160
U160BMP	155	320	550	20	160
U160BSP	146	320	550	20	160
U210BP	170	320	550	20	210
U240BP	170	320	550	24	240
U300BP	195	380	690	24	300
U420BP	205	380	620	28	420
U550BP	240	390	710	32	550

Production Application:

NJREC GROUP has already exported to North America, South America, AustraliaSoutheast Asia, Africa, Europe and 50 other countries and regions. Transformer Bushingsand Insulators manufactured by NJREC correspond to the international standards asreferred to their quality and are in the market at the most competitive prices.
