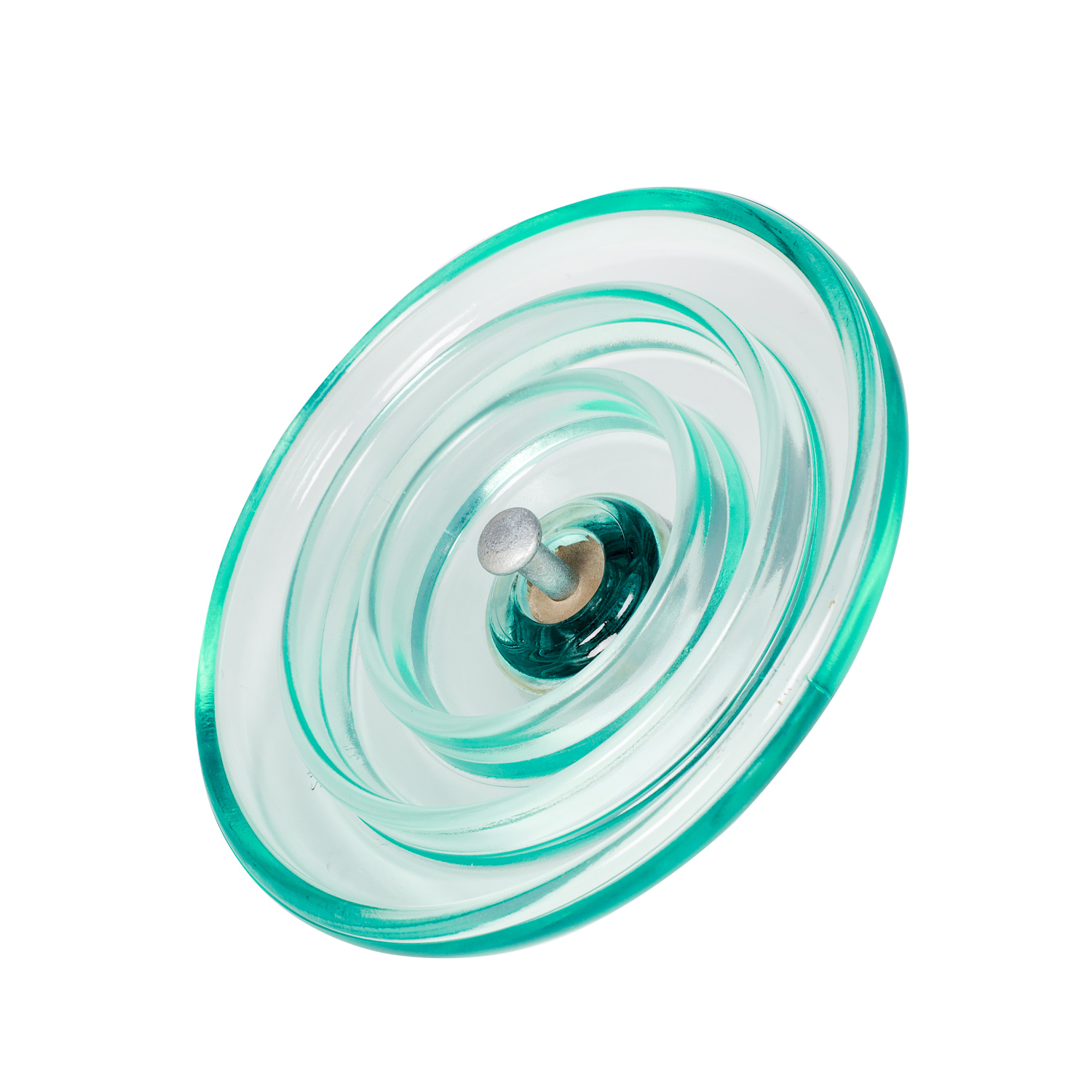

Model: NO. U120B Toughened Glass Insulator
Material: Glass
Certification: CE, ISO9001
Brand: NJREC
M&E Strength(kN): 120kN
Creepage Distance: 320mm
Unit Spacing(H): 146mm
Color: Natural
Transport Package: Wooden Pallet
Origin: China
Delivery: Sea
Delivery Time: 30 Days
| Color: | |
|---|---|
| Material: | |
| Quantity: | |
U120B
NJREC
| Company Profile
Nanjing Rainbow Electric Co., Ltd. (NJREC) is a leading Chinese manufacturer and supplier of electrical insulators and transformer bushings.NJREC undertakes and offer the reliable electrical insulators for transmission lines and substations. We also provide one-stop solutions for distribution & power transformers, pad-mounted transformers and wall-mounted applications.
| Product Description
The Standard Suspension Disc Glass Insulator is a high - quality insulator designed for reliable performance in various electrical transmission lines and distribution lines.
| Data Sheet
| Standard Type | Spacing(mm) | Diameter (mm) | Creepage Distance(mm) | Standard Coupling | Mechanical Faiing Load(kN) |
| U40B | 110 | 175 | 190 | 11 | 40 |
| U70BS | 127 | 255 | 320 | 16 | 70 |
| U70BL | 146 | 255 | 320 | 16 | 70 |
| U100BS | 127 | 255 | 320 | 16 | 100 |
| U100BL | 146 | 255 | 320 | 16 | 100 |
| U120B | 146 | 255 | 320 | 16 | 120 |
| U120BS | 127 | 255 | 320 | 16 | 120 |
| U160BL | 170 | 280 | 400 | 20 | 160 |
| U160BM | 155 | 280 | 400 | 20 | 160 |
| U160BS | 146 | 280 | 400 | 20 | 160 |
| U210B | 170 | 280 | 400 | 20 | 210 |
| U240B | 170 | 280 | 400 | 24 | 240 |
| U300B | 195 | 330 | 490 | 24 | 300 |
| U420B | 205 | 380 | 550 | 28 | 420 |
| U550B | 240 | 380 | 620 | 32 | 550 |
| Support Custom
| Factory Pictures
The Standard Suspension Disc Glass Insulator is a reliable and versatile product, suitable for a wide range of applications in the electrical power industry, providing essential insulation and mechanical support for safe and efficient power transmission and distribution.
| Product Applications
Widely used in power transmission and distribution projects. They are installed on transmission towers and substation equipment, effectively preventing electrical leakage and ensuring the stable operation of power lines. Whether in high - voltage long - distance transmission or substation internal wiring, they can provide reliable insulation protection.
