70kN U70BL Disc Suspension Glass Insulator

Share to:

70kN U70BL Disc Suspension Glass Insulator

This Outdoor Waterproof 480W Laser Beam Moving Head Light LBSW - 480RGB is a game - changer for outdoor lighting needs. Designed for stadiums, outdoor installations, and marine venues, it offers powerful RGB laser performance.

With an input voltage of 110V - 240V AC (50/60Hz) and a total power of 480W, the 300W (480W optional) laser light source ensures vivid projections. Boasting a 20,000 - hour light source life, it delivers long - lasting, reliable illumination.

Key features include a 150mW RGB laser, 120,000 - hour laser diodes, 0.8° beam, 16 - facet prism, 1° - 15° zoom, and 100Hz strobe for dynamic effects. IP66 - rated waterproof, it works in - 20℃ to 50℃ and 95% humidity.

It’s ideal for large - scale shows and permanent setups, outshining rivals with rugged durability and pro - level lighting capabilities.

Inquire now to elevate your outdoor lighting!

Color:	Natural
Material:	Glass
Availability:

Quantity:



Inquire Add to Basket

Model:
U70BL
Brand:
NJREC

Disc Suspension Glass Insulators Power Transmission Insulators High Voltage Insulation Glass Insulators for Power Grids Electrical insulators transmission line insulators Glass Suspension Insulators

Product Description

| Company Profile

Nanjing Rainbow Electric Co., Ltd. (NJREC) is a leading Chinese manufacturer and supplier of electrical insulators and transformer bushings.NJREC undertakes and offer the reliable electrical insulators for transmission lines and substations. We also provide one-stop solutions for distribution & power transformers, pad-mounted transformers and wall-mounted applications.

| Product Description

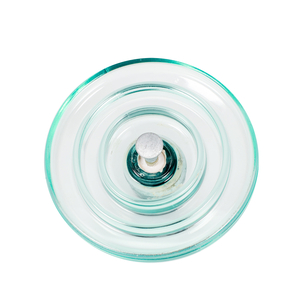

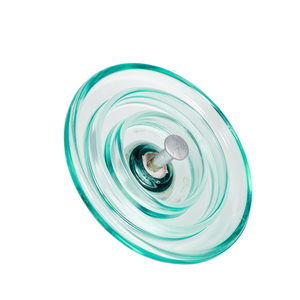

The Standard Suspension Disc Glass Insulator is a high - quality insulator designed for reliable performance in various electrical transmission lines and distribution lines.

| Data Sheet

Standard Type	Spacing(mm)	Diameter (mm)	Creepage Distance(mm)	Standard Coupling	Mechanical Faiing Load(kN)
U40B	110	175	190	11	40
U70BS	127	255	320	16	70
U70BL	146	255	320	16	70
U100BS	127	255	320	16	100
U100BL	146	255	320	16	100
U120B	146	255	320	16	120
U120BS	127	255	320	16	120
U160BL	170	280	400	20	160
U160BM	155	280	400	20	160
U160BS	146	280	400	20	160
U210B	170	280	400	20	210
U240B	170	280	400	24	240
U300B	195	330	490	24	300
U420B	205	380	550	28	420
U550B	240	380	620	32	550

| Support Custom

| Factory Pictures

The 70kN U70BL Standard Suspension Disc Glass Insulator is a reliable and versatile product, suitable for a wide range of applications in the electrical power industry, providing essential insulation and mechanical support for safe and efficient power transmission and distribution.

glass-insulators

| Product Applications

Widely used in power transmission and distribution projects. They are installed on transmission towers and substation equipment, effectively preventing electrical leakage and ensuring the stable operation of power lines. Whether in high - voltage long - distance transmission or substation internal wiring, they can provide reliable insulation protection.

In the market, there are other glass insulators with similar functions. Competitors' products may also come in various models, but in terms of performance parameters like mechanical strength, creepage distance design, and adaptability to different voltage levels, our products have their own advantages. Some competitors might focus on cost - effectiveness with relatively basic specifications, while we offer a more comprehensive range of models to precisely match different engineering requirements, from low - load small - scale applications to high - load, high - voltage large - scale transmission projects.
