Double Shed Disc Suspension Type Tempered Glass Insulator

The Cap and Pin suspension type glass insulators produced by our company include: 40~550kN standard profile, 70~300kN fog type profile, 70~240kN open profile, 70~100kN ground profile and 70~240kN double shed profile, which can be widely applied in high-voltage, extra-high-voltage and ultra-high-voltage transmission line with voltage grade between 10KV and 1000KV.

Color:	Natural
Material:	Glass
Availability:

Quantity:



Inquire Add to Basket

Model:
Double Shed
Brand:
NJREC

Double-shed disc suspension insulators Tempered glass insulators Power Transmission Insulators High voltage insulators Electrical Insulation Mechanical stability

Product Description

| Company Profile

Nanjing Rainbow Electric Co., Ltd. (NJREC) is a leading Chinese manufacturer and supplier of electrical insulators and transformer bushings.NJREC undertakes and offer the reliable electrical insulators for transmission lines and substations. We also provide one-stop solutions for distribution & power transformers, pad-mounted transformers and wall-mounted applications.

| Product Introduction

As a linchpin for power transmission systems, double - shed disc suspension - type tempered glass insulators are indispensable for delivering both electrical insulation and mechanical stability.

| Data Sheet

Double-shed Type	Spacing(mm)	Diameter (mm)	Creepage Distance(mm)	Standard Coupling	Mechanical Faiing Load(kN)
U70BLD	146	280	450	16	70
U100BLD	146	280	450	16	100
U120BLD	146	280	450	16	120
U160BD	155	280	450	20	160
U210BD	170	280	450	20	210
U240BD	170	280	450	24	240
U300BD	195	330	485	24	300
U160BT	170	320	550	20	160
U210BT	170	320	550	20	210
U240BT	170	320	550	24	240
U300BT1	195	320	550	24	300
U300BT2	195	400	635	24	300
U420BT	205	400	635	28	420
U550BT	240	400	635	32	550

| Support Custom

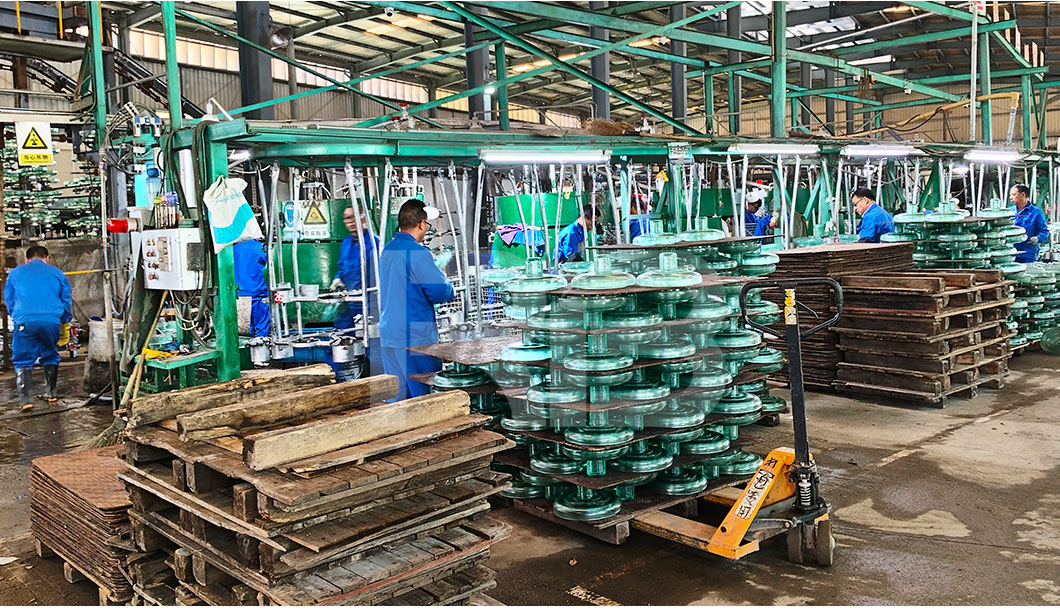

| Factory Pictures

The Glass Insulator is a reliable and versatile product, suitable for a wide range of applications in the electrical power industry, providing essential insulation and mechanical support for safe and efficient power transmission and distribution.

glass-insulators

| Product Applications

Widely used in power transmission and distribution projects. They are installed on transmission towers and substation equipment, effectively preventing electrical leakage and ensuring the stable operation of power lines. Whether in high - voltage long - distance transmission or substation internal wiring, they can provide reliable insulation protection.
