70kN U70BLP Anti Fog Type Toughened Glass Insulator

Share to:

U120B-120 KN Fog Type Toughened Glass Insulator

LBSW - 480RGB is a high - performance outdoor laser moving head light for pros. With 110V - 240V AC input and 480W power, it has a 20,000 - hour - life light source. IP66 - rated, it resists harsh conditions. Boasting “Powerful RGB Laser” (150mW red, 100mW green, 50W blue), it hits 120,000 lux @15m. Features ＜0.8° accuracy, 16 - facet prism, 1° - 15° zoom, and 100Hz strobe. Ideal for large shows, installations, and marine venues, creating vibrant beams and soft washes.

Color:	Natural
Material:	Glass
Availability:

Quantity:



Inquire Add to Basket

Model:
U70BLP
Brand:
NJREC

Toughened Glass Insulator High Voltage Insulator Transmission Line Insulator Electrical Insulator Creepage Distance Insulator Mechanical Load Capacity Insulator

Product Description

| Company Profile

Nanjing Rainbow Electric Co., Ltd. (NJREC) is a leading Chinese manufacturer and supplier of electrical insulators and transformer bushings.NJREC undertakes and offer the reliable electrical insulators for transmission lines and substations. We also provide one-stop solutions for distribution & power transformers, pad-mounted transformers and wall-mounted applications.

| Product Introduction

Toughened glass insulators are critical components in power transmission systems, ensuring electrical insulation and mechanical support for conductors on transmission towers. Available in diverse models (e.g., U40B, U70BS, U70BL, U70BLP), they cater to varied power grid requirements.

| Data Sheet

Fog Type	Spacing(mm)	Diameter (mm)	Creepage Distance(mm)	Standard Coupling	Mechanical Faiing Load(kN)
U70BLP	146	280	450	16	70
U70BLP1	146	255	400	16	70
U70BLP2	146	320	550	16	70
U100BLP	146	280	450	16	100
U100BLP1	146	255	400	16	100
U100BLP2	146	320	550	16	100
U120BP	146	280	450	16	120
U120BP1	146	255	400	16	120
U120BP2	146	320	550	16	120
U160BMP	155	320	550	20	160
U160BMP1	155	280	450	20	160
U160BLP	170	320	550	20	160
U160BLP1	170	280	450	20	160
U160BSP	146	320	550	20	160
U160BSP1	146	280	450	20	160
U210BP	170	320	550	20	210
U210BPL1	170	280	450	20	210
U240BP	170	320	550	24	240
U240BP1	170	280	450	24	240
U300B1	195	320	550	24	300
U300BP	195	380	690	24	300
U300BP1	195	380	635	24	300
U420BP	205	380	620	28	420
U550BP	240	390	710	32	550

| Support Custom

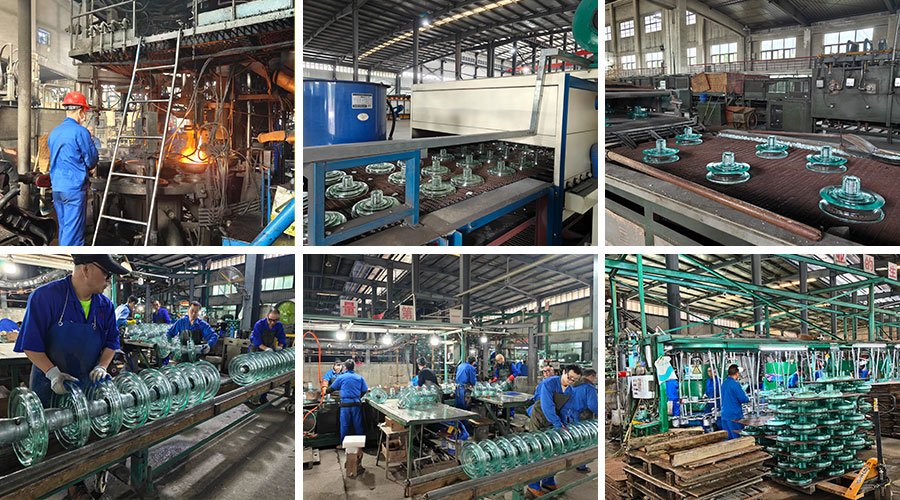

| Factory Pictures

The Standard Suspension Disc Glass Insulator is a reliable and versatile product, suitable for a wide range of applications in the electrical power industry, providing essential insulation and mechanical support for safe and efficient power transmission and distribution.

glass-insulators

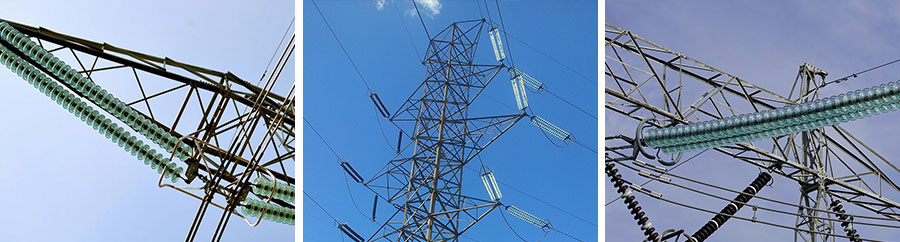

| Product Applications

Widely used in power transmission and distribution projects. They are installed on transmission towers and substation equipment, effectively preventing electrical leakage and ensuring the stable operation of power lines. Whether in high - voltage long - distance transmission or substation internal wiring, they can provide reliable insulation protection.
