U420B 420kN High Voltage Toughened Glass Suspension Insulator CE ISO9001

| Company Profile

Nanjing Rainbow Electric Co., Ltd. (NJREC) serves as a trusted manufacturer and supplier of electrical insulators and transformer bushings, supporting critical infrastructure projects worldwide. We engineer and deliver reliable electrical insulators specifically tailored for transmission lines and substations, accommodating complex grid requirements. Our facility provides comprehensive solutions for distribution and power transformers, pad-mounted transformers, and wall-mounted applications. Backed by extensive engineering expertise, we support Extra High Voltage (EHV), Ultra High Voltage (UHV), and High Voltage Direct Current (HVDC) transmission networks globally. By maintaining rigorous manufacturing protocols, we offer a solid 24-month warranty on our components, effectively minimizing procurement risks for large-scale engineering, procurement, and construction (EPC) contractors and national utility operators.

| Product Description

The U420B 420kN High Voltage Toughened Glass Suspension Insulator is engineered for exceptional reliability across demanding electrical transmission and distribution networks. Manufactured from premium toughened glass, this unit features a unique "zero-value self-shattering" characteristic. This physical property allows maintenance crews to conduct rapid visual inspections from the ground, instantly identifying any compromised units without the need for complex tower climbing or specialized testing equipment.

To combat severe environmental degradation, the U420B can be equipped with an optional zinc sleeve. This sacrificial layer actively prevents electrolytic corrosion on the steel pin, significantly extending the operational lifespan of the insulator in highly corrosive environments. Mechanically, the unit delivers a formidable tensile failing load of 420kN (with scalable designs reaching up to 550kN), alongside exceptional dielectric strength. It maintains stable insulation properties and resists lightning impulse flashovers even when deployed in coastal regions, arid deserts, high-altitude terrains, or areas with heavy industrial pollution.

| Data Sheet

The following technical parameters detail the dimensional and mechanical specifications for our suspension disc glass insulators, ranging from the U40B to the heavy-duty U550B models. Each unit is precisely calibrated to ensure consistent creepage distances and standardized coupling dimensions, facilitating straightforward integration into existing grid infrastructures.

| Support Custom

Recognizing that transmission tower configurations vary significantly across different regional grids, we provide comprehensive hardware adaptation and custom engineering services for the U420B toughened glass insulator. Our production lines accommodate multiple standard coupling mechanisms, including the widely utilized Ball & Socket and Clevis & Tongue configurations, ensuring seamless compatibility with diverse transmission line fittings.

Project engineers can select between W-type or R-type locking pins based on specific vibration profiles and tension requirements of their overhead lines. Beyond standard configurations, our technical team supports full OEM structural customization. Whether your project requires modified creepage profiles for heavy pollution zones or specialized metallic fittings for unique tower geometries, we adapt our manufacturing process to meet your precise dimensional and mechanical prerequisites.

| Factory Pictures

Our manufacturing facility integrates advanced automation with precise thermal processing to produce standard suspension disc glass insulators. Inside the production plant, raw silica and specialized additives are melted in high-temperature furnaces before being pressed into the exact aerodynamic disc profiles required for optimal electrical performance. The distinct tempering process involves rapid, controlled cooling, which locks in the internal compressive stresses that give the toughened glass its remarkable mechanical strength and signature smooth, transparent surface.

This meticulous thermal treatment ensures each glass shell provides essential insulation and mechanical support for safe and efficient power transmission. The resulting product features a hard, non-porous surface that naturally resists the accumulation of dust and moisture, promoting a self-cleaning effect during rainfall and reducing long-term maintenance burdens.

| Product Applications

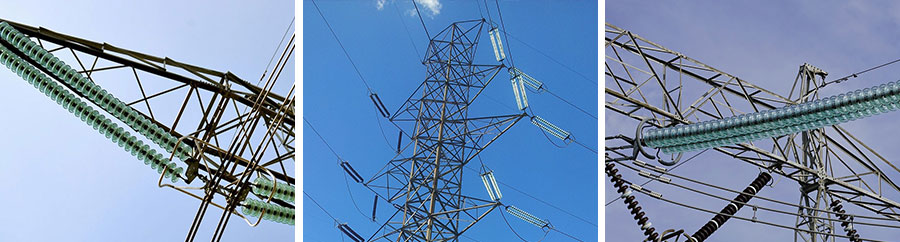

Toughened glass insulators play a vital role in modern power transmission and distribution systems, serving as the critical barrier between live conductors and grounded support structures. Engineered for optimal performance under continuous mechanical stress, the U420B series is specifically designed for installation on heavy-duty transmission towers and critical substation equipment. By effectively preventing electrical leakage accidents, these units guarantee uninterrupted power supply stability across vast regional grids.

Their superior insulation properties make them ideal solutions for high-voltage, long-distance power transmission networks that traverse challenging topographies. Furthermore, they are extensively utilized in critical substation internal wiring applications, securing jumper loops and busbars. The robust glass dielectric material ensures maximum safety and reliability in electrical infrastructure, maintaining its structural integrity and insulating capacity even under severe wind loads and ice accumulation.

| Products Packages

Transporting heavy yet fragile electrical components across international borders requires a highly engineered approach to logistics. We utilize an export-grade secure packaging system designed specifically to safeguard the U420B glass insulators during long-distance maritime transit:

• Vibration Absorption: The primary layer consists of EPE foam cushioning that absorbs micro-vibrations, preventing the glass discs from striking against one another.
• Structural Crating: The units are encased in fumigation-free, heavy-duty plywood wooden crates, reinforced to withstand heavy stacking pressure in shipping containers.
• Secure Anchoring: High-strength binding straps firmly anchor the crates to their wooden pallets, eliminating internal shifting.
• Weather Protection: An external waterproof tarpaulin covering provides a final barrier against oceanic moisture, corrosive salt spray, and unpredictable weather conditions.

| Certificates

Compliance with global electrical safety and performance parameters is non-negotiable for critical grid infrastructure. The U420B High Voltage Toughened Glass Suspension Insulator is manufactured and rigorously audited to comply fully with major international frameworks, including IEC, ANSI, and GB standards. To validate our internal quality metrics, we collaborate with internationally recognized third-party testing agencies. We provide comprehensive inspection reports and certifications from authoritative bodies such as SGS and TÜV. These verified credentials perfectly satisfy the stringent compliance and documentation requirements mandated by global EPC contractors, national grid operators, and international public utility bidding processes, ensuring a smooth procurement and approval workflow.

| Testing Quality

Delivering zero-defect electrical components requires a relentless commitment to exhaustive factory testing. Our production workflow incorporates automated inspection protocols at every critical juncture.

Electromechanical Failing Load Evaluation

Before packaging, the U420B insulators are pushed to their absolute tensile limits to ensure the steel pin and cap meet the required 420kN or 550kN thresholds without deformation.

Thermal and Mechanical (T&M) Shock Testing

We conduct stringent shock tests, rapidly cycling the toughened glass between extreme heat and freezing water to verify its structural resilience and ensure it will not fracture under sudden environmental shifts.

Routine Hydraulic and Electrical Assessments

Continuous hydraulic pressure tests and voltage flashover assessments guarantee that every shipped insulator maintains its dielectric integrity and will perform flawlessly under real-world grid stresses.

Over the years, NJREC has cultivated enduring partnerships with national utility companies, regional grid operators, and leading EPC contractors across the globe. Our high-voltage toughened glass insulators are currently actively deployed in diverse environments, from tropical coastal grids to freezing mountainous transmission corridors. We pride ourselves on understanding the complex logistical and technical demands of large-scale international power projects. By consistently delivering reliable insulation solutions on schedule and providing responsive technical support, we have become a preferred vendor for critical energy infrastructure developments. Our commitment to transparent communication, rigorous engineering standards, and long-term warranty protection continues to build lasting trust with our global clientele.
