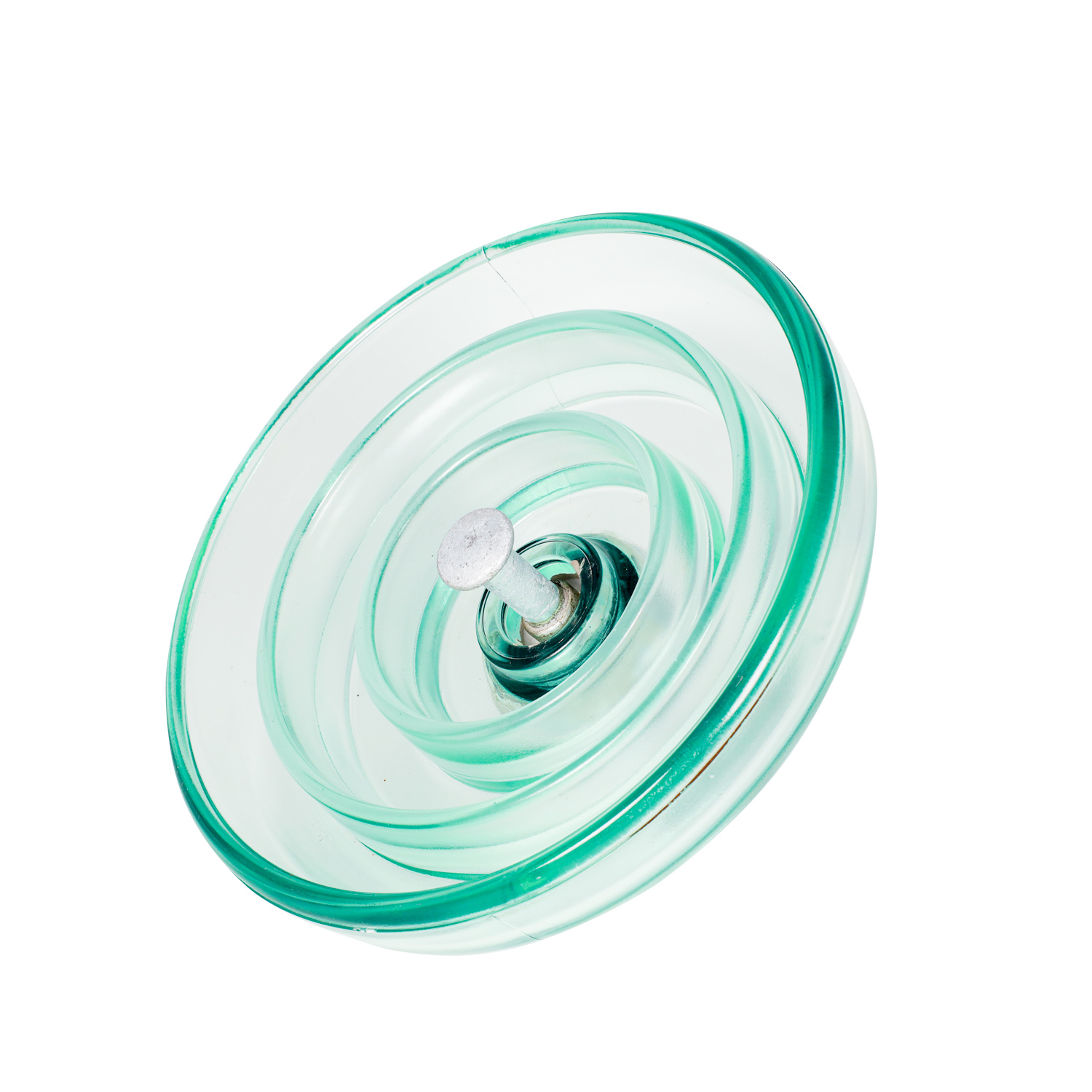

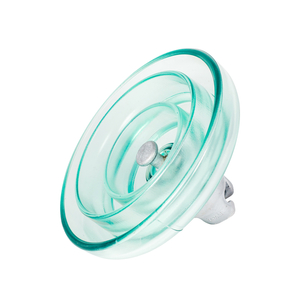

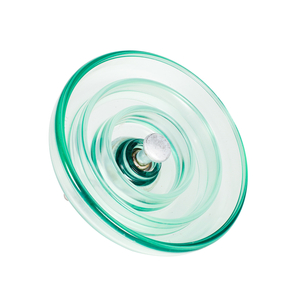

Model: NO. U70BLP Toughened Glass Insulator
Material: Glass
Certification: CE, ISO9001
Brand: NJREC
M&E Strength(kN): 70kN
Creepage Distance: 450mm
Unit Spacing(H): 146mm
Color: Natural
Transport Package: Wooden Pallet
Origin: China
Delivery: Sea
Delivery Time: 30 Days
| Color: | |
|---|---|
| Material: | |
| Quantity: | |
U70BLP
NJREC
Introducing Nanjing Rainbow Electric Co.'s Power Lines Suspension Toughened Glass Insulator—a robust solution designed for high-voltage power transmission.
High Mechanical Strength: With a mechanical failing load of 160KN, these insulators ensure durability and reliability in challenging environments.
Superior Electrical Performance:
- Power Frequency Withstand Voltage: Rated at 82kV (dry) and 50kV (wet) for U160BP, ensuring safety and efficiency.
- Lightning Impulse Withstand Voltage: Up to 140kV, providing robust protection against electrical surges.
Optimized Design:
- Ball and Socket Coupling: Facilitates easy integration and secure connections in power line assemblies.
- Creepage Distance: Up to 550mm, enhancing insulation performance in polluted environments.
Compliance and Safety: Designed and tested according to IEC standards, ensuring international quality and safety compliance.
Versatile Applications: Ideal for both tension and suspension insulator strings, catering to diverse power line configurations.
Choose Nanjing Rainbow Electric Co. for high-quality, reliable, and compliant glass insulators that meet your high-voltage transmission needs.
Specification:
| Type | Spacing(mm) | Diameter (mm) | Creepage Distance(mm) | Coupling | Mechanical Faiing Load(kN) |
| U40B | 110 | 175 | 190 | 11 | 40 |
| U70BS | 127 | 255 | 320 | 16 | 70 |
| U70BL | 146 | 255 | 320 | 16 | 70 |
| U100BS | 127 | 255 | 320 | 16 | 100 |
| U100BL | 146 | 255 | 320 | 16 | 100 |
| U120B | 146 | 255 | 320 | 16 | 120 |
| U120BS | 127 | 255 | 320 | 16 | 120 |
| U160BL | 170 | 280 | 400 | 20 | 160 |
| U160BS | 146 | 280 | 400 | 20 | 160 |
| U210B | 170 | 280 | 400 | 20 | 210 |
| U240B | 170 | 280 | 400 | 24 | 240 |
| U300B | 195 | 330 | 490 | 24 | 300 |
| U400B | 205 | 360 | 550 | 28 | 420 |
| U550B | 240 | 380 | 620 | 32 | 550 |
| U70BLP | 146 | 280 | 450 | 16 | 70 |
| U100BLP | 146 | 280 | 450 | 16 | 100 |
| U120BP | 146 | 280 | 450 | 16 | 120 |
| U160BLP | 170 | 320 | 550 | 20 | 160 |
| U160BMP | 155 | 320 | 550 | 20 | 160 |
| U160BSP | 146 | 320 | 550 | 20 | 160 |
| U210BP | 170 | 320 | 550 | 20 | 210 |
| U240BP | 170 | 320 | 550 | 24 | 240 |
| U300BP | 195 | 380 | 690 | 24 | 300 |
| U420BP | 205 | 380 | 620 | 28 | 420 |
| U550BP | 240 | 390 | 710 | 32 | 550 |
At Nanjing Rainbow Electric Co., we pride ourselves on delivering top-tier solutions in power line infrastructure, particularly with our Power Lines Suspension Toughened Glass Insulator. With a commitment to quality and innovation, Rainbow Electric stands as a beacon of reliability in the high-voltage power transmission industry.
Our products, including the Power Lines Suspension Toughened Glass Insulator, are designed to meet the rigorous demands of electrical engineers and utility companies. We understand the importance of durability, safety, and compliance with international standards such as IEC and ANSI. Our insulators are crafted to withstand harsh environmental conditions, ensuring uninterrupted power transmission.
By choosing Nanjing Rainbow Electric Co., you are partnering with a company that values long-term relationships, offers customization, and guarantees robust quality assurance. Our global reach extends to regions with developing infrastructure, providing high-quality components essential for your power line projects. Trust in our expertise to enhance your electrical grid solutions.
Explore our offerings and join the ranks of satisfied clients who prioritize excellence and reliability in their electrical infrastructure projects.
Nanjing Rainbow Electric Co. is committed to delivering high-quality, reliable Power Lines Suspension Toughened Glass Insulators. Here's how we ensure top-notch quality:
ISO9001 Certification: Our factory is ISO9001 certified, guaranteeing adherence to international quality standards.
Rigorous Testing: Every insulator undergoes comprehensive electrical testing both before and after assembly, ensuring optimal performance and safety.
ERP System: We utilize an ERP system to make production traceable, supporting transparency and accountability.
Sample Reservation: Samples are reserved for over two years, providing a reference in case of disputes.
International Standards Compliance: Our insulators strictly adhere to IEC and ANSI standards, offering you peace of mind with every purchase.
Quality Warranty: We offer a robust quality warranty, reinforcing our commitment to excellence.
Choosing Nanjing Rainbow Electric Co. means partnering with a trusted supplier who prioritizes durability, safety, and compliance. Enhance your power line projects with our superior glass insulators.
Nanjing Rainbow Electric Co. offers high-quality Power Lines Suspension Toughened Glass Insulators that are essential for reliable high-voltage power transmission. Here’s how these insulators can benefit your projects:
High Voltage Power Transmission: Ideal for maintaining safety and efficiency in transmitting electricity over long distances. These insulators prevent electrical breakdowns and ensure stable operations.
Electrical Installation: Perfect for use in both tension and suspension insulator strings, providing flexibility in installation and maintenance.
Insulation: Protect against short circuits, EM wave reflections, and electrocution hazards. Their robust design keeps power safely contained, minimizing risks associated with high voltage systems.
Durability and Safety: Designed to withstand harsh environmental conditions, ensuring long-term reliability and compliance with international standards like IEC and ANSI.
Nanjing Rainbow Electric Co. understands your need for durable and compliant components in developing regions. Partner with us for customized solutions that meet your specific requirements, backed by competitive pricing and quality assurance.
Q1: How does Nanjing Rainbow Electric Co. ensure excellent customer service?
At Nanjing Rainbow Electric Co., we prioritize outstanding customer service through comprehensive support at every stage: pre-sales, sales, and after-sales. Our team assists you in selecting the most suitable Power Lines Suspension Toughened Glass Insulator for various applications, ensuring a perfect fit for your projects.
Q2: What can I expect from your after-sales service?
Our dedicated after-sales team is committed to resolving any issues within 24 hours. We understand the importance of reliability and quick response times in maintaining your electrical infrastructure.
Q3: Why should I choose Nanjing Rainbow Electric Co. as my supplier?
With over 20 years of expertise in insulators, we offer a complete and scientific quality management system. Our commitment to quality is evidenced by our ISO9001 certification and adherence to IEC and ANSI standards, ensuring durable and safe components for your projects.
Q4: How can I contact you for further inquiries?
We welcome your questions and are eager to assist. For order requests or more information, please feel free to contact us. We look forward to building a long-term partnership with you.
