High voltage bushings play a vital role in electrical systems, ensuring the safe and efficient transmission of electricity between internal and external components of high-voltage equipment. As integral parts of transformers, circuit breakers, and other power devices, these bushings are designed to provide critical insulation, protect against environmental stresses, and facilitate the smooth transfer of electrical energy. By maintaining the integrity of electrical circuits while withstanding extreme conditions, they safeguard both equipment and personnel.
In this article, we will delve into the four primary types of high voltage bushings: OIP (Oil Impregnated Paper), RIP (Resin Impregnated Paper), RIS (Resin Impregnated Synthetic), and Composite Materials bushings. Each type is uniquely designed to meet specific operational demands, offering varying levels of insulation, mechanical strength, and environmental resistance. We will compare their composition, performance characteristics, and typical applications, helping you understand which bushing is best suited for your system. By the end, you’ll have a clearer understanding of how to select the ideal bushing for your high voltage needs, ensuring long-lasting, efficient performance.

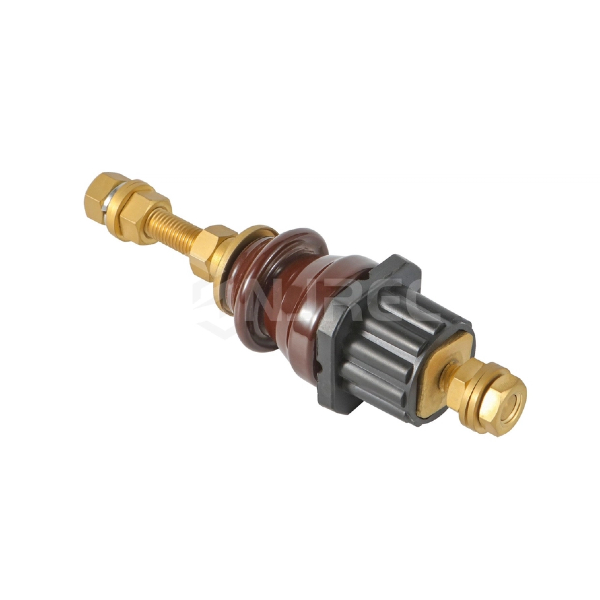

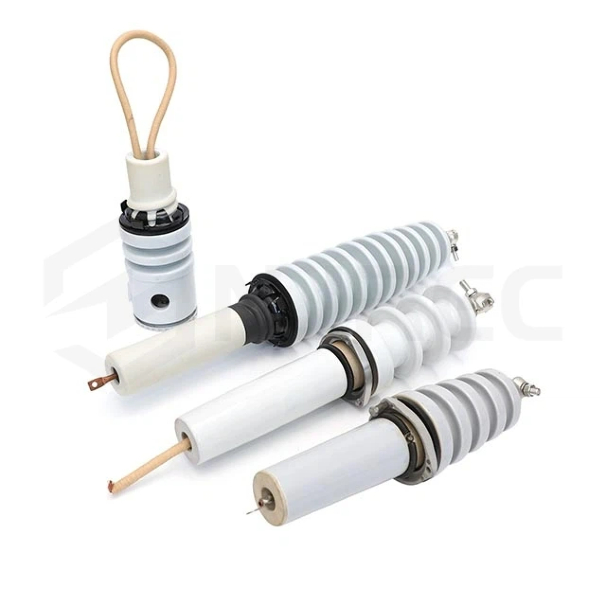

High voltage bushings are components used to insulate and transfer electrical energy between internal and external parts of electrical equipment, such as transformers, circuit breakers, and capacitors. These bushings must withstand extremely high voltages while maintaining insulation integrity. High voltage bushings are typically mounted in equipment such as transformers, where they help connect internal conductive parts (like windings) to external circuits while preventing any electrical leakage or arc formation.
Insulation: The bushing provides insulation to ensure that no electrical current escapes and no unintended short circuits occur.
Mechanical Support: It helps in securing the connection between electrical components, reducing mechanical stress on the conductor.
Environmental Protection: High voltage bushings are designed to protect electrical systems from environmental factors such as pollution, moisture, and weather extremes.
Power Transformers: They provide a safe interface between internal transformer components and external circuits.
Circuit Breakers: Bushings ensure safe disconnection and electrical isolation during fault conditions.
Switchgear: High voltage bushings are used in switchgear systems to insulate high-voltage conductors.
OIP bushings are one of the oldest and most commonly used types of high voltage bushings. These bushings consist of layers of paper that are impregnated with insulating oil. This design provides excellent dielectric strength, making OIP bushings ideal for use in high-voltage applications.
Materials: OIP bushings use a combination of paper and insulating oil. The paper is impregnated with oil to ensure high insulation properties and to dissipate heat.
Working: The oil in OIP bushings allows for effective insulation, while the paper acts as a support structure. The paper also helps absorb moisture and enhances the mechanical strength of the bushing.
OIP bushings are primarily used in:
Power transformers
Voltage regulators
High-voltage electrical equipment
High dielectric strength and temperature tolerance
Long lifespan with minimal maintenance requirements
Proven reliability in high-voltage applications
RIP bushings are a more modern variation of OIP bushings. Instead of oil, RIP bushings use resin to impregnate the paper, which offers improved dielectric properties and environmental resistance.
Materials: RIP bushings are made from paper impregnated with resin. This resin replaces the oil used in OIP bushings.
Working: The resin improves the insulation characteristics by providing better stability in extreme conditions. It also enhances resistance to moisture and environmental contamination.
RIP bushings are widely used in:
Power transformers
Substations
Switchgear systems
Better insulation performance compared to OIP bushings
Enhanced resistance to environmental conditions (moisture, pollution)
Increased reliability and operational efficiency
RIS bushings represent a further evolution in high voltage bushing technology. They are made from synthetic materials impregnated with resin, offering a higher mechanical strength and better resistance to environmental factors than RIP bushings.
Materials: RIS bushings are composed of synthetic materials (such as fiberglass) that are impregnated with resin. These materials enhance both the insulation and mechanical properties of the bushing.
Working: The synthetic materials provide additional mechanical support, making RIS bushings more durable and resistant to physical wear and tear.
RIS bushings are suitable for high-stress applications in:
Power transformers
Switchgear
Transmission systems
Excellent mechanical strength and resistance to mechanical stresses
High resistance to environmental exposure, including moisture and temperature extremes
Suitable for high-tension applications

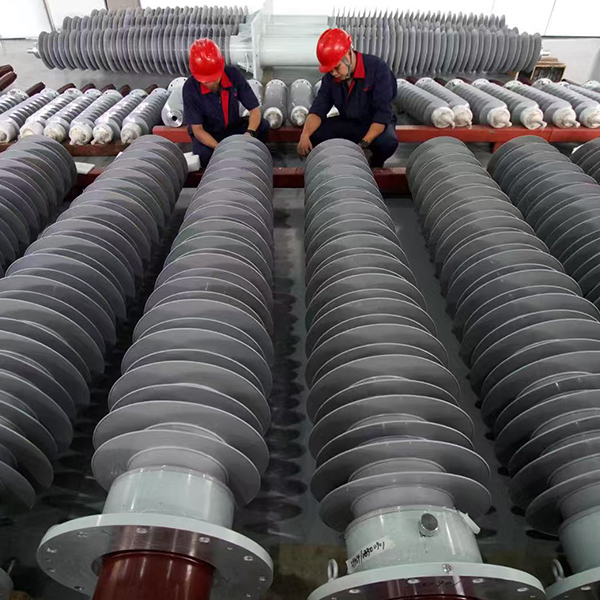

Composite bushings are relatively new in the high voltage bushing market. These bushings use a combination of fiberglass, resin, and other synthetic materials to achieve superior mechanical strength and insulation properties.
Materials: Composite bushings use fiberglass, resin, and other advanced materials such as silicone rubber to achieve optimal mechanical and electrical performance.
Working: These materials make composite bushings highly resistant to contamination, weathering, and mechanical damage.
Composite bushings are used in:
Renewable energy systems (solar, wind)
Power distribution
High-voltage substations
Light weight, yet high strength
Superior resistance to weathering, corrosion, and electrical erosion
Longer lifespan with minimal maintenance
In this section, we will compare the four types of high voltage bushings based on several key parameters: insulation performance, mechanical strength, environmental resistance, and longevity.
Feature | OIP Bushings | RIP Bushings | RIS Bushings | Composite Materials Bushings |
Insulation Performance | High dielectric strength | Improved dielectric properties | Superior dielectric properties | Excellent dielectric strength |
Mechanical Strength | Good, with oil providing support | Better mechanical strength | High mechanical strength | Very high mechanical strength |
Environmental Resistance | Moderate (susceptible to moisture) | High (better moisture resistance) | Very high (moisture & physical stress resistance) | Superior (weathering, corrosion resistant) |
Lifespan & Maintenance | Long-lasting with periodic checks | Longer lifespan than OIP | Longer lifespan, less maintenance | Longest lifespan, low maintenance |
Cost | Generally lower | Moderate | Higher than OIP and RIP | High, due to advanced materials |
Selecting the correct type of high voltage bushing for a specific application is essential to ensuring the safety, efficiency, and longevity of electrical systems. The right bushing helps reduce maintenance costs, improves system reliability, and ensures that electrical equipment can withstand the stresses of high voltage operations.
When choosing a high voltage bushing, consider the following factors:
Voltage Level: Higher voltage systems may require bushings with superior insulation properties, like RIP or composite materials bushings.
Environmental Conditions: Areas with high humidity, pollution, or extreme weather may require bushings with better environmental resistance, such as composite or RIS bushings.
Mechanical Stress: Systems that endure high mechanical loads should prioritize bushings with strong structural integrity, like RIS and composite materials bushings.
Proper installation and routine maintenance are crucial for the long-term reliability of high voltage bushings. Below are some best practices to ensure optimal performance:
Correct Placement: Ensure the bushing is properly aligned with the electrical equipment to prevent any mechanical stress on the bushing.
Sealing: Properly seal the bushing to avoid moisture ingress, especially for OIP and RIP bushings.
Voltage Testing: After installation, conduct voltage tests to ensure the bushing can withstand the expected electrical load.
Routine Inspections: Regular inspections can identify any potential issues such as oil leakage (in OIP bushings) or resin degradation (in RIP and RIS bushings).
Cleaning: Keep the bushings clean and free from contaminants that may cause electrical faults.
Replacing Old Bushings: When bushings show signs of degradation, they should be replaced to avoid system failure.
Choosing the right high voltage bushing is crucial for ensuring the safety, reliability, and efficiency of your electrical systems. Each type, whether it’s OIP, RIP, RIS, or composite materials bushings, offers unique advantages tailored to different environmental conditions and operational requirements. At Nanjing Rainbow Electric Co., Ltd. (NJREC), we specialize in providing top-quality high voltage bushings designed to meet the needs of various industries, from power transformers to switchgear and beyond.
Our extensive experience and commitment to innovation ensure that we can help you select the most suitable bushing for your specific application. Whether you're looking for enhanced mechanical strength, superior insulation, or better environmental resistance, our products offer reliable solutions that stand the test of time.
If you have any questions or need expert advice, we invite you to reach out to us. Our team is ready to assist you in choosing the right products and offering tailored support for your high voltage systems. Let us help you optimize the performance and longevity of your electrical equipment.
High voltage bushings are used to safely transmit electricity between internal and external parts of electrical equipment, such as transformers and circuit breakers, while providing electrical insulation.
OIP bushings use oil-impregnated paper, while RIP bushings use resin-impregnated paper. RIP bushings offer improved dielectric performance and environmental resistance compared to OIP bushings.
Composite materials bushings are the most durable, offering superior resistance to weathering, corrosion, and mechanical stress.
Yes, composite materials bushings are highly versatile and can be used in various high voltage applications, including power distribution and renewable energy systems.
Key factors include the voltage level, environmental conditions, mechanical stress, and the required lifespan of the bushing.
