Rated Voltage: | |
---|---|
Availability: | |
Quantity: | |

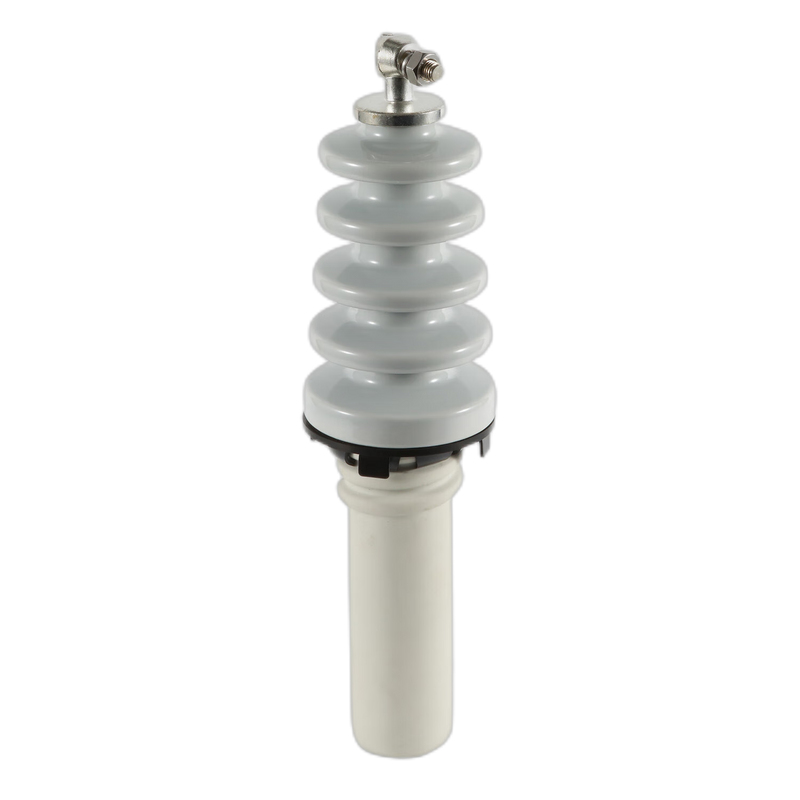

15kV/55A
NJREC
Specification
Voltage | Current | Specifications | Connector size & type | Voltage | Current | Specifications | Connector size & type |
1.2KV | 125A | 3/8" - 16 | 5/8" EYEBOLT | 1.2KV | 630A | Cu 3/4" | / |
1.2KV | 125A | 3/8" - 16 | 13/16" EYEBOLT | 1.2KV | 800A | Cu 1" | / |
1.2KV | 125A | 3/8" - 16 | 20MM EYEBOLT/FLAT | 1.2KV | 800A | 1" - 14 | 15/16" EYEBOLT |
1.2KV | 125A | 3/8" - 16 | 13/16" EYEBOLT/FLAT | 1.2KV | 800A | 1" - 14 | 1 1/4" DOUBLE EYEBOLT |
1.2KV | 208A | 1/2" - 13 | 13/16" DOUBLE EYEBOLT | 1.2KV | 1000A | Cu 1-1/4" | / |
1.2KV | 208A | 1/2" - 13 | 13/16" EYEBOLT | 1.2KV | 1250A | Cu 3/8" | / |
1.2KV | 250A | Cu 1/2" | / | 1.2KV | 1250A | Cu 3/8" | / |
1.2KV | 250A | Cu 1/2" | / | 1.2KV | 1250A | Cu 7/16" | / |
1.2KV | 250A | Cu 1/2" | / | 1.2KV | 1250A | Cu 7/16" | / |
1.2KV | 417A | 5/8" - 11 | 15/16" EYEBOLT | 1.2KV | 1500A | Cu 1-3/8" | / |
1.2KV | 417A | 5/8" - 11 | 1 1/4" DOUBLE EYEBOLT | 1.2KV | 2000A | Cu 1-3/4" | / |
1.2KV | 420A | Cu 5/8" | 1.2KV | 3150A | Cu 2" | / | |
1.2KV | 600A | 3/4" - 10 | 15/16" EYEBOLT | 1.2KV | 4000A | Cu 2" | / |
1.2KV | 600A | 3/4" - 10 | 1 1/4" DOUBLE EYEBOLT | 1.2KV | 1250A | 3/8" - 16 | 13/16" DOUBLE EYEBOLT |

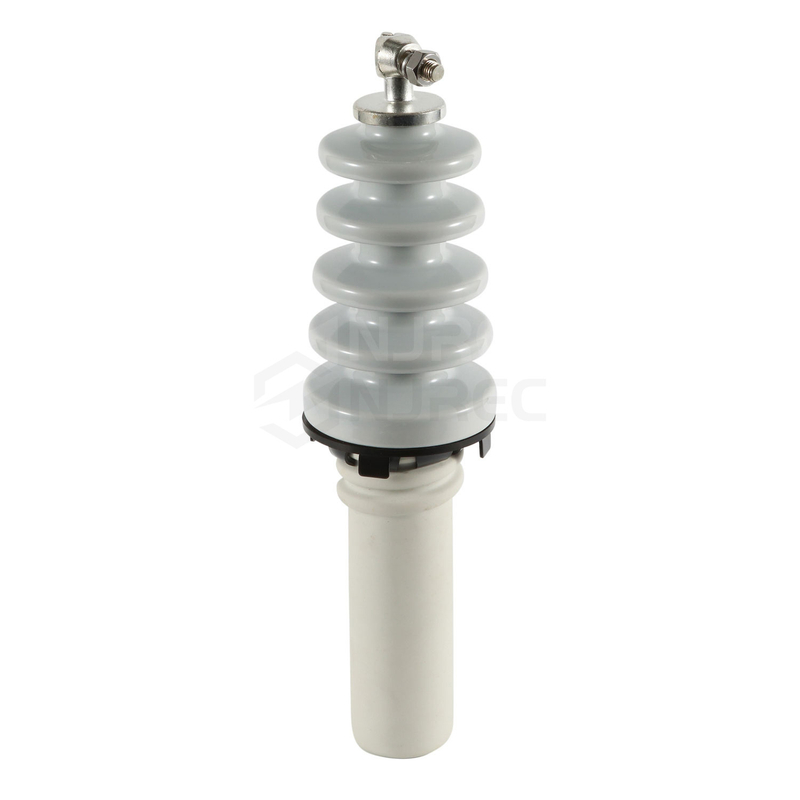

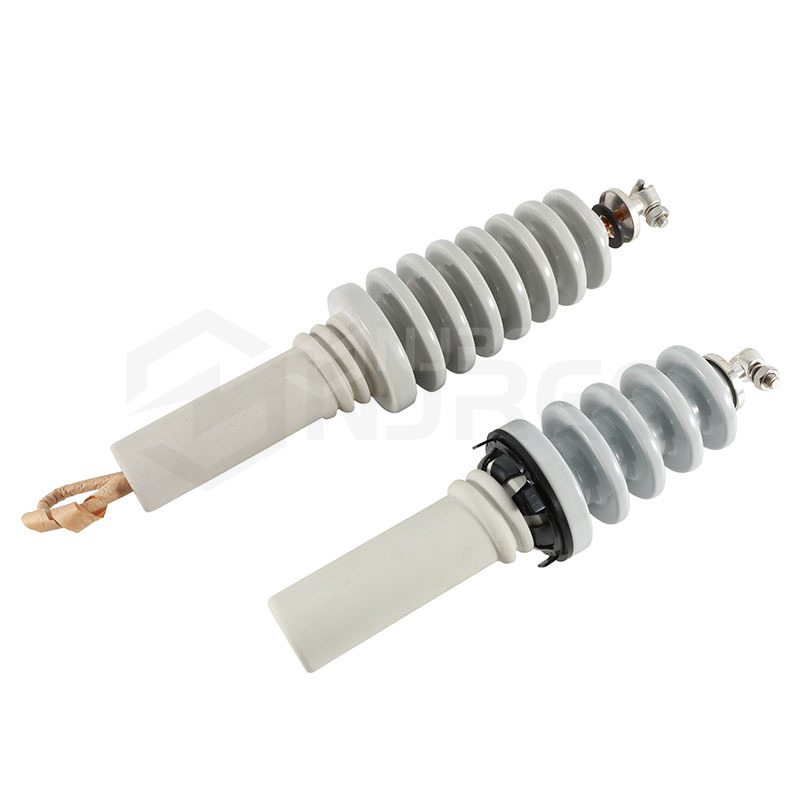

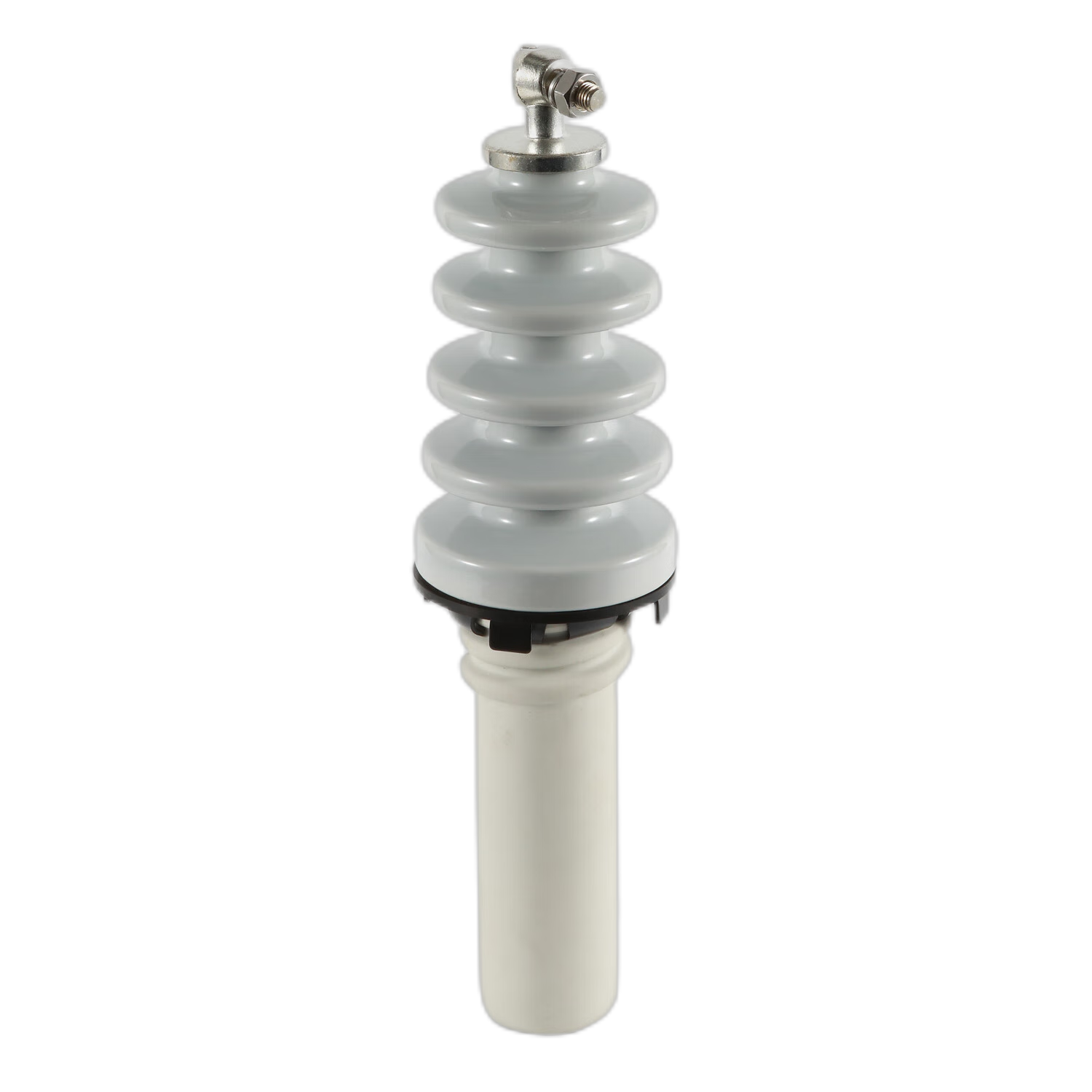

NJREC’s ANSI transformer bushings are built to meet the rigorous standards of the American National Standards Institute, making them an ideal choice for high-reliability transformer installations in North America and beyond. These bushings provide safe and efficient electrical conduction between the interior and exterior of transformers, and are suited for both high and low voltage systems. Manufactured from high-quality porcelain or epoxy materials, they offer excellent dielectric strength, thermal performance, and weather resistance
NJREC GROUP has already exported to North America, South America, Australia, Southeast Asia, Africa, Europe and 50 other countries and regions. Transformer Bushings and Insulators manufactured by NJREC correspond to the international standards as referred to their quality and are in the market at the most competitive prices.
NJREC QUALITY POLICY
- NJREC products are reliable in operation,
- NJREC promptly satisfies the customers' requirements and demands.
- After-sale maintenance and service is executed promptly and considering a high level of technical competence,
- Long-term partnership with our customers is the precedence for us,
- We follow the requirements and permanently improve the effectiveness of lSO 9001 Quality Management System.
