Selecting the right glass insulator is a fundamental step in designing or upgrading a high-voltage transmission line. A well-chosen insulator ensures the reliable delivery of power, minimizes outages, and extends the life of infrastructure in challenging environments. However, insulator selection involves much more than simply matching voltage levels—factors like mechanical tension, environmental exposure, insulation type, and certification standards all play critical roles.

At Nanjing Rainbow Electric Co., Ltd. (NJREC), we provide a full range of standard and customized suspension glass insulators and other models to meet the technical needs of transmission projects worldwide. Whether you're building in coastal zones, mountainous regions, or industrial corridors, NJREC offers high-performance solutions designed to meet international standards and the realities of field conditions.

What Factors Drive Insulator Selection?

When specifying a glass insulator for a transmission line, several variables must be evaluated to ensure compatibility, safety, and long-term reliability:

Voltage level: Determines insulation requirements and the number of discs per string.

Mechanical tension: Influences the required load-bearing capacity and vibration resistance.

Environmental conditions: Includes pollution levels, humidity, salinity, and temperature fluctuations.

Compliance with standards: Ensures the product meets IEC or ANSI norms for safety and performance.

Each of these factors can affect the type of glass insulator needed, as well as the specific model best suited for the application. For example, a 220 kV line running through a coastal industrial area will require a different insulator configuration than a 66 kV line crossing dry farmland.

NJREC supports project planners, engineers, and utility operators by offering expert guidance and a complete product catalog with standard and specialized insulator types, ensuring the best fit for every project.

How Does Voltage Level Affect Design Choice?

Voltage is one of the most important parameters when choosing a suspension glass insulator. The higher the line voltage, the greater the insulation required between the energized conductor and the grounded tower structure.

Typically, glass insulators are used in string formations, where multiple disc units are assembled to provide adequate insulation. For instance:

10 kV–35 kV lines may use 1 to 2 standard discs like U40 or U70.

110 kV–220 kV lines commonly require 4 to 8 discs such as U120 or U160.

500 kV–1000 kV UHV lines can involve 15 to 30 discs like U210 or U300 series models.

Each disc adds approximately 11–15 kV of flashover voltage, depending on environmental conditions and creepage distance. The insulator string must not only match the system voltage but also exceed it with a safety margin to prevent breakdown during overvoltage events or adverse weather.

NJREC provides a wide range of suspension glass insulators tailored for various voltage classes, and each unit is designed with the necessary creepage distance, arcing distance, and insulating strength for its intended voltage level.

What Mechanical Strength Is Required?

Mechanical load-bearing capacity is another critical factor in glass insulator selection. High-voltage lines, especially those spanning long distances or exposed to strong winds, exert significant mechanical tension on each insulator. Additionally, dynamic forces like vibration, galloping, and line icing can cause fatigue over time.

NJREC insulators are available in load ratings from 40 kN to 550 kN, with the most commonly used models being:

U70 (70 kN) for distribution-level lines.

U120/U160 (120–160 kN) for standard transmission.

U210/U300 (210–300 kN) for high-tension and EHV lines.

Special applications such as long-span river crossings or high-altitude transmission corridors may require higher mechanical strength and more robust fittings.

In addition to standard mechanical ratings, NJREC can supply customized insulators with enhanced vibration resistance, shock absorption, and fatigue durability. Each unit is mechanically tested to ensure it meets both client specifications and the demands of real-world operation.

How Do Environmental Conditions Impact Performance?

Environmental exposure can significantly affect the performance and longevity of glass insulators. In particular, pollution, fog, salt spray, and temperature extremes can reduce insulation strength and increase the risk of flashover.

For polluted or marine areas, NJREC offers anti-pollution glass insulators like U120BP or U210BP. These units feature:

Extended creepage distances.

Hydrophilic glass surfaces that resist contamination buildup.

Specialized shed profiles to facilitate self-cleaning by wind or rain.

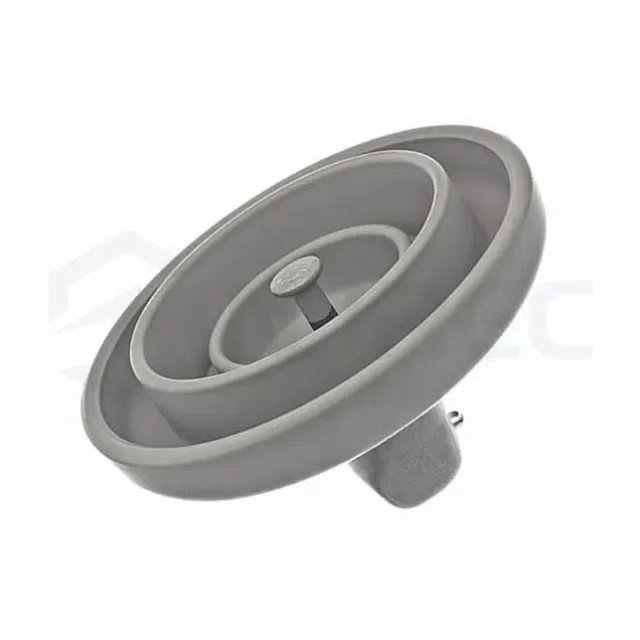

In cold climates or foggy zones, condensation and icing may lead to flashover or structural damage. NJREC addresses these issues with anti-fog insulators and RTV-coated versions that maintain hydrophobicity and electrical insulation under wet or icy conditions.

Temperature cycling is also a concern. Standard polymers can crack or age under extreme heat or UV exposure, but tempered glass insulators maintain their strength and dielectric properties even in deserts, tundra, or mountainous regions.

Whether your transmission line passes through an industrial zone or a snow-prone valley, NJREC has glass insulator models engineered to handle the most demanding environments.

Why Suspension vs Pin vs Post Insulators?

Different sections of a transmission or distribution network may require different insulator configurations. Here's how to decide between suspension, pin, and post types:

Suspension insulators: The most common type for transmission lines above 35 kV. These are used in strings to suspend conductors from towers. Models like U70CN, U120, or U210 offer high flexibility and strength.

Pin-type insulators: Typically used on lower-voltage distribution lines (below 33 kV). They are directly mounted to crossarms and support the conductor with a single piece.

Post insulators: Used for substations or compact tower designs where vertical support and rigidity are needed. They are designed to handle mechanical compression and are often made with higher strength requirements.

NJREC offers a full selection of insulator types for each application scenario, allowing utilities to create a cohesive system using the best-suited designs for every segment of the grid.

What Certification & Testing Should I Check?

When choosing any electrical component—especially for high-voltage applications—compliance with recognized testing standards is non-negotiable. NJREC glass insulators are certified to meet or exceed international norms including:

IEC 60383, IEC 61211, and IEC 60433 for mechanical and electrical performance.

ANSI C29.1, C29.2, and others for North American applications.

Every batch of insulators undergoes rigorous testing in our facility, including:

Mechanical tensile testing.

Dry and wet power frequency withstand tests.

Impulse voltage and lightning simulation.

Radio interference and corona discharge assessments.

Each insulator is traceable and supported by a complete test report and quality certificate, ensuring the highest level of accountability and performance for your transmission project.

Conclusion

Selecting the right glass insulator for your transmission line is essential for safe and reliable power delivery. From voltage compatibility and mechanical strength to environmental protection and regulatory compliance, NJREC’s comprehensive product lineup offers dependable solutions for every condition and specification. Our suspension glass insulators, anti-pollution models, and specialized designs are trusted by utilities around the world to meet the growing demands of high-voltage infrastructure.

If you’re planning or upgrading a power line and need expert support to specify the best insulator type, contact NJREC today for technical consultation and product recommendations tailored to your project.
