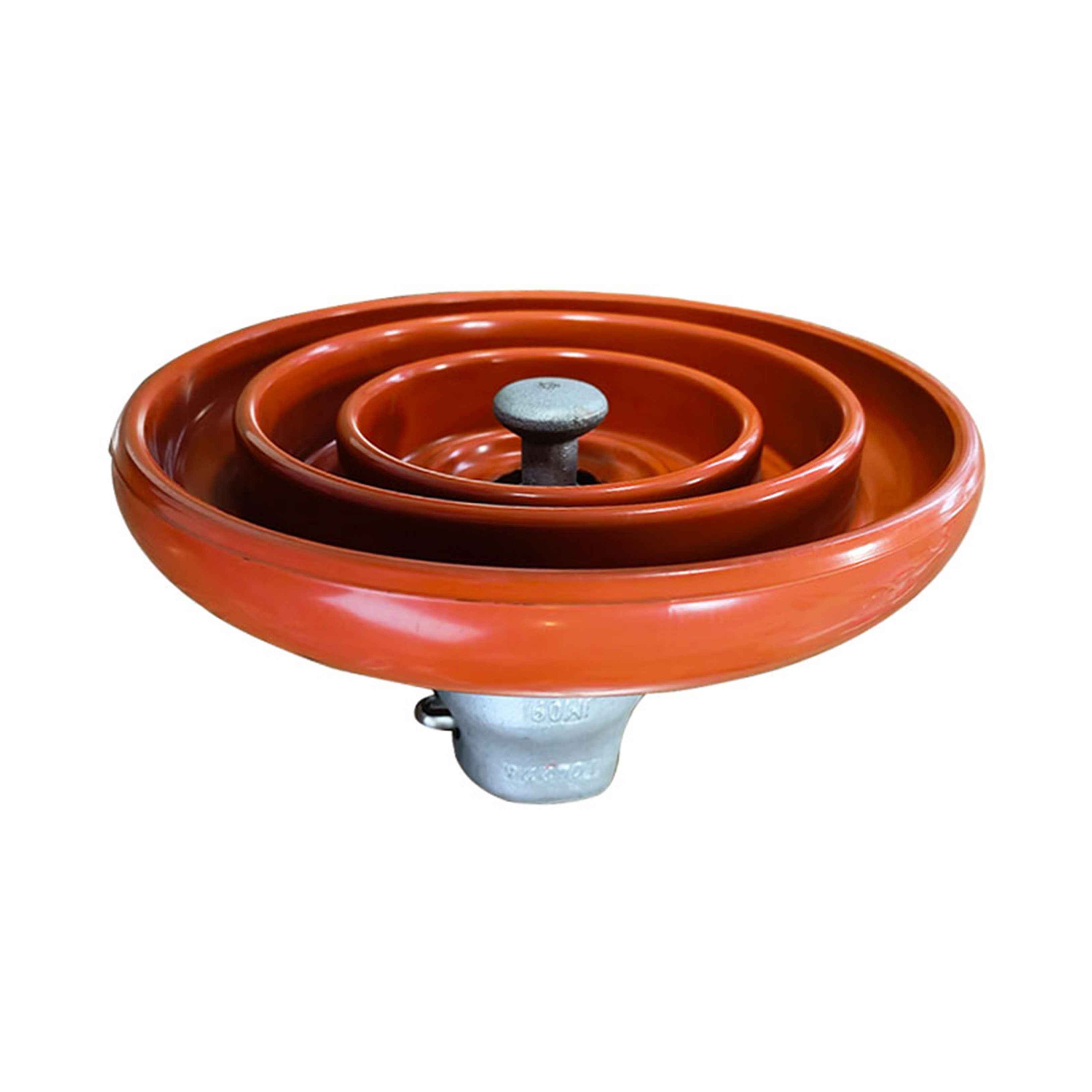

U120BP RTV Coated Glass Insulator

This is a must - have for pro lighting pros. An outdoor - ready, waterproof 480W laser beam moving head light. Runs on 110V - 240V AC, 50/60Hz. Boasts a 300W (or optional 480W) laser source, 20,000 - hour lifespan. Delivers dynamic, sharp beams. Features 14 gobos, 14 colors, 6 - color rainbow wheel, 15 - facet prism. Perfect for impactful outdoor shows, events.

Availability:

Quantity:



Inquire Add to Basket

Brand:
NJREC

glass insulators Power Transmission Insulators Electrical insulators High-voltage Insulators Transformer bushings

Product Parameters

Product Introduction

Glass insulators play a crucial role in power transmission and distribution systems. They are designed to support and insulate electrical conductors, ensuring the safe and efficient flow of electricity.

Specification

Type	Spacing(mm)	Diameter (mm)	Creepage Distance(mm)	Coupling	Mechanical Faiing Load(kN)
U40B	110	175	190	11	40
U70BS	127	255	320	16	70
U70BL	146	255	320	16	70
U100BS	127	255	320	16	100
U100BL	146	255	320	16	100
U120B	146	255	320	16	120
U120BS	127	255	320	16	120
U160BL	170	280	400	20	160
U160BS	146	280	400	20	160
U210B	170	280	400	20	210
U240B	170	280	400	24	240
U300B	195	330	490	24	300
U400B	205	360	550	28	420
U550B	240	380	620	32	550
U70BLP	146	280	450	16	70
U100BLP	146	280	450	16	100
U120BP	146	280	450	16	120
U160BLP	170	320	550	20	160
U160BMP	155	320	550	20	160
U160BSP	146	320	550	20	160
U210BP	170	320	550	20	210
U240BP	170	320	550	24	240
U300BP	195	380	690	24	300
U420BP	205	380	620	28	420
U550BP	240	390	710	32	550

Application

Widely used in transformer bushings, transmission lines, and substations. They provide essential insulation and mechanical support, enabling stable power transmission even in harsh environmental conditions. Whether in high - voltage long - distance transmission or substation internal wiring, they are indispensable components.

Product Application

Competitor Comparison

When comparing with similar products in the market:

Performance Diversity: Some competitors focus on producing insulators with a narrower range of parameters, suitable for specific low - voltage or light - load scenarios. In contrast, our range of parameters is more comprehensive, covering from low - load to extremely high - load applications, meeting diverse project needs.
Customization Flexibility: A few competitors have limited customization capabilities. Our products can be customized in terms of specifications (such as spacing, diameter adjustments) and packaging. We can either follow your detailed drawings or design according to your specific requirements, whether you need standard - size insulators or special - designed ones for unique projects.
Certification and Quality Assurance: While most competitors also have basic quality certifications, our products not only have ISO9001 certificates and detailed test reports but also adhere to strict quality control throughout the production process. This ensures that our insulators have better long - term stability and reliability in different environmental conditions, reducing the risk of failure during operation.

Certificate

NJREC has built a good reputation for high quality products, timely delivery and responsive customer service. And has kept its development process, considering his responsibilities and missions about being one of the esteemed and respectful companies in the transformer bushing, transmission line and substation industry.

7-2

Purchase and Cooperation

Payment Terms: We accept T/T (30% deposit, 70% balance against B/L copy preferred) and 100% irrevocable L/C at sight, providing flexible financial options to suit different business models.
Packaging: Standard export packing is available, and we also offer customized packing solutions to ensure the safe transportation of products, whether for long - distance ocean shipping or domestic land transport.
OEM/ODM: We welcome OEM/ODM cooperation. You can put your logo on the products, and we will ensure the product quality and design meet your brand standards. Our sales team will respond to your inquiries within 24 hours, and we provide full - range technical support, from pre - sales consultation on product selection to after - sales service on installation and maintenance guidance.

FAQ

Q1. What's the payment term ?

A. T/T and L/C is acceptable and TT will be more appreciated. 30% deposit, 70% balance against B/L copy.Or 100% irrevocable LC at sight.

Q2. How to buy your ideal products?

A. You can provide us with your drawings with specifications, we will produce as per your drawing.Or we can design as your requirements if you do not have a clear plan.

Q3. What is your Packing/Package ?

A. Standard export packing or Customized packing as your request.

Q4. Would you accept to use our logo ?

A. OEM/ODM can be acceptable.

Q5. What kind of certificate you have ?

A. Our company already achieve ISO9001 certificates and we have test reports.

Q6. What else can I do for you?

A. Our salesmen will reply your inquiry within 24 hours. We can give you any support on the technique & other aspects.
