Incorrectly specifying the number of insulators for a transmission line leads to two costly extremes. Under-insulation causes devastating flashovers and widespread grid failures. Conversely, over-insulation wastes capital expenditure and places excessive weight on transmission towers. Determining the correct string length requires a delicate balance. You must weigh the standard 11kV base calculation against real-world environmental factors. Engineers also have to account for specific mechanical load requirements and long-term material lifecycles.
This guide provides a clear framework to solve these challenges. We will show you how to calculate exact string requirements and select accurate mechanical ratings. Procurement teams will also learn how to evaluate supplier credibility for successful grid-scale deployments.

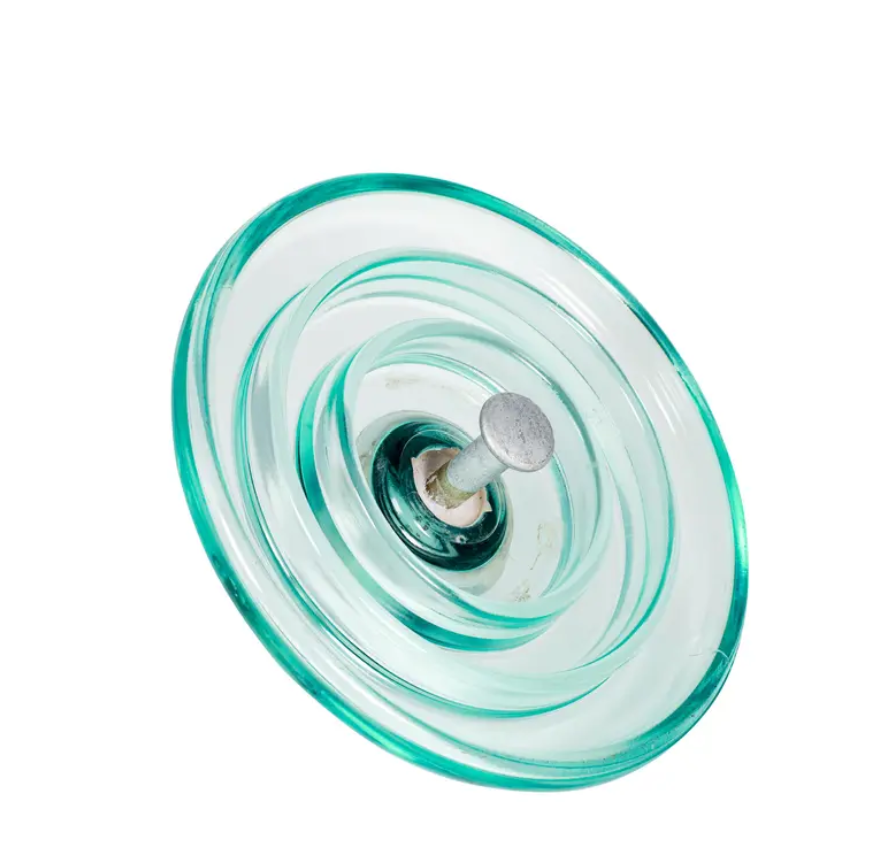

The baseline requirement is calculated using phase voltage (Line Voltage ÷ √3), with each standard disc insulator rated for roughly 11kV.
Real-world deployments require a safety factor of 1 to 2 additional discs to account for pollution, altitude, and transient overvoltages.
Mechanical load capacity is just as critical as electrical rating; choosing between a 70kN Glass Insulator and a 120kN Glass Insulator depends on span length, conductor weight, and environmental stress.
Visual inspection advantages and long-term durability make the standard glass insulator the preferred choice for high-voltage and extra-high-voltage (EHV) transmission networks.
Electrical engineers always base insulator counts on phase voltage rather than line voltage. The physical insulators separate the live conductor wire from the grounded transmission tower. Because the tower acts as ground, the insulator string only experiences phase-to-ground voltage. To find the phase voltage, you simply divide the total line voltage by the square root of 3 (√3 or 1.732).
The standard formula for estimating string length is: (Line Voltage / √3) / 11kV. This equation forms the bedrock of transmission line engineering worldwide. It offers a standardized starting point before you adjust for physical environment factors.
Why do grid designers rely on the 11kV metric? Historically, a single standard disc insulator possesses an 11kV nominal rating. Manufacturers design these units to withstand this specific phase-to-ground voltage under normal operating conditions. Grid operators universally accept this baseline rating. It simplifies initial planning and ensures cross-compatibility between different regional utility networks.
Let us walk through a practical calculation for a standard 132kV transmission network. First, determine the phase voltage by dividing 132kV by 1.732. This gives you a phase voltage of 76.2kV. Next, divide this result by the 11kV rating of a single disc.
The calculation is: 76.2 / 11 = 6.9.
Since you cannot install a fraction of an insulator, you always round up to the nearest whole number. In this scenario, the baseline requirement is exactly 7 discs. Keep in mind this number represents the absolute minimum electrical requirement before applying safety factors.
We must emphasize a crucial engineering reality. The 11kV rule provides a theoretical baseline only. Relying solely on this mathematical calculation without field adjustments compromises grid compliance. You will almost certainly face flashovers if you ignore local environmental stressors. The baseline tells you where to start, but environmental variables dictate where your final count ends.
Airborne contaminants drastically lower the dielectric strength of an insulator string. Coastal salt fog, heavy industrial pollution, and aggressive desert dust coat the outer sheds of the insulators. When moisture hits this contaminated layer, it creates a conductive path over the surface. To counter this, engineers calculate a specific creepage distance.
Heavily polluted areas often demand a creepage distance between 25mm/kV and 31mm/kV. To meet this extended creepage requirement, transmission planners typically add 1 to 3 additional discs to the baseline calculation. This ensures the leakage path remains long enough to prevent flashovers during damp conditions.
Altitude plays a massive role in electrical insulation. As elevation increases, air density drops. Thinner air offers lower dielectric strength, meaning electricity can arc across gaps much easier. High-altitude deployments above 1,000 meters require longer insulator strings to compensate for this weaker insulation medium.
Utility guidelines usually mandate specific derating factors for high elevations. For every 100 meters above the 1,000-meter threshold, you must extend the string length proportionally. Failure to add extra discs in mountain ranges invites guaranteed flashovers during standard operations.
Transmission lines do not operate in a perfect vacuum. They routinely experience massive voltage spikes known as transient overvoltages. Switching surges occur when circuit breakers open or close. Lightning strikes nearby lines and induces sudden energy waves. A baseline string cannot handle these extreme spikes.
Grid engineers solve this by adding a safety margin. You generally add 1 or 2 extra discs specifically to manage these transient events. This safety buffer allows the string to absorb temporary surges without compromising the physical hardware or interrupting power delivery.
Table 1: Impact of Environmental Variables on String Length
Environmental Variable | Physical Condition | Design Adjustment (Safety Margin) |
|---|---|---|
High Pollution / Coastal Zones | Salt or dust creates a conductive surface layer. | Add 1 to 3 extra discs to increase creepage. |
High Altitude (>1,000 meters) | Lower air density reduces dielectric strength. | Add discs proportionally per local utility codes. |
Transient Surges | Lightning strikes and switching events cause voltage spikes. | Add 1 to 2 extra discs to absorb peak surges. |
For quick reference, the industry relies on established averages for typical grid infrastructure. These counts include standard safety margins for moderate environments. Use this numbered list as a rapid field-check tool when verifying line designs.
33kV Lines: Typically require 3 discs.
66kV Lines: Typically require 5 to 6 discs.
132kV Lines: Typically require 9 to 10 discs.
220kV Lines: Typically require 14 to 16 discs.
400kV Lines: Typically require 22 to 24 discs.
Contextual Warning: We must reiterate that these numbers represent broad industry averages. Final engineering specifications must dictate exact string configurations based on local utility codes. Never finalize a purchase order based solely on average estimates. Always defer to the exact mechanical and electrical studies produced for your specific route.
Electrical capacity is only half the equation. You must also evaluate mechanical strength. Transmission towers use two primary types of configurations: suspension strings and tension strings. Suspension strings hang vertically. They primarily support the downward weight of the conductor and limited wind loads. Tension strings run horizontally at dead-end towers or sharp line angles. They bear massive horizontal pulling forces from the entire length of the heavy conductor span.
A 70kN Glass Insulator offers a specified failing load of 70 kilonewtons. We recommend these units primarily for standard suspension applications. They perform perfectly on sub-transmission lines and high-voltage networks carrying lower-weight single conductors. Using a 70kN unit on straight-line vertical suspension towers keeps infrastructure costs manageable while fully satisfying mechanical codes.
Tougher environments demand much higher structural integrity. A 120kN Glass Insulator becomes mandatory under heavy stress conditions. You must upgrade to 120kN ratings in heavy icing zones where ice coats the wires and triples their weight. Long river crossings also create massive tension loads. Furthermore, multi-conductor bundles on 220kV+ networks and dead-end tension towers require at least 120kN capacity to prevent the line from snapping.
We strongly warn against underspecifying mechanical loads to save upfront project costs. Trying to stretch a 70kN unit into a high-tension scenario drastically increases the risk of catastrophic string failure. When strong winds blow or winter ice accumulates, weak insulators will shatter under the strain. A single mechanical failure drops live wires to the ground, triggering massive safety hazards and expensive emergency repair operations.

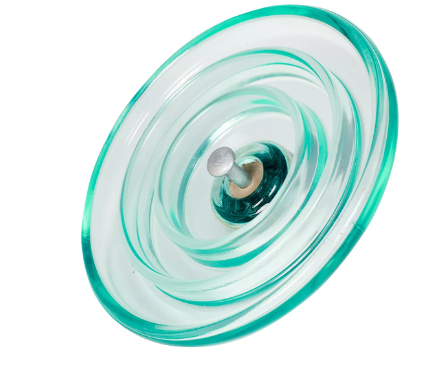

Material choices heavily influence grid maintenance operations. The primary operational advantage of toughened glass is its visual failure mode. If a glass unit fails electrically or mechanically, the glass shell shatters completely. The remaining steel stub holds the line securely, preventing a drop. This intentional shattering mechanism allows drone or helicopter patrols to identify faults instantly. Maintenance teams spot the missing disc from the air without needing specialized electrical testing equipment.
We must contrast glass hardware against traditional porcelain. Porcelain units frequently suffer from hidden internal micro-cracks. A lightning strike might puncture the porcelain internally, completely compromising the string's insulation. However, the unit looks perfectly intact from the outside. Grid teams cannot find these hidden punctures visually. The line remains dangerous and susceptible to flashovers until workers test every individual disc manually.
Investing in a Standard Glass Insulator provides a highly verifiable long-term asset. Glass does not age like polymer or composite alternatives. Polymeric units degrade under intense UV light, often becoming brittle or tracking on the surface over time. Glass maintains its dielectric strength and mechanical properties predictably over a 40 to 50-year lifespan. This predictable aging process offers incredible peace of mind for utility procurement teams managing large-scale networks.
You must rigorously vet suppliers before committing to large orders. Ensure the supplier strictly adheres to global manufacturing codes. Check their documentation for compliance regarding IEC 60383 and ANSI C29.2 standards. These rigorous frameworks dictate exact dimensional tolerances and performance baselines. Products lacking these certifications present enormous operational risks to your infrastructure project.
Do not accept vague assurances about product quality. Look for suppliers that provide transparent type test reports. Demand to see routine thermal-mechanical testing data. The factory should simulate extreme temperature swings combined with heavy mechanical pulling. Furthermore, require verifiable puncture resistance data. High-quality manufacturers gladly supply detailed QA reports documenting their batch-testing procedures.
Large EPC (Engineering, Procurement, and Construction) projects require massive volumes of hardware. Evaluate the vendor's total capacity to deliver bulk orders. A reliable supplier must manufacture varying kN ratings simultaneously without lead-time blowouts. Delays in insulator delivery will halt entire stringing operations, costing contractors thousands of dollars daily in idle labor. Choose partners with proven scalable supply chains.
Calculating string length goes far beyond simple division. It demands a complex matrix of electrical requirements, environmental safety factors, and mechanical load calculations. The baseline 11kV rule gives you a starting point, but pollution, altitude, and line tension determine the final configuration.
To ensure long-term grid reliability, follow these action steps:
Always add 1 to 3 safety discs for coastal, industrial, or high-altitude environments.
Align your theoretical disc count with rigorous mechanical selection, choosing 120kN units for high-tension and heavy-load spans.
Specify toughened glass to enable rapid visual drone inspections and eliminate hidden puncture risks.
Partner strictly with manufacturers who provide certified, verifiable testing data aligned with IEC standards.
A: Insulators physically isolate the live conductor from the grounded steel tower. Because the tower acts as a ground point, the insulators only experience phase-to-ground voltage. Dividing the line voltage by the square root of 3 gives you this precise phase voltage, which dictates the actual electrical stress the string must resist.
A: Yes, you can use 70kN units for standard suspension towers carrying light single conductors on a 220kV line. However, tension towers, sharp angles, and dead-end points on that exact same line will likely require 120kN or higher to handle horizontal pulling forces.
A: Engineers calculate the required specific creepage distance based on local pollution levels (often 25mm/kV to 31mm/kV). You then divide this total required distance by the creepage distance of a single disc. This usually results in adding 1 to 3 extra discs to prevent surface flashovers.
