Selecting the correct electromechanical failing load (EMFL) for transmission lines is a delicate balance. Over-specifying inflates project CAPEX and tower weight unnecessarily. Conversely, under-specifying risks catastrophic line dropping and severe grid failure. Engineers and procurement teams must align insulator ratings carefully. They have to match specific tower positions, conductor bundles, and environmental load profiles accurately. Relying on needlessly expensive high-tonnage units is no longer a viable default strategy. Grid reliability relies on exact engineering matches rather than guesswork. In this article, we provide an evidence-based framework for evaluating these critical components. You will learn how to choose between 70kN, 120kN, and 160kN units effectively. Our guide relies on operational realities and international standards like IEC and ANSI to inform your decision. You can apply these principles immediately to your next major transmission project.
70kN units are the industry standard for standard suspension (straight-line) towers on lightweight or medium-voltage distribution/transmission lines.
120kN units serve as the versatile middle ground, handling moderate tension requirements, angle towers, or heavy-duty suspension in higher voltage lines.
160kN (and above) units are mandatory for tension/dead-end towers, long-span river crossings, and Extra High Voltage (EHV) bundles subjected to severe wind or ice loads.
The final selection must account for a minimum safety factor (typically 2.5 to 3.0), meaning a 120kN insulator is strictly designed for a maximum working load of 40kN.
Electromechanical Failing Load (EMFL) defines the ultimate physical limit of an insulator. Manufacturers test glass insulator mechanical strength by applying simultaneous mechanical tension and electrical stress. Industry professionals rate these units by mechanical load rather than just voltage. Voltage ratings dictate electrical clearances and creepage distances. However, the mechanical rating dictates physical survival under immense structural strain. The insulator string must physically bear the massive weight of conductor cables.
You cannot operate transmission hardware at its maximum rated load. International standards dictate strict safety margins. IEC 60383 and NESC guidelines require engineers to apply a safety factor. This factor usually ranges between 2.5 and 3.0. Therefore, working loads represent only a fraction of the rated capacity. If you select a 100kN rated unit, it safely carries roughly 33kN of continuous working load. Exceeding this working limit invites micro-fractures and premature degradation.
Choosing a higher strength rating creates a massive financial ripple effect. Upgrading from a 70kN unit to a 160kN unit impacts your entire structural design. High-tonnage units cost significantly more per disc. Furthermore, they demand heavier string hardware. You must utilize larger ball and socket dimensions. The towers themselves require far more robust cross-arms to support the added string weight. This inflates your initial capital expenditure rapidly. Stronger is not inherently better; accuracy is what guarantees reliability.

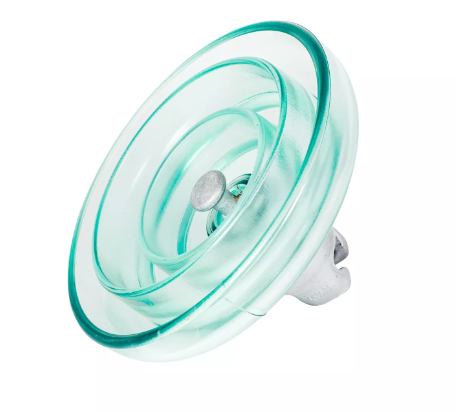

The 70kN Glass Insulator remains the workhorse of modern distribution and lightweight transmission networks. It offers exceptional performance when deployed in the correct environment. Engineers specify this unit primarily for tangent towers. We also call these suspension towers. On these structures, the insulator string hangs vertically downward. It only supports the downward gravity weight of the conductor. It also handles limited transverse wind loads.
You will typically find 70kN units utilized across 11kV to 132kV networks. They pair perfectly with single conductors or very lightweight twin bundles. These configurations generate relatively low vertical tension. Therefore, the 70kN rating provides an adequate and compliant safety margin.
However, you must respect the physical limitations of this hardware. These units are completely unsuitable for dead-end applications. They cannot handle high-angle tension loads either. A common engineering mistake involves retrofitting 70kN strings into aging networks. If local authorities update their regional ice-loading standards, older 70kN strings become highly susceptible to failure. Heavy ice accumulation easily pushes the working load past the safe threshold. Furthermore, these units pair strictly with standard 16mm ball and socket couplings. You cannot mix them safely into heavier hardware assemblies.
Engineers often require a pragmatic step up from standard suspension units. The 120kN Glass Insulator delivers exactly this versatility. It serves as the ultimate middle ground for mixed-use transmission lines. We see this profile deployed heavily on light angle towers. It also handles heavy-duty suspension duties across exceptionally long spans. For lower-voltage networks, you can safely use it on tension or strain towers.
This rating dominates the 132kV to 220kV transmission infrastructure. It provides crucial environmental adjustments for challenging climates. It is the preferred upgrade choice when leaving mild geographic regions. If a route crosses areas categorized by moderate ice buildup, you need this strength. Frequent high-wind events also justify the jump to 120kN.
This unit offers an outstanding cost-to-performance ratio. It delivers a substantial safety margin without the premium price tag of extreme-tonnage insulators. You avoid the excessive physical weight that plagues heavy-duty designs. Hardware sizing becomes slightly more complex at this tier. The 120kN rating acts as a transition point. Depending on the specific string design, it requires either 16mm or 20mm couplings. You must verify coupling compatibility before finalizing your procurement orders.
Certain transmission scenarios demand absolute maximum durability. The 160kN Glass Insulator handles extreme mechanical stress effortlessly. Engineers reserve these robust units for tension, dead-end, and heavy angle towers. In these positions, the insulator string pulls horizontally. It no longer just supports vertical gravity weight. It must bear the full, unrelenting longitudinal tension of the conductor cables.
You will specify these units for 220kV, 400kV, and Extra High Voltage (EHV) lines. EHV systems utilize heavy multi-conductor bundles. These bundles generate massive pulling forces. Extreme geographic scenarios also mandate the 160kN profile. Mountainous terrain introduces severe elevation changes and brutal wind shear. Heavy ice load districts add thousands of pounds to the spans. Critical river and highway crossings require flawless reliability to protect public safety.
Implementation requires careful structural planning. You must utilize heavy-duty string hardware exclusively. These units require standard 20mm couplings to prevent sheer failure. The physical string weight increases drastically compared to lighter models. You must mandate a comprehensive structural verification of the tower body before installation. For ultra-high voltage (UHV) projects, even 160kN might fall short. Extreme multi-conductor bundles often require massive 210kN, 300kN, or even 550kN variants.
Mechanical Rating | Primary Tower Function | Typical Voltage Class | Standard Coupling Size | Ideal Operating Environment |
|---|---|---|---|---|
70kN | Tangent / Suspension | 11kV to 132kV | 16mm | Mild climates, low wind/ice, vertical loads. |
120kN | Light Angle / Heavy Suspension | 132kV to 220kV | 16mm or 20mm | Moderate ice accumulation, frequent high winds. |
160kN+ | Dead-end / Tension / Heavy Angle | 220kV to 400kV (EHV) | 20mm | Mountainous terrain, heavy ice, river crossings. |
Selecting the optimal Glass Insulator requires a systematic engineering approach. We recommend following a strict four-step framework to guarantee project safety and budget efficiency.
Determine Tower Function (Suspension vs. Tension). This remains your most critical dividing line. Suspension towers handle vertical weight bearing exclusively. Tension towers handle horizontal load pulling. You must categorize every tower on your route before selecting insulators.
Calculate Maximum Working Load (MWL). You cannot estimate this metric. Factor in the exact span length between towers. Calculate the total conductor weight per meter. Finally, overlay your climatic extreme variables. You must account for maximum historic wind velocities and worst-case ice accumulation scenarios.
Apply the Statutory Safety Factor. Never use the MWL as your procurement specification. You must multiply the MWL by your regional standard multiplier. Common multipliers are x2.5 or x3.0. This calculation reveals your minimum required EMFL.
Hardware Compatibility Check. Validate your entire assembly. Ensure the specified mechanical strength aligns perfectly with your compatible pin sizes. You must also confirm fitment alongside specialized dampening hardware and corona rings. Mismatched hardware introduces fatal weak points.
You must actively defend your project against misleading paper specifications. Data-sheet claims mean very little without independent validation. We urge procurement teams to demand certified type testing reports. These reports must originate from recognized, independent third-party laboratories. Relying solely on internal manufacturer data introduces unacceptable grid risks.
Crucial Factory Acceptance Tests (FAT) verify actual field survivability. You should closely monitor the thermal mechanical performance tests. Technicians apply immense physical load while rapidly cycling temperatures between extreme heat and freezing cold. This exposes fatal manufacturing flaws in the glass or cement. You must also review residual strength tests. Technicians intentionally shatter the glass disc during this test. The remaining stub must still hold the rated mechanical load safely without dropping the line.
Supply chain realities dictate your scheduling strategy. High-tonnage insulators exceeding 160kN possess longer manufacturing lead times. Producing massive glass profiles requires slower cooling cycles to ensure structural integrity. Furthermore, heavier units face far stricter batch-testing requirements than high-volume 70kN units. You must factor these prolonged lead times into your project milestones.
Selecting insulator strength is never a scenario where "better is always stronger." Over-engineering wastes massive amounts of capital.
You must match the EMFL strictly to the exact physics of each individual tower location.
Always finalize your climatic load data before calculating your required safety margins.
Consult directly with manufacturers to run comprehensive string-level simulations.
Complete these verifications entirely before issuing formal procurement tenders to avoid costly change orders.
A: No. Using a 70kN unit on a tension tower violates standard engineering safety codes. Even on short spans, tension towers pull conductors horizontally. This creates immense longitudinal stress during temperature drops or sudden wind gusts. Under-speccing tension hardware risks catastrophic line dropping. Always use appropriately rated units for horizontal dead-end applications.
A: Mechanical strength and electrical performance remain independent variables. A 160kN unit does not inherently stop electrical leakage better than a 70kN unit. However, higher-strength units feature larger physical profiles. This larger geometry naturally alters dry and wet flashover distances. It may also provide slightly longer creepage distances, but you must verify electrical ratings separately.
A: You should never mix different EMFL ratings within a single insulator string. However, standard practices allow mixing across different positions on the same tower. For parallel tension strings or V-strings, all units sharing a specific load path must match identically. Mixing ratings in parallel assemblies causes dangerous, uneven load distribution and premature hardware failure.
