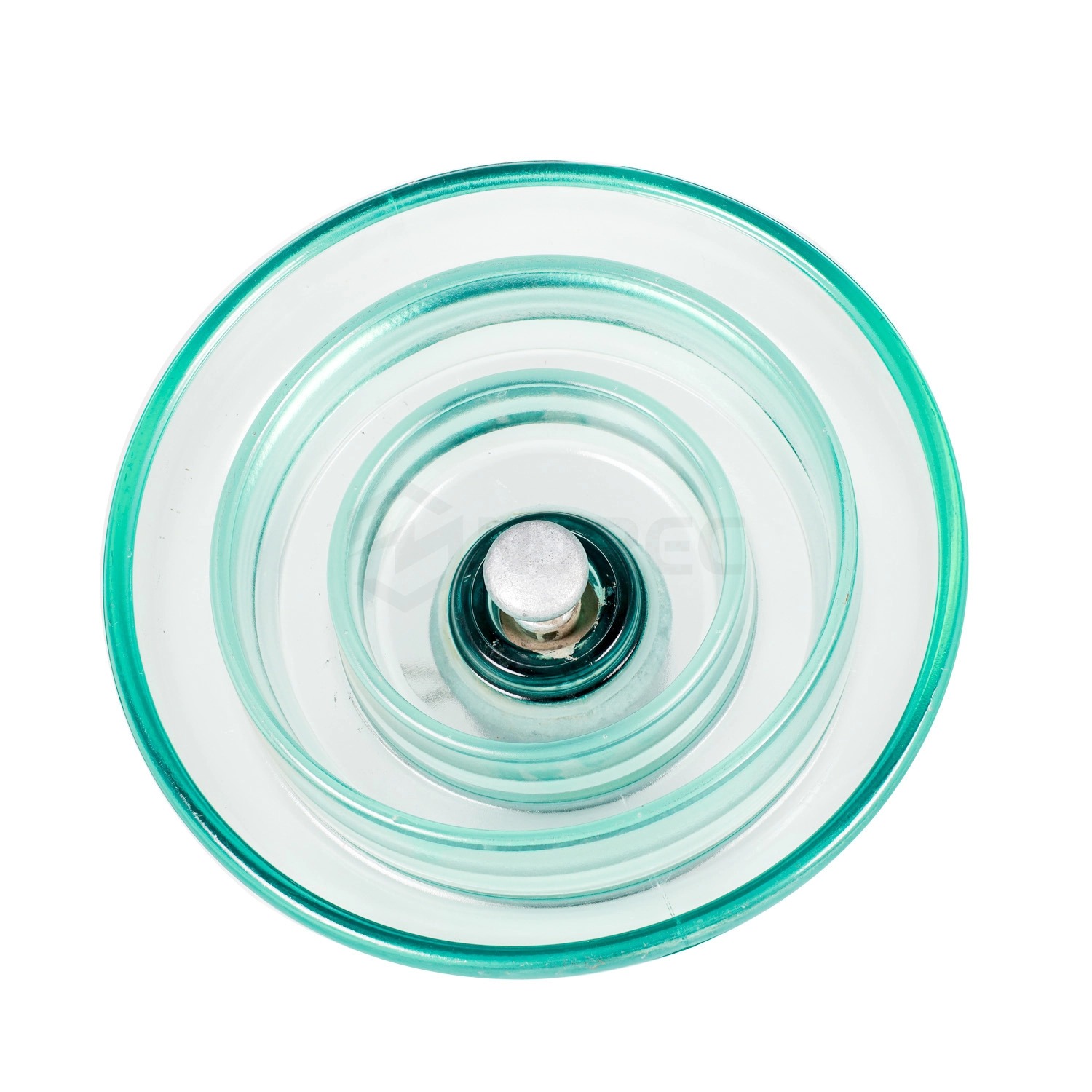

What Is a Standard Type Glass Insulator Used For?

Grid engineers and procurement teams face intense pressure today. They must balance strict infrastructure reliability against long-term maintenance needs. Unexpected line outages cost utility companies millions annually. Inspecting traditional opaque insulation materials only adds to this heavy burden. Internal electrical faults in ceramics often remain entirely invisible until a catastrophic physical failure occurs.

A standard type glass insulator directly solves this hidden inspection challenge. It provides a highly verifiable, long-lifecycle solution tailored for demanding high-voltage applications. In this article, we will explore exactly how toughened glass performs under extreme electrical stress. You will learn the distinct mechanical advantages it brings to modern suspension networks. We will also examine its realistic operational limits in the field. This guide gives you a clear, evidence-based evaluation of glass insulation technology so you can confidently optimize your next grid upgrade project.

Key Takeaways

• Standard type glass insulators are primarily utilized in overhead transmission and distribution lines due to their high dielectric strength and mechanical reliability.

• A key operational advantage is their "shatter" characteristic—toughened glass fails visibly, eliminating the need for complex internal puncture testing and allowing for rapid visual inspection.

• When evaluating a disc suspension glass insulator, decision-makers must weigh upfront weight and handling constraints against the long-term ROI of zero aging deterioration.

• Procurement should strictly baseline supplier evaluation on international compliance standards (IEC, ANSI) and rigorous factory acceptance testing.

Primary Applications in High-Voltage Infrastructure

Modern electrical grids demand robust physical supports. Overhead transmission and sub-transmission lines carry immense voltages across vast distances. Every reliable grid depends on a high-quality glass insulator to physically support these heavy conductors. The unit must bear the mechanical load of the wire while completely preventing electrical current from leaking into the grounded steel tower.

Suspension and Tension Configurations

High-voltage lines rarely rely on a single insulating unit. Engineers link multiple units together to form a robust string. They configure these units into a disc suspension glass insulator assembly. This modular approach provides incredible flexibility for grid design. You can easily adapt to different voltage requirements simply by adding or removing individual discs. Suspension strings hang vertically to support the conductor weight. Tension strings sit horizontally at dead-end towers to handle extreme pulling forces.

Environmental Suitability

Toughened glass performs exceptionally well across various climates. Standard profiles suit clean to moderately polluted environments perfectly. The smooth surface of the dielectric shell naturally resists dirt buildup. Rain easily washes away light dust and contaminants. We frequently see standard glass succeeding in coastal environments as well. However, you must evaluate local atmospheric conditions carefully. Heavy industrial zones or areas facing severe salt fog might require specialized aerodynamic or anti-fog profiles instead of the standard shape.

Evaluation Dimensions: Glass vs. Porcelain and Composite

Utility operators frequently debate materials. Choosing between glass, porcelain, and polymer composites dictates long-term maintenance strategies. Toughened glass offers several unique engineering benefits. These benefits directly reduce the complexity of routine line patrols.

Visual Fault Detection (The "Shatter" Protocol)

Many view the fragility of glass as a weakness. In high-voltage engineering, we frame this self-shattering property as an engineered safety feature. Manufacturers design the toughened dielectric shell to fail completely if compromised. When an electrical puncture or severe mechanical strike occurs, the glass shatters into small, blunt fragments. Crucially, the metal cap and pin hardware maintain the full mechanical load. The line does not drop. This visible failure enables fast, highly accurate drone or helicopter inspections. Maintenance crews instantly spot the missing glass skirt from a distance.

Zero Hidden Punctures

Porcelain units behave very differently under stress. Internal micro-cracks can develop deep inside the ceramic body. These hidden defects cause silent electrical failure long before any physical breakage appears. Crews cannot see these faults visually. They must use specialized, time-consuming testing equipment to find punctured porcelain. Glass eliminates this invisible threat entirely. It either holds the voltage completely, or it shatters visibly. There is no middle ground.

Aging and Degradation

Grid infrastructure must survive for decades. Toughened glass boasts a remarkable resistance to environmental degradation. It does not suffer from micro-aging. It remains completely immune to ultraviolet (UV) radiation. Polymer and composite insulators degrade over time under intense sunlight. They are highly susceptible to UV tracking, surface erosion, and moisture ingress. Glass maintains its original electromechanical properties indefinitely. This stability ensures exceptional lifecycle predictability for the entire transmission line.

Key Engineering Specifications and Compliance Criteria

You must evaluate technical specifications rigorously before procurement. Grid reliability depends on matching the hardware to the specific environmental and mechanical demands of the project.

Mechanical Failing Load (MFL)

The Mechanical Failing Load represents the ultimate physical strength of the unit. Standard ratings typically include 70kN, 120kN, and 160kN classes. Engineers align these ratings with tower spacing parameters. Longer spans between towers require higher MFL ratings to support the heavier conductor weight. Ice and wind loads also dictate the necessary mechanical strength. You must calculate these forces accurately to prevent string separation during extreme weather events.

Electrical Characteristics

Electrical performance depends on surface geometry. Creepage distance is a vital metric. It measures the shortest path along the insulator surface between the metal cap and the pin. Higher pollution levels demand longer creepage distances to prevent flashovers. You must also verify the dry and wet power frequency withstand voltages. Finally, the lightning impulse withstand voltage ensures the unit can survive sudden power surges from atmospheric lightning strikes.

Regulatory Standard Baselines

Credible procurement requires stringent adherence to international standards. You should only source units fully compliant with IEC 60383 or ANSI C29.2 testing protocols. These frameworks dictate strict manufacturing and performance tolerances. Any deviation from these baselines introduces critical operational risks to your grid.

Typical Mechanical and Electrical Specifications

Implementation Realities, Logistics, and Risks

Every technology carries specific trade-offs. You must plan for the practical realities of deploying heavy glass units across rugged terrain.

Weight and Transport Fragility

We must acknowledge the realistic downsides of this material. Glass is significantly heavier than modern composite alternatives. A large suspension string requires substantial effort to move. You need meticulous handling protocols during transport. Crews must pack the crates securely to prevent vibrations from chipping the edges. Rough handling on unpaved access roads can lead to premature shattering before the units even reach the tower.

Vandalism Susceptibility

Operational risks extend beyond extreme weather. Some rural areas experience high rates of vandalism. Standard units often become targets for recreational shooting. A direct kinetic impact from a rifle bullet will instantly destroy the dielectric shell. While the mechanical string remains intact, the loss of insulation requires immediate scheduling for replacement. You must map vandalism hotspots when choosing between glass and polymer materials.

Installation Best Practices

Proper installation prevents long-term mechanical fatigue. Follow these standardized steps during deployment:

1. Conduct a final visual inspection of every disc before hoisting. Discard any unit showing surface chips or deep scratches.

2. Clean the glass surfaces using an approved solvent to remove transport grease and factory dust.

3. Align the cap and pin couplings perfectly before inserting the locking cotter keys.

4. Apply tension gradually using calibrated hoisting equipment. Avoid sudden jerking movements.

5. Verify the cotter pins are fully seated and spread correctly to prevent vibration dislodgment.

Shortlisting Logic and Procurement Next Steps

Sourcing high-voltage hardware requires thorough vendor auditing. You must look beyond the specification sheet to evaluate the manufacturing process itself.

Vendor Validation

Spontaneous shattering plagues low-quality manufacturing. You must audit the supplier's annealing process. Annealing relieves internal stresses within the glass after casting. Poor temperature control here guarantees future field failures. Furthermore, you must verify their glass purity standards. Nickel sulfide inclusions act as microscopic time bombs. If a manufacturer uses impure raw materials, these inclusions expand over time. They eventually cause the unit to shatter on the tower without any external force.

Factory Acceptance Testing (FAT)

You must demand rigorous FAT documentation. Never accept shipments without reviewing the batch test reports. Specify three non-negotiable tests in your procurement contracts. First, mandate thermal shock tests. The factory must submerge hot units immediately into cold water to verify structural integrity. Second, require mechanical routine pull tests on every single assembled unit. Finally, demand residual strength tests. They must intentionally shatter a sample unit and verify the remaining metal hardware still holds the rated mechanical load.

Conclusion

The standard type glass insulator remains a highly defensible choice for modern grid operators. It offers absolute lifecycle predictability and unmatched visual fault detection. While heavy and susceptible to kinetic vandalism, its complete immunity to hidden electrical punctures makes it invaluable for critical infrastructure.

To move forward effectively, take these action steps:

• Cross-reference your localized pollution levels against the creepage distance of standard profiles.

• Calculate your maximum conductor weight and ice loads to determine the correct MFL rating.

• Audit potential suppliers specifically for their glass annealing and raw material purity processes.

• Draft your Request for Proposal (RFP) mandating strict compliance with IEC 60383 testing standards.

FAQ

Q: Can a disc suspension glass insulator hold the line if the glass shatters?

A: Yes. Manufacturers design these units specifically for this scenario. If the glass shell breaks completely, the internal metal cap and pin interlock. This metal-to-metal connection retains a high residual mechanical strength. It safely supports the conductor wire until maintenance crews arrive to replace the broken string.

Q: Why do some glass insulators shatter spontaneously?

A: Spontaneous shattering usually stems from poor manufacturing quality. The primary culprit is nickel sulfide inclusions in the raw glass mixture. These microscopic impurities expand slightly over time under varying temperatures. This expansion creates massive internal stress, causing the toughened shell to burst. Poor annealing processes also leave residual thermal stresses.

Q: What is the expected lifespan of a standard type glass insulator?

A: These units offer a verifiable track record of 40 to 50 years in most grid infrastructures. Toughened glass does not age electrically. It resists UV degradation, ozone, and moisture indefinitely. Unless destroyed by extreme kinetic impact or massive electrical flashovers, they often outlast the steel towers supporting them.

Q: How does the weight of glass impact tower design compared to polymer?

A: Glass strings weigh significantly more than equivalent polymer composite insulators. Tower engineers must account for this extra dead weight. When retrofitting polymer lines with glass, or designing new installations, the steel cross-arms and tower foundations must be robust enough to handle the increased vertical load.
