In the world of electrical power systems, attention often goes to transformers, circuit breakers, and large substations. Yet, among these critical components lies an often-overlooked hero: the transformer bushing. A transformer bushing is more than a connector—it is a vital piece that determines whether high-voltage electricity moves safely through a system or leads to costly failures. At NJREC, we design and supply a comprehensive range of transformer bushings for a wide array of power applications, ensuring durability, safety, and compatibility across ANSI, DIN, and EN standards.



What Exactly Is a Transformer Bushing?

Definition and Core Function

A transformer bushing is an insulating structure that enables a high-voltage conductor to pass through the grounded enclosure of a transformer or switchgear without causing electrical discharge or arcing. It plays a dual role: providing insulation and mechanical support for conductors. These bushings ensure that current can flow into or out of a transformer without compromising the safety of the surrounding equipment or personnel.

How It Differs from General Electrical Bushings

While general electrical bushings also perform insulation duties, transformer bushings are specially engineered for high-voltage transmission systems. Standard electrical bushings may be sufficient for lower voltages or indoor applications, but transformer bushings must endure extreme environmental conditions and significant electrical stress. They incorporate advanced internal structures such as capacitive grading layers and are made from highly durable materials, distinguishing them from common bushings used in less demanding electrical installations.



How Does a Transformer Bushing Work?

Capacitive Grading and Insulation Mechanism

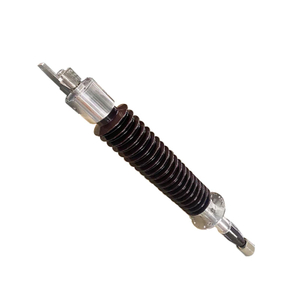

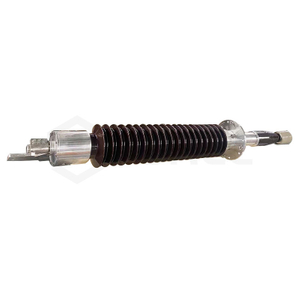

Inside a high-voltage transformer bushing lies a sophisticated insulation design, often referred to as capacitive grading. This structure uses alternating layers of insulation and conductive materials to evenly distribute electrical fields and reduce stress concentration, which helps prevent electrical breakdown. The internal conductor is typically surrounded by an insulating body that shields it from the grounded parts of the transformer, allowing current to pass through safely.

The graded insulation prevents partial discharge and ensures long-term operational stability. This internal system must be precisely engineered and manufactured, especially for bushings intended for high-voltage transformers in harsh environments.

Material Choices: Porcelain, Epoxy, and Resin Options

The external housing of a transformer bushing can be made from several materials, each offering different performance characteristics:

Porcelain bushings are favored for their mechanical strength, weather resistance, and long-term durability. They are ideal for outdoor and high-voltage use.

Epoxy bushings are lightweight, easier to handle, and offer excellent dielectric properties. They are particularly useful in compact or indoor installations.

Resin bushings, especially those used in dry-type transformers, offer a maintenance-free solution with stable performance in temperature-sensitive environments.

At NJREC, we manufacture transformer bushings using all three materials to accommodate various applications and voltage levels, from distribution transformers to transmission systems.



What Types of Transformer Bushings Are Available?

ANSI, DIN, and EN Standards: A Comparative Overview

Transformer bushings are manufactured according to different national and international standards, ensuring compatibility with transformers and switchgear across the globe:

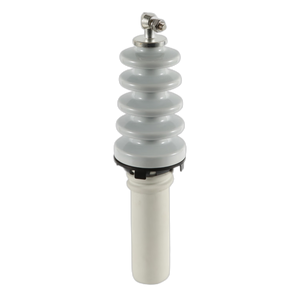

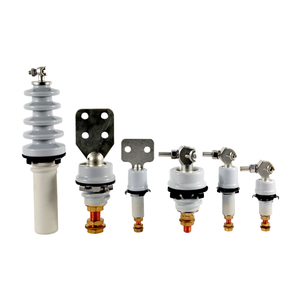

ANSI transformer bushings are designed according to American National Standards Institute guidelines. These are widely used in North American power grids and oil-immersed transformers.

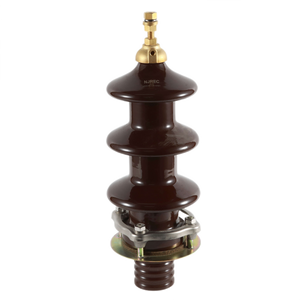

DIN transformer bushings follow German industry standards. They are common in European electrical systems and offer compact, efficient performance.

EN-standard bushings (European Norms) are compatible with a broad range of European transformer designs and are often selected for international applications.

These standards define not only dimensions and mounting interfaces but also dielectric strength, temperature tolerance, and mechanical stress performance. NJREC provides certified bushings that meet or exceed all three of these standards, giving customers the flexibility to choose what best fits their systems.

Material and Voltage Categories

Beyond standards, transformer bushings are also classified by material and operating voltage:

Low-voltage bushings (up to 1kV) are used in residential and light commercial transformers.

Medium-voltage bushings (1kV to 36kV) serve most industrial and municipal applications.

High-voltage bushings (above 36kV, up to 52kV) are essential for long-distance transmission systems and substations.

Material selection is often influenced by voltage level, installation conditions, and environmental exposure. NJREC supports these classifications with a broad inventory of standard bushings and offers custom solutions upon request.



Where Are Transformer Bushings Commonly Used?

Applications by Voltage Level

Transformer bushings are indispensable in any application where a transformer is used. Their role and configuration may differ by system type:

Low-voltage systems rely on bushings to interface with distribution networks safely.

Medium-voltage systems use more robust bushings to handle fluctuating industrial loads.

High-voltage systems require carefully engineered bushings that can manage extreme voltage gradients without breakdown.

Types of Transformers and Installations

Transformer bushings are designed specifically for the type of transformer in which they are installed. Key examples include:

Pad-mounted transformers often use compact, epoxy-insulated bushings that can withstand environmental stress.

Dry-type transformers utilize resin bushings that do not rely on insulating oil and are ideal for indoor or enclosed spaces.

Oil-immersed transformers commonly employ porcelain or epoxy bushings capable of operating in liquid-filled environments for superior insulation.

At NJREC, we supply bushings optimized for all these transformer types, ensuring that your system operates with high efficiency and maximum safety.



Why Does Quality and Certification Matter?

International Certification for Assurance

A poorly manufactured transformer bushing can lead to system failures, equipment damage, and even power outages. That’s why NJREC prioritizes quality and international certification. Our products meet rigorous quality standards including:

ISO certification for consistent manufacturing practices

CNAS accreditation for laboratory testing

TUV, SGS, and BV verification for third-party product validation

These certifications confirm that our bushings not only meet but exceed the expectations of engineers and procurement managers worldwide.

Proven Performance and Testing

Every transformer bushing from NJREC undergoes a complete set of performance tests, including dielectric, mechanical, and thermal analysis. We provide Full Type Test Reports, offering clear documentation that supports technical evaluations and regulatory requirements. For clients with specialized needs, we also offer custom-designed bushings with faster delivery schedules than the industry standard—up to 20% faster for custom orders.

Our in-stock models are ready to ship, making it easy for our customers to reduce lead time and avoid project delays.

 Transformer Bushing

Conclusion

Transformer bushings are the critical interface between high-voltage systems and grounded transformer enclosures. They provide the insulation and structural support necessary for safe, efficient energy transfer. Whether you need an ANSI transformer bushing, a DIN transformer bushing, or a custom resin-insulated model, NJREC delivers performance you can rely on. Our products are tested, certified, and engineered for reliability across a wide range of transformer applications.

Contact us today to explore our transformer bushing portfolio or to request a custom solution tailored to your project needs.
