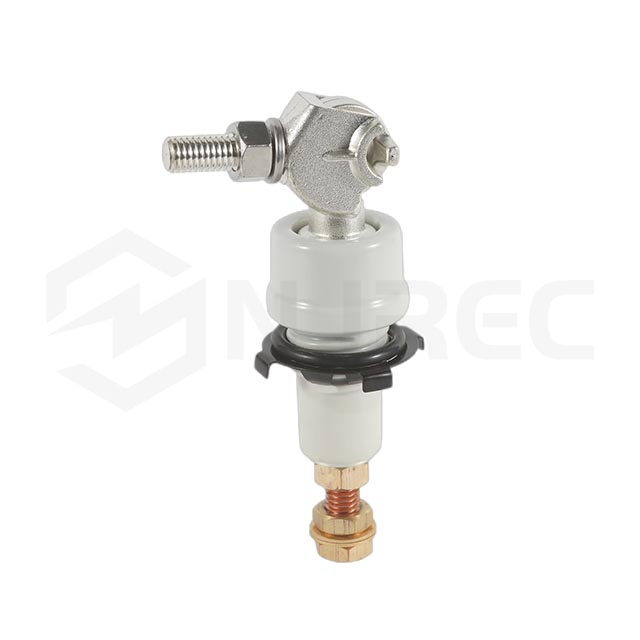

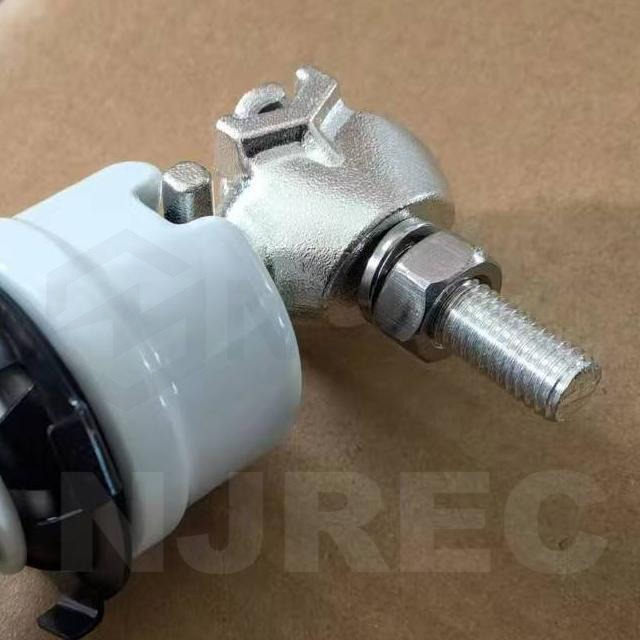

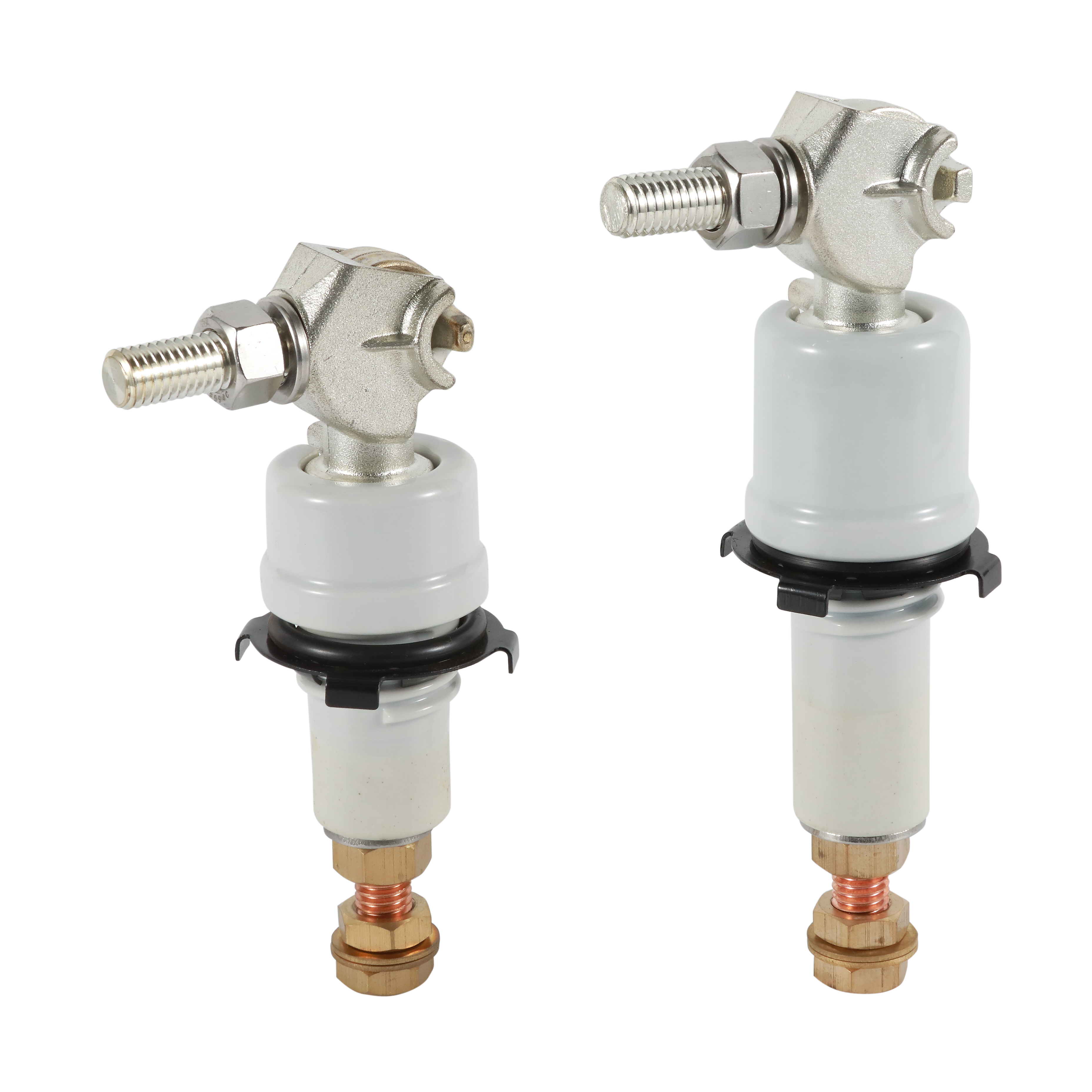

1.2kV 125A 250A Low Voltage Porcelain ANSI Standard Eyebolt Type Transformer Bushing
Rated Voltage: 1.2kV
Material: Porcelain
Creepage Distance ≥35mm
Lighting Impulse withstand Voltage: 24kV
Power-frequency withstand voltage (Dry): 8kV
The Threaded Bushings for voltage of 1.2kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
