What Is A Glass Insulator And How Does It Work?

When it comes to maintaining the safety and reliability of electrical power transmission, the role of a glass insulator cannot be overstated. Glass insulators are critical components designed to support and isolate high-voltage conductors on power lines, preventing electrical current from unintentionally flowing to grounded structures or other conductors. Specifically, high-voltage glass insulators are engineered to withstand substantial electrical and mechanical stresses, ensuring the secure transmission of electricity across vast distances.

At its core, a glass insulator functions by utilizing the inherent insulating properties of tempered glass combined with durable metal fittings. This combination offers a robust barrier against electrical conduction, allowing transmission lines to operate safely under high voltages. The glass component is meticulously treated through a tempering process that enhances its strength and resistance to environmental degradation. Meanwhile, metal fittings provide mechanical support and attachment points to the power line hardware.

Nanjing Rainbow Electric Co., Ltd. (NJREC) specializes in manufacturing a comprehensive range of glass insulators tailored for high-voltage applications. Our products serve crucial roles in power transmission and distribution networks, meeting the demands of modern electrical infrastructure.

Why Use High-Voltage Glass Insulators Instead of Other Types?

Choosing the right type of insulator is fundamental to ensuring the safety and efficiency of electrical systems. High-voltage glass insulators hold several advantages over traditional porcelain and polymer insulators, particularly in terms of dielectric strength, durability, and maintenance.

One key metric in evaluating insulators is their dielectric strength — the maximum electric field an insulating material can withstand without breakdown. Tempered glass exhibits excellent dielectric strength, often superior to many polymer composites and comparable or better than porcelain insulators. This high dielectric capacity means glass insulators can effectively resist electrical leakage and flashovers, especially in demanding high-voltage environments.

Another notable benefit of glass insulators is their resistance to aging and environmental wear. Unlike polymers that may degrade due to UV exposure or porosity issues in porcelain, tempered glass maintains its insulating properties over extended periods. Additionally, glass insulators offer a unique visual advantage: any fracture or damage within the glass is readily visible, allowing for straightforward inspection and timely maintenance. This early detection capability enhances operational safety by preventing failures before they cause outages or hazards.

Overall, high-voltage glass insulators combine durability, reliability, and easy maintenance — key reasons why utilities around the world prefer them for critical transmission line projects.

How Are They Manufactured and Tested?

The production of high-voltage glass insulators involves sophisticated manufacturing processes designed to optimize both electrical and mechanical performance. At NJREC, we apply state-of-the-art tempering techniques and rigorous quality controls to ensure our glass insulators meet international standards.

Tempering is the foundational step in manufacturing these insulators. It involves heating the glass to a high temperature and then rapidly cooling it. This process creates compressive stresses on the surface while the interior remains in tension, significantly increasing the strength and impact resistance of the glass. Tempered glass is far less likely to shatter upon mechanical or thermal stress, which is essential for long-term reliability in outdoor environments.

Once manufactured, insulators undergo comprehensive testing according to standards such as IEC (International Electrotechnical Commission) and ANSI (American National Standards Institute). These tests include electrical withstand tests to confirm dielectric strength, mechanical load tests to assess tensile and compressive strength, and environmental simulations that mimic pollution, UV exposure, and temperature extremes. Only after passing these stringent assessments do the insulators qualify for deployment in the field.

NJREC’s commitment to adhering to these global standards ensures that our glass insulators perform consistently in high-voltage power networks, providing operators with confidence in their infrastructure.

Where Are These Insulators Applied?

High-voltage glass insulators find application across a broad range of electrical transmission and distribution scenarios, accommodating voltages typically ranging from 10 kV to as high as 1000 kV. Their versatility allows them to be used in suspension, pin, post, and other specialized configurations.

In transmission lines, suspension-type glass insulators are commonly employed to hold conductors securely while isolating them electrically from supporting towers. These insulators must bear not only electrical stresses but also mechanical loads from conductor weight, wind, and ice accumulation. Pin-type glass insulators, on the other hand, are frequently used in distribution lines and substations where lower voltage levels prevail but high mechanical strength is still necessary.

Additionally, glass insulators are integral to renewable energy infrastructure, such as wind farms and solar power plants, where reliable insulation and durability are paramount. Substations also rely on glass insulators for isolating transformers, circuit breakers, and busbars, facilitating safe and efficient power management.

NJREC’s extensive product lineup covers the entire spectrum of glass insulator types, including specialized anti-pollution variants and aerodynamic designs to meet the diverse needs of utilities worldwide.

What Environmental Conditions Can They Withstand?

Electrical insulators are often exposed to harsh environmental conditions, ranging from heavy pollution and extreme temperatures to mechanical stresses caused by wind or seismic activity. High-voltage glass insulators must be engineered to maintain their insulating integrity and mechanical stability under these challenges.

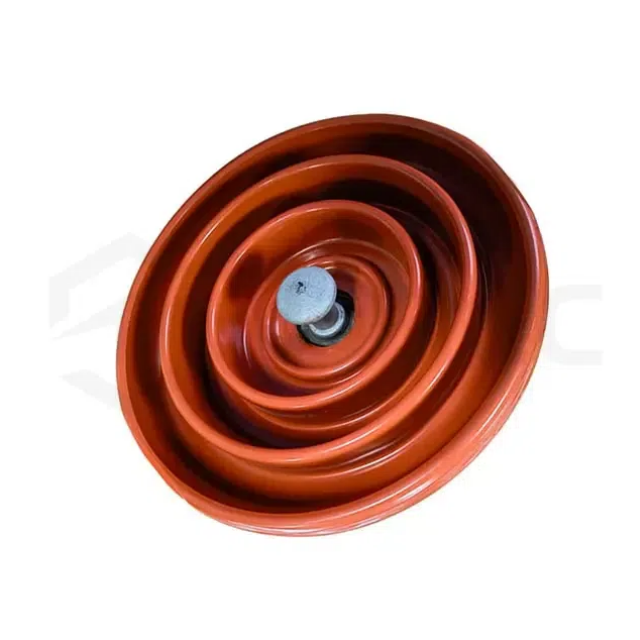

Pollution buildup on insulator surfaces can severely degrade performance by creating conductive pathways for leakage current, potentially triggering flashovers. To combat this, NJREC produces anti-pollution glass insulators featuring surface profiles and coatings designed to minimize contaminant adhesion. Double shed designs increase the leakage distance, helping to maintain high insulation performance even in heavily polluted areas.

Temperature resilience is equally vital. Glass insulators must tolerate wide thermal ranges without cracking or losing strength, accommodating both scorching heat and freezing cold conditions. The tempering process enhances thermal shock resistance, reducing the risk of damage from rapid temperature changes.

Mechanical tension from conductor weight, wind pressure, or vibration demands insulators with high tensile strength and toughness. NJREC’s glass insulators are rigorously tested to ensure they withstand mechanical loads from 40 kN up to 550 kN, suitable for diverse climatic and geographic conditions.

Furthermore, aerodynamic designs reduce wind load and accumulation of dirt or moisture, enhancing the insulator’s long-term reliability in exposed environments.

How to Choose the Right Glass Insulator for Your Project?

Selecting the proper glass insulator for a specific project involves a careful consideration of voltage requirements, mechanical loads, and environmental factors.

First, the operating voltage level must be matched with an insulator rated to handle the electrical stresses safely. NJREC offers standard models such as U40, U70, U120, U160, U210, and U300, each with specified voltage and mechanical strength parameters. Higher voltage projects typically require insulators with longer creepage distances and higher mechanical load ratings.

Mechanical load considerations include the tension in the conductors and environmental forces like wind, ice, and seismic activity. Insulators must be able to support these loads without cracking or losing structural integrity.

Environmental conditions also dictate the choice of insulator. For example, areas prone to heavy pollution may require anti-pollution glass insulators with double shed designs or specialized coatings. Regions with strong winds might benefit from aerodynamic profiles to reduce loading.

NJREC’s comprehensive catalog enables customers to select from a variety of glass insulator types tailored to their unique project needs, ensuring optimal performance and longevity.

Conclusion

Glass insulators remain a cornerstone component in high-voltage power transmission and distribution, offering exceptional dielectric strength, durability, and ease of maintenance. Nanjing Rainbow Electric Co., Ltd. (NJREC) provides a full range of high-voltage glass insulators that meet international standards and suit diverse applications — from suspension lines to substations and renewable energy facilities. Whether your project demands standard or specialized insulators designed for polluted or harsh environments, NJREC’s products deliver reliable performance and peace of mind. For detailed information about our glass insulator lineup and how they can support your power infrastructure, please contact us today.
