In the world of electrical power distribution, Glass Insulators are the unsung heroes keeping the lights on. They provide the necessary electrical isolation and mechanical support for heavy conductors. However, one specific phenomenon keeps utility engineers awake at night: spontaneous shattering. Unlike porcelain alternatives, Toughened glass possesses a unique characteristic where internal stresses can cause the glass shell to disintegrate into small fragments without an external strike.
This guide focuses on the "Expert Insight" of detecting and managing these failures through systematic visual inspection and maintenance. We will explore why Glass Insulators for transmission lines shatter, how to identify "stub" formations from the ground, and how to implement a maintenance strategy that prevents catastrophic line drops. Understanding these nuances ensures that your High voltage infrastructure remains resilient against both environmental stressors and internal material fatigue.
Understanding the Mechanism of Spontaneous Shattering
To detect failure, we must first understand why it happens. Glass Insulators made of Toughened glass are manufactured through a rapid cooling process. This creates a state of high compression on the surface and high tension in the core. While this makes them incredibly strong, it also means that if a crack penetrates the compression layer, the entire shell releases its stored energy instantly.
The most common culprit is a nickel sulfide (NiS) inclusion—a tiny metallic impurity that can expand over time. Environmental factors like extreme temperature swings or heavy loads on High voltage lines can trigger this expansion. When the glass shatters, it leaves behind only the metal cap and pin, often called a "stub." The beauty of Transparent glass is that these stubs are incredibly easy to spot compared to hairline cracks in porcelain. Because the mechanical strength of the internal assembly remains intact even after the glass is gone, the line usually stays up, giving maintenance teams a window of opportunity for repair.
Implementing a Systematic Visual Inspection Protocol
Visual inspection is the primary line of defense for Glass Insulators for transmission lines. Because these components are often hundreds of feet in the air, the "how" of inspection is just as important as the "what." A systematic approach ensures that no tower is overlooked and that the data collected is actionable for maintenance crews.
Drone-Based High-Resolution Imaging
Traditional binocular inspections from the ground are limited by angle and distance. Modern utilities now use drones equipped with high-resolution cameras to capture 360-degree views of the High voltage strings. This allows inspectors to see the top side of the Glass Insulators, where debris or early-stage "chipping" might occur. Drones can fly close enough to see the texture of the glass, helping to distinguish between simple dirt and actual material degradation.
Ground-Level "Stub" Identification
If a Toughened glass shell has already shattered, the resulting stub looks like a bare metal knuckle in the middle of a string. On Transparent or tinted green strings, the absence of the "skirt" or "disk" creates a noticeable gap in the silhouette of the insulator string. Inspectors should look for "missing disks" against the bright sky. They should also check the base of the tower; a pile of small, glass "sugar" cubes is a definitive sign that a Glass Insulator has recently experienced spontaneous shattering.
Early Warning Signs: Beyond the Shatter
While spontaneous shattering is "spontaneous" by definition, there are often subtle clues that a Glass Insulator is under excessive stress. Maintenance experts look for "pre-shatter" indicators to prevent the event before it happens, especially in Anti-pollution environments where salt or industrial dust accumulates.
Recognizing Surface Crazing and Stress Marks
Detection of Micro-cracks
Under certain lighting conditions, Transparent glass might reveal fine lines or "crazing" on the surface. These are not yet full shatters but indicate that the surface compression is being challenged. In High voltage applications, these micro-cracks can trap moisture and pollutants, leading to leakage currents and eventual "tracking." If multiple units in a string show surface dullness, they may be nearing the end of their service life.
Flashover Burn Marks
Inspectors should look for black or metallic "scars" on the glass surface. These marks indicate that electricity has jumped across the insulator disk. On Glass Insulators for railway electrification, these flashovers are often caused by carbon dust from pantographs. Burn marks weaken the thermal integrity of the Toughened glass. A unit with a flashover scar is statistically more likely to shatter during the next major temperature drop because the heat from the arc has altered the internal stress balance.
Maintenance Strategies for High-Pollution Zones
Anti-pollutionGlass Insulators are designed with specific profiles to shed water and resist dirt. However, in coastal or industrial areas, maintenance requirements skyrocket. If pollutants build up, the resulting "dry band arcing" can heat the glass unevenly, triggering a shatter.
Washing vs. Coating
In many High voltage sectors, "live-line washing" is used to keep Glass Insulators clean. This involves spraying high-pressure deionized water onto the strings while they are energized. Alternatively, some utilities apply a Room Temperature Vulcanized (RTV) silicone coating to the Transparent glass. This adds a hydrophobic layer that prevents water from forming a continuous film.
Monitoring Leakage Current
Advanced maintenance involves installing leakage current sensors on the "cold" end of the Glass Insulator string. If the current spikes, it tells the team that the Anti-pollution properties are failing. This allows for "predictive maintenance"—cleaning the insulators before the arcing gets bad enough to cause a thermal shatter. This is much more cost-effective than replacing shattered stubs in an emergency.
Mechanical Integrity and Line Drop Prevention
One of the greatest advantages of ToughenedGlass Insulators is their "fail-safe" mechanical nature. Even when the glass vanishes, the metal cap and pin are designed to hold the weight of the conductor. However, maintenance teams must understand the limits of this mechanical "stub."

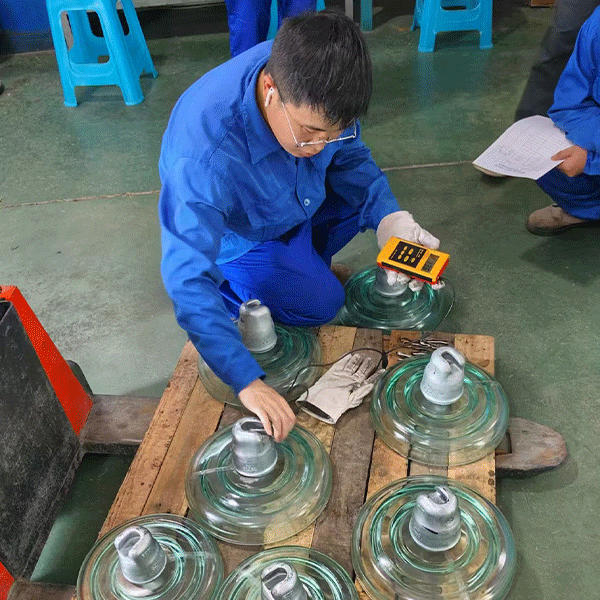

Residual Strength Testing
Studies show that a shattered Glass Insulator stub retains about 80% to 90% of its original mechanical strength (Verify: Standard IEC 60383). For transmission lines, this is usually enough to prevent a line drop. However, for railway electrification, where vibrations from passing trains are constant, the risk is higher. Maintenance crews should prioritize the replacement of stubs in high-vibration zones to prevent the pin from eventually slipping out of the cap due to wear.
String Redundancy
When designing High voltage lines, engineers often include "extra" disks in each string. This redundancy means that if one or two Glass Insulators shatter, the remaining units can still handle the electrical load. Maintenance protocols should define a "Critical Count"—for example, if a 10-unit string has 2 stubs, it is an urgent repair; if it has 3, it is an emergency shutdown.
Comparison: Glass vs. Porcelain Maintenance Needs
Choosing between materials impacts the long-term maintenance budget. Glass Insulators offer distinct advantages in the "detection" phase of maintenance, which is why they are so popular for long-distance transmission lines.
Feature
Toughened Glass
Porcelain / Ceramic
Visibility of Failure
Extremely High (Shatters)
Low (Hairline Cracks)
Electrical Testing
Not required (Visual is enough)
Requires "Punctured" testing
Cleaning Need
Low (Self-cleaning Transparent surface)
High (Porous surface traps dirt)
Aging Detection
Immediate
Requires lab analysis
Mechanical Security
Maintains strength as a stub
May drop the line if punctured
For a procurement or maintenance officer, the "total cost of ownership" for Glass Insulators is often lower because they eliminate the need for expensive "buzz-testing" or infrared thermography required to find hidden cracks in porcelain.
The Role of Railway Electrification Environments
Glass Insulators for railway electrification face unique challenges. Unlike standard utility lines, these are subject to constant mechanical "shocks" and metallic dust from the overhead catenary system.
Vibration Management
The constant passing of trains creates a rhythmic vibration that can accelerate the growth of NiS inclusions. In these settings, maintenance checks should occur more frequently. We recommend monthly drone flyovers for high-speed rail lines to ensure that no Glass Insulators have "popped" due to mechanical fatigue.
Preventing "Cold" Shattering
In cold climates, the combination of ice loading and the mechanical pull of the train can create a "perfect storm." Toughened glass handles cold well, but if ice builds up in the "sheds" (the ridges of the glass), it can create uneven pressure. Maintaining clear paths for water runoff on the Transparent disks is vital for railway safety.
Maintenance doesn't end with replacing a stub. To truly master Glass Insulators, you must investigate the "why" behind the failure. Was it a one-off inclusion, or is it a systemic issue with a specific batch?
Lab Testing of Recovered Stubs
When a unit shatters, the maintenance team should recover the cap and pin whenever possible. Lab analysis can reveal if the failure was caused by an external "arc-over" or internal material stress. If a string of High voltageGlass Insulators shows multiple shatters within a few months, it may indicate that the line is being subjected to harmonic vibrations or voltage surges beyond its design.
Updating the Asset Registry
Every shattered unit should be logged with its location, age, and environmental conditions. Over time, this data allows the utility to predict when certain sections of the transmission lines will need a full "re-insulation." This proactive approach moves the organization from "firefighting" shatters to strategically managing them.
Conclusion
Detecting spontaneous shattering in Glass Insulators is a specialized skill that combines keen visual observation with modern technology. By leveraging the Transparent nature of Toughened glass, maintenance teams can quickly identify failures that would remain hidden in other materials. Whether you are managing High voltagetransmission lines or complex systems for railway electrification, the key is a systematic protocol: drone imaging, ground checks for stubs, and a deep understanding of Anti-pollution requirements. While shatters are an inherent part of glass technology, they are manageable, predictable, and—with the right maintenance—rarely a cause for system failure.
FAQ
Q1: Is a shattered glass insulator dangerous?
A: Electrically, yes, because the string's insulation value is reduced. However, mechanically, Toughened glass is designed so the metal cap and pin remain connected, usually preventing the wire from falling.
Q2: Can you tell if a Glass Insulator is about to shatter?
A: It is difficult, but not impossible. Look for "crazing" or small chips on the Transparent surface. Also, use infrared cameras; a unit that is running "hotter" than its neighbors is experiencing leakage current and may shatter soon.
Q3: Does rain help or hurt Glass Insulators?
A: Generally, rain helps. The Transparent, smooth surface of Glass Insulators allows rain to wash away dust and salt. This "self-cleaning" property is why they are excellent for Anti-pollution performance.
