What Is the Spacing Between Suspension Insulator Discs?

Designing resilient overhead transmission lines requires exacting precision down to the millimeter. Even a minor oversight in hardware dimensions can cascade into severe operational failures. Accurate disc spacing is critical for calculating the total insulator string length required on any given tower. It guarantees adequate tower window clearances and acts as a primary defense against dangerous flashovers in active transmission networks. If engineers miscalculate these dimensions, utilities risk severe safety hazards and widespread power outages.

This article provides utility engineers and procurement managers with baseline dimensional frameworks, standard tolerances, and actionable evaluation criteria for specifying these components. We focus strictly on dimensional realities, mechanical coupling impacts, and compliance factors rather than basic definitions. By understanding these technical variables, you can confidently integrate suspension insulators into complex grid infrastructures.

Key Takeaways

• Standard unit spacing for a typical disc suspension glass insulator (e.g., 100kN–120kN) is generally 146 mm (approx. 5.75 inches).

• Disc spacing directly dictates the necessary tower cross-arm design and phase-to-ground clearances.

• Spacing is fundamentally distinct from creepage distance; selecting for high-pollution environments requires evaluating disc profile rather than just unit spacing.

• Hardware coupling types (Ball & Socket vs. Clevis & Tongue) establish fixed spacing parameters that must align with existing utility hardware standards.

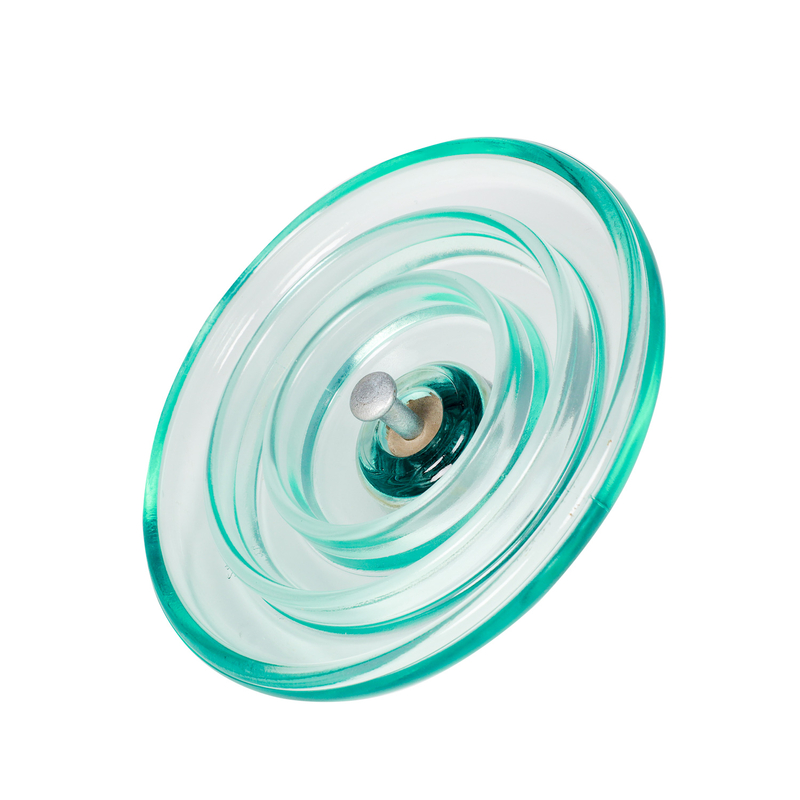

Defining Standard Unit Spacing for Disc Suspension Glass Insulators

When you specify a disc suspension glass insulator, understanding the measurement protocol is your first step. Engineers measure spacing along the vertical axis of the unit. You determine this dimension by measuring from the exact center of the top coupling down to the center of the bottom coupling. The unit must hang vertically during this measurement. This standardized protocol ensures uniform dimensions across different manufacturing batches.

Industry standards establish clear baseline dimensions for everyday applications. A typical disc featuring a 254 mm outer diameter usually maintains a unit spacing of 146 mm. This 146 mm baseline serves as the default geometric foundation for most moderate-voltage transmission lines globally. Utilities rely on this exact measurement to standardize their cross-arm structural designs.

Unit spacing generally scales upward as electro-mechanical (EM) failing load requirements increase. You cannot apply the same spacing rules to higher capacity lines. Discs rated for 160kN or 210kN demand thicker steel pin shanks and more robust cast-iron caps to handle extreme tension. This added metallic bulk forces the spacing dimension to expand. Heavy-duty 210kN units often push spacing dimensions to 170 mm or beyond. Designers must account for this physical expansion when upgrading line capacity.

Tight tolerance control represents a critical vendor evaluation metric. International frameworks like IEC and ANSI strictly permit limited manufacturing variances. If you assemble twenty discs into a single string, minor spacing errors compound rapidly. A consistent +2 mm error per disc adds 40 mm to the total string length. This unwanted extension reduces your safety clearance margins. Reputable manufacturers implement rigorous quality control to keep deviations within the allowed mathematical formula, typically ± (0.04d + 1.5) mm.

Engineering Impact: String Length and Clearance Calculations

Calculating total string length requires a strict formulaic approach. You multiply the unit spacing by the number of discs required for your target voltage level. Next, you must add the vertical dimensions of all attached hardware fittings. These fittings include yoke plates, shackles, and vibration dampers. Failing to include hardware dimensions in your primary calculation guarantees improper string assembly in the field.

Spacing calculations drastically impact critical tower clearance risk factors. Phase-to-ground clearance defines the minimum safe distance between energized conductors and the grounded steel tower. If your total string length exceeds design parameters, the conductor drops closer to the earth. Furthermore, longer strings swing further laterally during heavy wind events. This excessive swing threatens the integrity of tower window designs and compromises established right-of-way boundaries.

Combined length and weight dynamics directly affect conductor sag implications. A heavy, extended insulator string adds significant vertical point-loading to the span. Under peak summer thermal conditions, the conductor expands and drops lower. If the initial insulator string is longer than specified, the resulting sag may violate local safety regulations. Engineers carefully balance unit spacing against maximum operating temperatures to prevent severe ground clearance violations.

Table: Sample Dimensional Scaling for Standard Load Ratings

Creepage Distance vs. Spacing in Standard Type Glass Insulators

You must clearly differentiate between unit spacing and creepage distance to ensure network reliability. Unit spacing strictly determines the physical Z-axis length of the assembled string. Conversely, creepage distance represents the shortest leakage path along the insulating surface between the top and bottom metallic fittings. Spacing dictates physical geometry, whereas creepage distance determines electrical performance in wet or highly polluted conditions.

Engineers often evaluate the baseline dimensions of a standard type glass insulator against specialized anti-pollution profiles. A standard profile provides adequate creepage for clean environments while maintaining the typical 146 mm spacing. Anti-fog or aerodynamic designs introduce deep, complex ribs on the underside of the glass shed. These deep-ribbed designs dramatically increase the surface creepage distance. Remarkably, manufacturers achieve this increased creepage without necessarily increasing the vertical unit spacing dimension.

When battling high-pollution areas, you face stringent evaluation criteria. You must decide whether to increase the total number of standard discs or transition to a high-creepage profile. Adding more standard discs increases total physical spacing, which extends the string length and reduces clearance. Changing to a deep-ribbed profile keeps the physical string length identical while fulfilling elevated leakage path requirements. This strategic substitution resolves severe electrical challenges without forcing expensive tower modifications.

Coupling Mechanisms and Hardware Integration Constraints

Hardware couplings establish rigid parameters governing unit spacing. Ball and socket couplings remain the industry standard across most transmission networks. IEC 60120 and ANSI C29.2 clearly define these standardized connection points. The depth of the socket cap and the geometry of the ball pin dictate how closely two discs can nest together. This specific mechanical nesting inherently fixes the minimum vertical spacing dimension for the entire product line.

Clevis and tongue couplings present a robust alternative for distinct structural needs. This mechanism utilizes a specialized pin and U-bolt configuration rather than a ball joint. Utilities often prefer clevis configurations for dead-end towers or areas experiencing aggressive vibration. While highly stable, clevis couplings possess different vertical dimensions. Switching from a ball-and-socket string to a clevis-and-tongue string usually alters the final unit spacing and requires fresh clearance calculations.

Interchangeability limits demand your complete attention during network maintenance. Utilities must match replacement disc spacing and coupling sizes precisely. You cannot safely force a 16 mm ball pin into a 20 mm socket housing. Mismatched components induce severe localized mechanical stress. Even subtle size discrepancies cause string misalignment, increasing the likelihood of sudden mechanical separation under heavy wind loads.

• Coupling Compatibility Rules: Always verify IEC or ANSI class designations before ordering replacement units.

• Dead-End Considerations: Use clevis mechanisms where tension stability supersedes flexible articulation.

• Visual Inspections: Ensure maintenance crews measure replacement string lengths physically before raising them onto the tower.

Procurement Criteria: Verifying Tolerances and Compliance

Procurement teams must enforce strict compliance testing prior to authorizing bulk purchases. Vendors must prove adherence to dimensional accuracy standards like IEC 60305 and ANSI C29.2. These frameworks mandate random sampling across production runs. Independent laboratories measure the vertical spacing of these samples to ensure they sit within the legally allowed mathematical deviations. Products failing these basic geometric audits pose massive installation risks.

You can identify severe quality assurance red flags by closely examining a manufacturer's technical spec sheets. Before ordering any glass insulator batch, verify their routine dimension testing protocols. Pay special attention to galvanizing thickness on the pin and cap. Excessive zinc buildup inside the socket alters how deeply the ball seats. This seemingly minor defect increases the actual unit spacing and prevents secure mechanical locking.

Implementing a rigorous shortlisting logic protects utility infrastructure from substandard hardware. We recommend demanding certified dimensional drawings for every specific disc variant.

1. Request independent type-test reports from globally recognized laboratories.

2. Demand actual physical dimension variance charts from previous production batches.

3. Verify the manufacturer uses automated optical measurement tools during final assembly.

4. Require specific guarantees regarding zinc-coating uniformity on all metallic fittings.

By enforcing these rules, you eliminate vendors who struggle with consistency. Bulk procurement requires absolute uniformity. A single oversized batch can disrupt construction schedules, force field engineering workarounds, and compromise the structural integrity of your newest transmission corridors.

Conclusion

Unit spacing represents a fixed physical variable driving all secondary tower design and electrical clearance decisions. By treating spacing as a rigid constraint, engineering teams can accurately plan tower windows, cross-arm spans, and safe ground distances. You must consistently balance these standard spacing limits against mandatory creepage requirements and necessary electro-mechanical load ratings.

Take proactive steps to guarantee your next transmission project avoids dimensional pitfalls. Audit your existing tower clearance designs against the exact spacing values of your proposed hardware. Always check vendor dimensional reports and physical tolerances before authorizing bulk production runs. Finally, consult directly with engineering support specialists when combining deep-ribbed pollution profiles with restricted string length limits.

FAQ

Q: What is the standard spacing for a 120kN glass insulator?

A: The standard unit spacing for a typical 120kN suspension unit is 146 mm (approximately 5-3/4 inches). This dimension aligns with widely accepted IEC 60305 and ANSI C29.2 specifications. It provides an optimal balance between mechanical strength, adequate shed clearance, and manageable overall string lengths for standard transmission voltages.

Q: Does a glass insulator have the same spacing as a porcelain equivalent?

A: Yes. If both units are manufactured to the same precise ANSI or IEC standard class, they are dimensionally interchangeable. A 120kN porcelain disc built to ANSI Class 52-3 will feature the exact same 146 mm spacing and coupling dimensions as its glass counterpart, allowing seamless hardware integration.

Q: How does unit spacing affect the number of discs required for a 132kV line?

A: The basic insulation level (BIL) determines the total number of discs required to prevent flashover. However, unit spacing determines the final physical length of that string. If the spacing is too large, the required number of discs will create a string that hangs dangerously close to grounded tower sections.

Q: Are there acceptable tolerances for spacing in bulk orders?

A: Yes. International manufacturing standards permit specific dimensional tolerances to account for casting and assembly variations. The standard tolerance range is typically calculated using the formula ± (0.04d + 1.5) mm, where "d" represents the specified dimension. Tight adherence to this formula prevents compounded length errors in long strings.
