In the world of high-voltage power transmission, the enemy is often invisible. Leakage currents, triggered by environmental contaminants like salt spray or industrial dust, can lead to catastrophic flashovers. Engineers battle these issues by focusing on one critical metric: creepage distance. To solve the problem of power loss in harsh environments, the industry has turned to specialized Toughened Glass Insulators. Specifically, the double shed design has emerged as a superior engineering solution.
This article explores how maximizing creepage distance through double shed geometry provides distinct advantages. We will look at why these Glass Insulators are the preferred choice for transmission lines in high-pollution zones. From their Transparent nature that aids in inspection to their mechanical toughness, we will break down why this specific design is a "must-have" for modern electrical infrastructure.
Creepage distance is the shortest path along the surface of an insulating material between two conductive parts. For High voltage Glass Insulators, this path is vital. If the surface becomes wet or dirty, it becomes more conductive. A longer creepage distance acts as a hurdle, making it harder for electricity to "track" across the surface.
When moisture mixes with dust on Glass Insulators, it creates a conductive film. This film allows small sparks to dance across the surface. Over time, these sparks carbonize the path, leading to a full electrical breakdown. By using a double shed design, we physically increase the length of this path without significantly increasing the overall height of the insulator string. This is crucial for transmission lines where vertical space is limited by tower design.

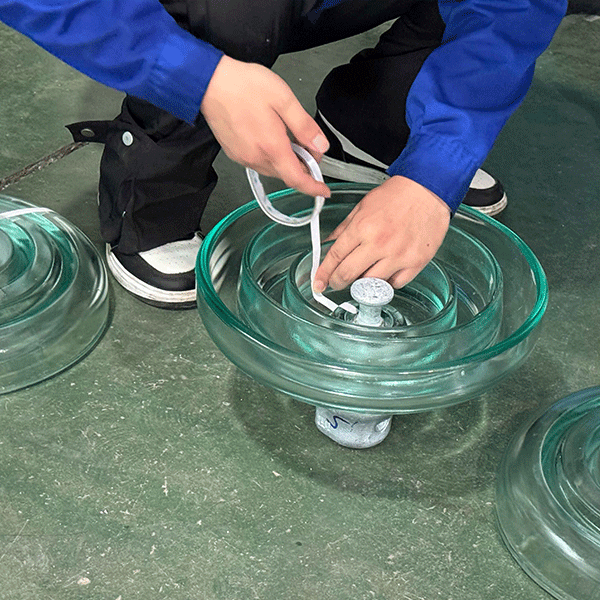

Standard profiles have a single "skirt." In contrast, the double shed Glass Insulators feature an extra rib or an extended secondary skirt. This design effectively doubles the "dry" area under the shed during rain. Even if the top surface is soaked, the protected area underneath remains resistive. This engineering trick maintains high insulation levels even during the worst coastal storms or monsoon seasons.
The double shed profile isn't just about length; it is about strategic geometry. These Anti-pollution Glass Insulators are specifically engineered to handle aerodynamic flow. They prevent the accumulation of pollutants in the first place, which is the "preventative medicine" of the power world.
The double shed shape creates air turbulence. As wind passes over the Toughened Glass Insulators, it swirls into the deep recesses between the sheds. This action helps blow away dry dust before it can settle and bond with the surface. It makes the unit Anti-pollution by design rather than just by material.
In heavy downpours, water can form a continuous stream from the edge of one shed to the next. This is called bridging. A standard insulator might succumb to this, creating a short circuit. However, the staggered edges of a double shed Glass Insulator break the water flow. The water drips off the outer shed before it can reach the inner shed, preserving the air gap. This feature is particularly valued for railway electrification, where consistent power delivery is non-negotiable for train schedules.
While the shape is important, the material is the backbone. Toughened Glass Insulators offer mechanical and thermal properties that polymers simply cannot match. They are built to survive for decades in the most grueling climates on Earth.
We create these insulators through a rapid cooling process. This places the outer surface into high compression while the interior remains in tension. This internal stress makes the Glass Insulators incredibly resistant to impact. If a rock hits them, they don't just crack; they remain structurally sound.
Unlike composite or porcelain options, glass is an inorganic material. It does not "age" under UV radiation. It remains Transparent and functionally identical on day one and year 10,000 (conceptually). For engineers, this predictability is a dream. It allows for precise maintenance scheduling and reduces the risk of unexpected failures in High voltage networks.
Pollution is the leading cause of insulator flashover. Whether it is salt from the ocean or soot from a factory, the double shed Anti-pollution Glass Insulators are the primary defense.
In coastal regions, salt fog is a daily reality. The salt stays on the insulator, and the fog provides the moisture. This is a recipe for disaster. The deep, sheltered valleys of the double shed profile prevent the fog from reaching the entire creepage path. By keeping a portion of the path dry, the Glass Insulators maintain their dielectric strength.
Industrial areas often have "acid rain" or chemical vapors. Toughened Glass Insulators are chemically inert. They won't react with sulfur or nitrogen compounds in the air. This keeps the surface smooth. A smooth surface is harder for dirt to stick to, further enhancing the Anti-pollution effects.
When maintenance is required, the Transparent nature of the glass helps. You can see through the sheds to identify where dirt has built up. Additionally, glass is easy to power-wash. You don't have to worry about "chalking" or surface erosion that affects polymer insulators.
Glass Insulators for railway electrification face unique challenges. They must handle high-frequency vibrations from passing trains and heavy soot from old-style locomotives or nearby industrial tracks.
The mechanical strength of Toughened Glass Insulators makes them ideal for the vibrating environment of a railway catenary system. They don't fatigue like metal or brittle porcelain. They hold the heavy copper lines in place through millions of vibration cycles.
One "expert" advantage of glass is how it fails. If a Glass Insulator is damaged beyond its limit, the shell shatters into small, blunt pieces. However, the internal "stub" stays intact, keeping the line physically supported. This prevents the power line from falling onto the tracks, which is a massive safety advantage for rail operators.
A major reason why utilities prefer Transparent Glass Insulators is the ease of inspection. When you have thousands of miles of transmission lines, you can't climb every tower to check for cracks.
When a porcelain insulator has an internal defect, you can't see it from the ground. It looks fine until it explodes. With Transparent toughened glass, an electrical "puncture" or internal crack causes the entire shell to shatter and fall away. This is called "self-shattering" upon failure.
Linemen using binoculars or drones can easily spot a "shattered" disc in a string of Glass Insulators. Because the remaining stub still holds the mechanical load, there is no immediate danger of the line falling. The utility company can simply schedule a replacement during the next routine window. This visual indicator saves millions in diagnostic equipment and man-hours.
To truly understand the "Expert Insight," we must compare the performance metrics. The following table illustrates why the engineering choice usually leans toward double shed designs in high-stakes environments.
| Performance Metric | Standard Profile Glass | Double Shed Profile Glass |
| Creepage Distance | Baseline (100%) | High (130% - 150%) |
| Rain Performance | Moderate | Superior (Anti-bridging) |
| Cleaning Requirement | Frequent in polluted areas | Minimal (Self-cleaning) |
| Weight | Lighter | Slightly Heavier |
| Cost | Lower | Higher (Value optimized) |
As shown, the double shed Glass Insulators offer significantly more protection for a marginal increase in weight and initial cost. For High voltage systems, the "value over time" is much higher due to reduced maintenance.
How you install these Glass Insulators for transmission lines matters just as much as the design itself. Experts follow specific stringing configurations to maximize the benefits of the double shed geometry.
In high-wind areas, engineers often use a "V-string" configuration. This limits the "swing" of the insulators. When you combine a V-string with double shed Toughened Glass Insulators, you create a rock-solid electrical barrier that can withstand hurricane-force winds without the sheds clashing or the creepage distance being compromised by horizontal rain.
The spacing between the discs in a string must be calculated carefully. If they are too close, the air gap between the double sheds is reduced. Experts ensure the "arc distance" (the path through the air) is balanced with the "creepage distance" (the path along the glass). This balance ensures that if a surge occurs, the arc stays away from the glass surface, preventing heat damage.
Maximizing creepage distance is the primary defense against power outages in our increasingly electrified world. Double shed Glass Insulators represent the pinnacle of this strategy. By combining the natural durability of Toughened glass with a geometry that fights pollution and rain, we create a resilient grid. These High voltage components are not just insulators; they are engineered safeguards for transmission lines and railway electrification worldwide. Their Transparent beauty is matched only by their mechanical brawn.
Q1: Why are Glass Insulators often preferred over porcelain?
They offer better visual inspection through their Transparent shell. Also, Toughened glass has a higher mechanical impact resistance and does not age under UV light.
Q2: Does a double shed design make the insulator harder to clean?
Actually, it’s the opposite. The aerodynamic profile encourages wind to blow out dust. When manual cleaning is needed, the glass surface allows dirt to slide off much easier than the porous surface of aged porcelain.
Q3: Is the double shed design necessary for inland, dry areas?
In very clean, dry areas, a standard profile may be sufficient. However, for any area with seasonal rain or industrial dust, the Anti-pollution benefits of the double shed design provide a critical safety margin.
At our facility, we don't just "make" insulators; we engineer them. Our factory is equipped with the latest toughening furnaces and automated testing lines that subject every disc to rigorous thermal and mechanical stress tests. We take pride in our ability to produce High-quality Glass Insulators that meet the strictest international standards (IEC, ANSI, and more).
Our strength lies in our heritage and our relentless pursuit of innovation. We have supplied Toughened Glass Insulators for transmission lines in some of the most challenging environments on the planet—from salt-drenched tropical coasts to the frozen stretches of high-altitude mountain ranges. We understand that the stability of the grid depends on the smallest details. That is why our double shed designs are crafted with precision, ensuring that our B2B partners receive a product that is not only Transparent and Durable but also a leader in Anti-pollution performance. We stand ready to support your next project with the strength and expertise that only a dedicated manufacturer can provide.
