Every element in a power transmission system plays a role in reliability—but few components are as deceptively critical as the transformer bushing. Serving as the link between internal transformer conductors and the external power system, bushings must manage extremely high voltages, endure environmental stress, and provide flawless insulation across years of service. When they fail, the results can be catastrophic: fire, unplanned outages, equipment damage, and even personnel injury. At NJREC, we understand that high-quality transformer bushings are not just a component—they’re a cornerstone of electrical reliability. Whether you manage power transformers, pad-mounted units, or industrial switchgear, understanding how bushings affect reliability and safety is essential for protecting your infrastructure.



Why Do Bushings Fail and What Are Common Failure Modes?

Hidden Weaknesses That Lead to Critical Failures

Despite their sturdy appearance, transformer bushings can fail in several ways—many of which begin at the microscopic level and gradually evolve into serious threats.

Stress Concentration: Voltage gradients are highest at the conductor-bushing interface. Without proper grading or material uniformity, these areas may suffer partial discharge or corona effects, leading to dielectric degradation.

Insulation Breakdown: Over time, moisture ingress, temperature cycling, or contamination can degrade the internal insulation structure. This can lead to partial discharges, internal flashovers, or long-term dielectric failure.

Thermal and Electrical Arcing: Internal voids, air bubbles, or manufacturing defects may provide initiation points for arcing. Once initiated, arcing rapidly escalates, often destroying the bushing and damaging the transformer’s active parts.

Several studies, including those by INMR and IEEE working groups, indicate that bushing failures account for up to 20% of transformer failures in high-voltage networks.

At NJREC, we mitigate these risks by engineering bushings with high-precision insulation casting, advanced capacitive grading designs, and strict quality control protocols aligned with global standards.



How Early Detection and Monitoring Work?

Proactive Tools to Avoid Costly Downtime

Modern asset management demands predictive rather than reactive maintenance. Fortunately, transformer bushings can now be equipped with early detection systems that identify deterioration before failure occurs.

Dissolved Gas Analysis (DGA): Often used to monitor oil-filled bushings. The presence of gases like acetylene or hydrogen suggests arcing or insulation overheating.

Online Partial Discharge Sensors: These sensors track real-time activity within the bushing insulation, flagging potential weak points or surface tracking events.

Computational Intelligence (AI/ML): Advanced models can learn from sensor data across transformer fleets, predicting failure probabilities and optimizing inspection schedules.

Incorporating these systems helps utilities and industrial operators avoid unexpected shutdowns while extending bushing service life. NJREC offers bushings pre-equipped with sensor integration options, especially for large-scale power transformers where the cost of failure is high.



Do Standards Help Prevent Failures?

International Guidelines That Drive Quality

High-quality transformer bushings are not created by accident—they are the result of meticulous adherence to international safety, dimensional, and dielectric standards. At NJREC, all our bushings conform to the most rigorous specifications:

ANSI (American National Standards Institute): Defines dimensional and performance requirements, especially for North American markets.

DIN (Deutsches Institut für Normung): Common in European applications, especially for indoor and compact transformer systems.

EN/IEC: Sets global benchmarks for insulation coordination, pollution classes, creepage distances, and testing protocols.

These standards ensure that bushings can withstand voltage surges, environmental stress, and mechanical forces in service. Certification isn’t just paperwork—it confirms that the product has passed full testing and has been proven under simulated real-world stress.

For example, all NJREC transformer bushings are tested for:

Lightning impulse withstand

Power frequency insulation

Partial discharge inception/extinction levels

Thermal overload endurance

Pollution resistance under salt fog and humidity cycles

Test reports are supplied with each product, offering transparency and traceability.



What Applications Suffer Most from Bushing Issues?

Critical Points of Failure Across Power Systems

While every transformer depends on its bushings, some applications are especially vulnerable to the consequences of bushing failure:

Power Transformers (66 kV and above): These are often located in critical substations feeding industrial zones or city grids. A bushing failure here can interrupt power to thousands and result in costly service interruptions.

Distribution Transformers: These are more numerous and distributed across the grid. Failures in pad-mounted transformers may affect localized areas but are expensive to replace due to installation complexity.

Switchgear and Compact Dry-Type Units: Failures in indoor systems are often more difficult to detect early. Once a bushing fails inside a sealed cabinet, it may cause arc faults or damage neighboring components.

Renewable Energy Substations: Bushing failures in solar or wind systems—especially in remote areas—lead to prolonged downtimes due to access challenges and lack of spares.

By selecting high-quality, fully certified bushings and matching them correctly to voltage levels and environmental categories, these risks can be significantly reduced.



How Can Premium Bushings Reduce Downtime?

Engineered for Performance and Availability

One of the most effective strategies for maintaining transformer uptime is to invest in premium bushings that are both reliable and quickly available. At NJREC, we support this with several approaches:

Full Type Test Reports: Every transformer bushing is delivered with documentation validating its insulation performance, mechanical endurance, and pollution resistance.

Custom-Engineered Options: For demanding applications or constrained designs, NJREC can develop bushings with specific creepage distances, epoxy or porcelain materials, or integrated monitoring features.

Faster Production and Stock Availability: We maintain ready stock for ANSI, DIN, and EN standard bushings and can produce custom solutions with delivery 20% faster than typical industry timelines.

Material Excellence: Epoxy resin bushings are cast under vacuum to avoid air bubbles, while porcelain bushings are kiln-fired for homogenous density and crack resistance.

These measures reduce the likelihood of bushing-related transformer failures and shorten recovery times in the event of replacement.

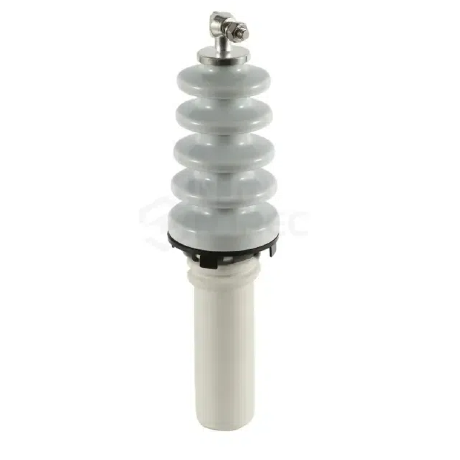

 Transformer Bushing

Conclusion

In today’s interconnected and energy-dependent world, system uptime is everything—and transformer bushings are essential to ensuring that uptime. Their role in maintaining insulation integrity and handling mechanical stress is fundamental to the safe operation of power transformers and distribution networks. By selecting certified, premium bushings from NJREC, you gain not only superior materials and performance but also reliability, early-warning compatibility, and long-term cost efficiency. Contact us today to explore our transformer bushing solutions and enhance the safety and performance of your power system.
