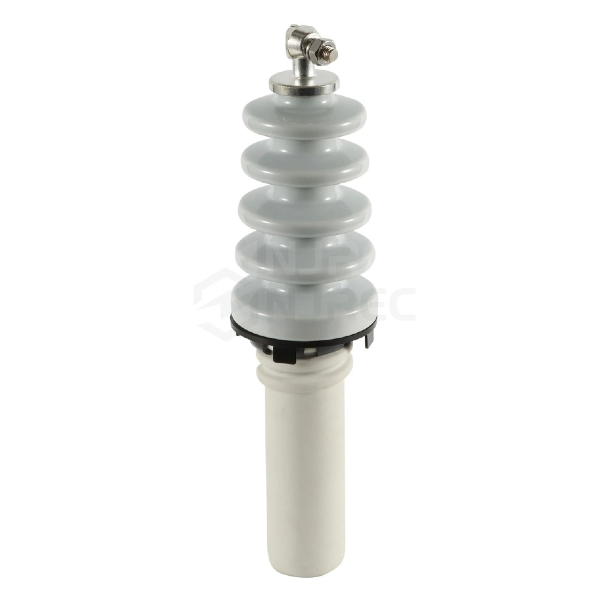

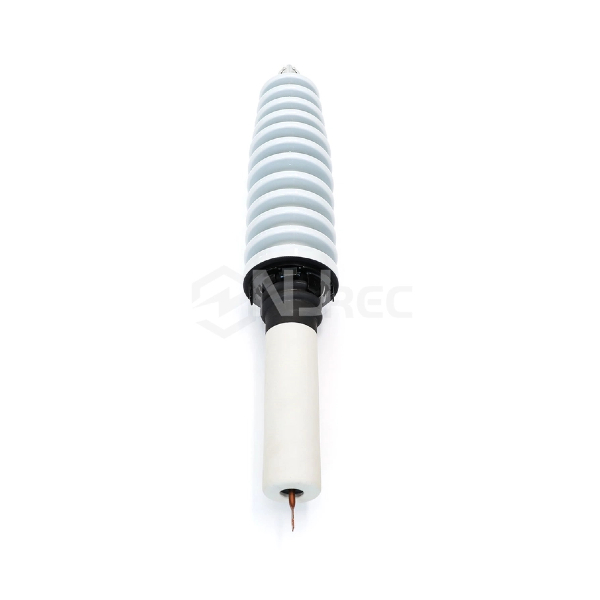

High voltage bushings are critical components in electrical power systems, ensuring the safe and efficient transfer of electrical energy. These bushings provide an insulating barrier between the high-voltage circuits of a transformer, circuit breaker, or switchgear and the grounded metallic parts of the equipment. Their function is crucial because they prevent electrical faults by providing proper insulation for electrical conductors as they pass through the metallic walls of electrical equipment.
High voltage bushings are exposed to a range of mechanical and electrical stresses over time, which can lead to wear and failure. Regular maintenance and testing are essential to identify early signs of failure and ensure that the bushings are operating within their designed parameters. By proactively testing and maintaining high voltage bushings, power systems can avoid costly outages, reduce downtime, and extend the life of electrical equipment.
High voltage bushings are made up of several integral components, each contributing to the overall performance of the bushing.
High voltage bushings generally consist of the following key components:
Insulator: The insulator is the primary element responsible for preventing electrical leakage and ensuring that the bushing can safely withstand high voltages. The insulator is usually made from porcelain, glass, or composite materials.
Conductor: This component allows the electrical current to pass through the bushing. It is typically a copper or aluminum conductor.
Sealing Material: Seals are used to prevent moisture and contaminants from entering the bushing. This is vital for the bushing’s longevity, as moisture can degrade the insulating material.
Bushing Body: The main housing for the insulator and conductor. This part is usually designed for strength and durability.
High voltage bushings are made from a variety of materials, each chosen for its unique properties:
Porcelain: Known for its durability and resistance to high temperatures, porcelain has been a long-standing material used in bushings.
Composite Materials: Composite bushings are lighter than porcelain and offer better resistance to mechanical damage and environmental factors.
Epoxy: Epoxy bushings are gaining popularity due to their high resistance to electrical and mechanical stresses.
The choice of materials impacts the bushing’s performance, particularly in terms of insulation strength, temperature tolerance, and physical robustness.
Over time, high voltage bushings may show signs of wear or failure, which can lead to hazardous conditions and potential system breakdowns. Identifying these signs early on can help prevent major issues.
Overheating: Excessive heat around the bushing can indicate that it is struggling to handle the electrical load. It may also be a sign of a failing seal or conductor.
Electrical Discharge: The presence of partial discharge, such as sparking or arcing, is an indication of insulation breakdown. This is a serious issue that requires immediate attention.
Cracks or Physical Damage: Visible cracks in the insulator or the bushing body can compromise the bushing’s ability to handle high voltage.
Oil Leakage: For oil-filled bushings, leaks or drops in oil level indicate a breach in the bushing that could lead to complete failure if not addressed.
Failure of a high voltage bushing can lead to:
Electrical Outages: A bushing failure can interrupt the flow of electricity, causing widespread outages.
Equipment Damage: High voltage faults can lead to severe damage to transformers, circuit breakers, and other electrical components.
Safety Hazards: Faulty bushings can pose risks such as electrical fires or electrocution, endangering both equipment and personnel.
Proper preventive maintenance is crucial for extending the life of high voltage bushings and avoiding costly repairs.
Regular inspections are necessary to detect issues before they become serious. Maintenance staff should follow a checklist that includes:
Visual inspection of the bushing body for cracks, discoloration, or other visible damage.
Checking the seals for signs of wear or leakage.
Verifying that the bushing is clean and free of debris or contaminants.
Cleaning bushings helps maintain their insulating properties. It is important to remove dust, dirt, and moisture, which can cause electrical leakage. For bushings with moving parts or seals, lubrication may be necessary to reduce friction and wear.
Environmental factors such as humidity, temperature fluctuations, and air pollution can accelerate the degradation of bushings. Proper maintenance procedures should take these into account, especially in harsh environments.
Testing is an essential part of ensuring the functionality and reliability of high voltage bushings. Several testing methods are used to assess their condition.
Insulation Resistance Testing: Measures the bushing’s resistance to electrical current. A low resistance indicates poor insulation and potential failure.
Partial Discharge Testing: Detects small electrical discharges within the insulation, which can lead to eventual failure if not addressed.
Power Factor Testing: Assesses the bushing’s ability to maintain its insulating properties under voltage stress.
Mechanical Strength Testing: Tests the physical integrity of the bushing under mechanical stress.
Oil Sampling: For oil-filled bushings, oil samples can be analyzed to determine the quality and condition of the oil, which is a critical component in maintaining insulation.
High voltage bushings should undergo testing at least once a year, depending on environmental conditions and the bushing’s operational history.
For older bushings or those in critical systems, testing may need to be more frequent.
Testing Method | Purpose | Frequency | Application |
Insulation Resistance | Measures bushing's resistance to electrical leakage | Annually or as needed | Checks insulation integrity |
Partial Discharge Testing | Detects small electrical discharges in insulation | Annually or more frequently | Early fault detection |
Mechanical Strength | Tests the physical integrity under load | Every 3-5 years | Assesses durability under stress |
Oil Sampling | Analyzes oil quality in oil-filled bushings | Annually or as needed | Checks condition of insulating oil |
The longevity of high voltage bushings is influenced by several factors, from environmental conditions to operational stresses.
Over time, the insulating materials used in high voltage bushings will degrade. Factors such as exposure to UV radiation, temperature fluctuations, and moisture infiltration can cause the insulation to lose its effectiveness.
Frequent Switching: The continuous switching of electrical circuits can subject bushings to mechanical and electrical stresses.
Overvoltage: Electrical surges or spikes can damage the insulating material and reduce the bushing’s lifespan.
Load Fluctuations: Constant changes in load can lead to thermal cycling, which weakens the bushing over time.
Replacing high voltage bushings requires careful consideration to ensure the new bushing meets the requirements of the system.
When selecting a replacement bushing, consider:
Voltage Rating: Ensure that the new bushing is rated for the correct voltage for the system.
Current Capacity: Verify that the bushing can handle the expected current load.
Material Compatibility: Choose materials that are compatible with the operating conditions and environment.
After installation, conduct a full set of tests to ensure that the new bushing is functioning properly. These tests should include insulation resistance and partial discharge testing.
High voltage bushings are essential to the reliability and longevity of electrical systems. Ensuring their performance through proper maintenance, regular testing, and timely replacement is key to avoiding unexpected downtimes and costly repairs. At NJREC, we understand the importance of keeping these critical components in optimal condition. By staying ahead of potential issues and adhering to best practices in maintenance, we help power utilities extend the service life of their equipment.
Looking towards the future, advancements in smart sensor technology and real-time monitoring systems are revolutionizing the way we approach high voltage bushing maintenance. These innovations enable predictive maintenance, providing early fault detection and minimizing operational disruptions.
For utilities seeking to enhance their bushing management and leverage the latest technological advancements, we invite you to explore how our solutions can meet your needs. Our expertise and cutting-edge products ensure that your electrical systems remain reliable, safe, and efficient. Contact us today to learn more about how we can assist you in optimizing your high voltage bushing operations.
Testing should generally be done once a year, although more frequent testing is recommended for bushings in harsh environments or older equipment.
Bushing failure can be caused by material degradation, mechanical stress, overvoltage, or environmental factors like moisture infiltration.
Partial discharge testing is the primary method used to detect early signs of insulation breakdown within bushings.
Yes, environmental conditions such as humidity, temperature, and pollution can accelerate wear and degradation, leading to failure if not properly managed.
A bushing should be replaced when it shows significant signs of physical damage, if testing indicates severe degradation, or when repair is no longer cost-effective.
