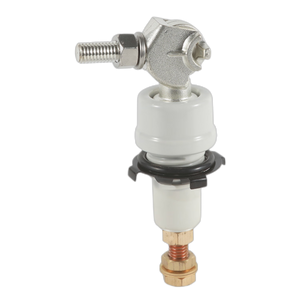

In high-voltage equipment, the reliability of a single component can determine the overall stability of the power system. Among these critical parts, the transformer bushing plays a central role in safely guiding current through grounded transformer tanks. For operators and asset managers, extending the service life of this component means fewer failures, lower risk of unplanned outages, and greater return on equipment investment. Nanjing Rainbow Electric Co., Ltd. (NJREC) provides a complete portfolio of transformer bushings — including ANSI Transformer Bushing, DIN Transformer Bushing, and EN Transformer Bushing types — designed and tested for dependable operation in demanding environments. This article shares best practices in installation, monitoring, and maintenance to help ensure that transformer bushings deliver long and reliable service.
The lifespan of a transformer bushing often depends on the quality of its initial installation. Even high-grade products can fail prematurely if mounted incorrectly or energized without sufficient checks.
During installation, every mechanical detail matters. The torque sequence for bolts on the bushing flange must be followed in a cross-pattern to distribute pressure evenly. This prevents uneven stress that could crack porcelain insulators or deform epoxy bushings. Gaskets and seals must be checked for correct positioning and compression to avoid oil leaks, which not only cause insulation degradation but also accelerate aging of the bushing.
For porcelain and epoxy-insulated bushings alike, surface cleanliness is essential. Dust or moisture trapped during mounting can initiate surface tracking under voltage stress. Ensuring a clean interface between the bushing and transformer tank flange is a small step that pays large dividends in reliability.
Before a newly installed bushing is energized, electrical verification is mandatory. Continuity checks confirm that the conductor is correctly installed, while insulation resistance testing validates the integrity of insulation. Contact torques for current-carrying connections should be measured according to supplier instructions to avoid overheating under load. Such checks help detect minor installation issues that could otherwise escalate into failures once the transformer is in service.
Suppliers should provide complete documentation to support correct installation. NJREC, for example, delivers test certificates, torque specifications, and technical drawings with each ANSI, DIN, or EN standard bushing. These documents give installers confidence and create a reference trail for future maintenance teams. Keeping accurate records of these values ensures that field personnel always know what parameters to verify.
After installation, commissioning is the first step in confirming that the bushing is ready for long-term service.
Bushings usually undergo power-frequency withstand tests, partial discharge measurements, and tan-delta (power factor) checks at the factory. However, repeating selected tests on site before energization provides assurance that no damage occurred during transport or installation. Partial discharge activity at commissioning stage, for instance, may indicate mechanical stress or moisture intrusion.
Every utility should use a clear acceptance checklist before signing off a new bushing. Items include visual inspection for cracks or chips, verification of nameplate data, comparison of measured capacitance values against factory records, and confirmation of proper grounding connections. This step formalizes the quality assurance process and avoids missing small but important details.
Spare bushings are valuable assets but can deteriorate if stored improperly. Bushings should remain in their original packaging in a dry, covered area, with porcelain surfaces protected from impact. Long-term storage requires periodic inspection for moisture ingress or corrosion. Maintaining spares in ready condition allows operators to minimize downtime when replacements are needed.
Even the best installations require ongoing observation. On-line monitoring allows operators to detect gradual changes before they result in failure.
Modern monitoring systems offer a range of parameters. Leakage current monitoring identifies insulation degradation, while partial discharge detection reveals localized defects. Capacitance and tan-delta measurements track long-term aging, providing early warnings of dielectric breakdown. Dedicated bushing monitors integrate these parameters into real-time dashboards, enabling operators to act proactively rather than reactively.
Understanding alarm thresholds is vital for avoiding unnecessary interventions or overlooking critical issues. For example, a slight increase in leakage current may warrant trending and closer observation, while a sudden spike demands immediate inspection. Defining response levels helps prioritize actions and allocate resources efficiently, ensuring safety without overburdening maintenance teams.
A practical monitoring schedule combines daily, weekly, and annual activities. Operators may log leakage currents daily, review summarized trends weekly, and perform detailed capacitance and tan-delta tests annually. Such structured monitoring creates a reliable database of bushing health, helping teams plan maintenance and avoid emergency replacements.
Despite best practices, bushings can fail. Recognizing patterns and knowing when to replace rather than repair is a core part of asset management.
Typical failure modes include oil seal leaks, surface tracking from contamination, and cracks in porcelain housings. Each mode has distinct signatures: oil leaks appear as wet spots, tracking manifests as blackened lines, and cracks are often visible upon inspection. Early detection limits damage to the transformer itself.
Some issues can be addressed without replacement. For example, minor gasket leaks may be repaired by resealing, and surface contamination can be cleaned. However, cracks in porcelain or abnormal capacitance shifts indicate deeper insulation problems that necessitate replacement. Attempting to repair in such cases only delays inevitable failure.
Operators must balance cost and downtime in making decisions. A structured decision tree — weighing repair feasibility, remaining service life, and risk of collateral damage — helps ensure consistent outcomes. Replacement often proves more economical in the long run, especially when downtime costs outweigh repair expenses.
Adhering to recognized standards ensures that bushing maintenance aligns with industry best practice.
IEEE C57 series standards, IEC recommendations, and national specifications provide benchmarks for acceptance and diagnostic testing. Following these guidelines ensures compatibility and creates a shared language between operators, suppliers, and regulators. NJREC bushings comply with ANSI, DIN, and EN requirements, giving users confidence in international acceptance.
Comprehensive reporting should include test results, inspection notes, photographs of critical observations, and comparison with baseline values. Maintenance handovers must also specify alarm levels, previous repairs, and expected service intervals. Detailed documentation ensures continuity even when teams change, preventing knowledge loss.
Prolonging the life of a transformer bushing requires discipline across installation, commissioning, monitoring, and reporting. By following structured best practices, operators can avoid costly failures and maximize transformer uptime. NJREC supports this effort with a complete range of transformer bushings — from ANSI Transformer Bushing to DIN and EN Transformer Bushing types — engineered for durability and tested to international standards. To develop a tailored maintenance plan or explore monitoring solutions, contact us today and discover how NJREC can help strengthen your power system reliability.
