Wall Bushing vs Transformer Bushing: What’s the Difference?

Electrical bushings play a critical role in modern substation and facility design. Specifying the wrong component can lead to catastrophic dielectric failure or severe mechanical breakdown. All bushings share one fundamental purpose. They allow an energized conductor to safely pass through a grounded barrier. However, their distinct operational environments heavily dictate their internal engineering. Wall installations face vastly different physical and thermal challenges compared to active transformer tanks.

We created this technical breakdown to help electrical engineers and procurement teams evaluate, specify, and differentiate between wall and transformer bushings for high-voltage applications. You will learn how mounting angles, insulation mediums, and environmental stresses shape the design of each component. By understanding these exact differences, you can confidently select the right insulation architecture for your infrastructure and prevent critical system failures before they occur.

Key Takeaways

• Application Scope: Transformer bushings manage the interface between internal cooling/insulating mediums (like oil) and external environments; wall bushings manage air-to-air or indoor-to-outdoor transitions through architectural barriers.

• Insulation Dynamics: Transformer types must account for localized thermal hotspots and fluid containment, whereas a High Voltage Dry Wall Bushing relies on solid or gas insulation optimized for structural penetration.

• Mounting & Stress: Wall bushings prioritize horizontal or slight-angle mechanical stability across thick barriers; transformer bushings are engineered to handle cantilever loads from line connections while maintaining tank seals.

• Maintenance Divergence: OIP (Oil Impregnated Paper) transformer bushings require strict capacitance and power factor testing, whereas dry wall bushings generally focus on visual inspection and surface cleaning.

The Core Architectural Differences in High-Voltage Bushings

Defining the Grounded Barrier

The physical barrier directly dictates the core design of the bushing. You cannot separate the component from its operating environment. For a transformer, the barrier consists of a pressurized, heated, oil-filled steel tank. This tank vibrates continuously due to electromagnetic forces. It experiences significant temperature fluctuations based on grid load. The bushing must seal perfectly against this dynamic surface.

Conversely, wall environments present static conditions. The barrier is a non-pressurized concrete, brick, or metal architectural structure. It does not vibrate heavily. It does not contain pressurized fluids. Therefore, wall bushings utilize different flange designs. They prioritize spanning thick architectural partitions rather than sealing volatile chemical environments.

Dielectric Grading Requirements

High-voltage components require precise electrical stress control. Manufacturers use capacitive grading foils to distribute voltage stress evenly across the insulation. This grading localizes differently based on the surrounding medium.

One end of a transformer unit is fully immersed in dielectric fluid. Transformer oil provides much higher dielectric strength than ambient air. This allows the lower portion of the bushing to remain shorter and more compact. When utilizing a wall unit, both ends operate in ambient air or SF6 gas. Air is a weaker insulator. Therefore, both ends of a wall bushing require longer clearances and distinct grading profiles to prevent electrical flashovers.

Thermal Management Realities

Thermal dissipation strategies vary drastically between the two applications. Wall deployments generally rely on passive ambient cooling. The primary heat source is the resistive loss from the internal conductor. Air currents in the facility or switchyard provide sufficient cooling.

Transformer units face active thermal challenges. They operate directly above extremely hot copper windings. The lower section absorbs heat directly from the transformer oil. Engineers must design these bushings to dissipate heat rapidly. If they fail to shed this thermal energy, the internal insulation layers will degrade prematurely.

Best Practice: Always request thermal modeling data from your manufacturer. You need to verify the component can handle localized heat spikes under peak load conditions.

Evaluating Transformer Bushing Specifications

Operating Environment & Fluid Interfaces

A Transformer Bushing must maintain a flawless lower-end seal. It acts as a plug for the transformer tank. If the seal fails, highly flammable dielectric oil will leak. This creates a severe environmental and fire hazard.

Engineers must carefully evaluate thermal expansion parameters. The internal conductor, the flange, and the housing expand at different rates as the transformer heats up. Premium gaskets and robust clamping mechanisms are mandatory. They compensate for these differential expansion rates to prevent oil seepage over decades of use.

OIP Transformer Bushing Considerations

Historically, oil-impregnated paper dominated the high-voltage market. Many facilities still rely on an OIP Transformer Bushing for reliable performance. These units feature kraft paper wrapped tightly around the central conductor. Manufacturers then impregnate this paper under vacuum using highly refined mineral oil.

You must evaluate specific criteria when specifying OIP technology. Moisture ingress is a primary risk. Even microscopic amounts of water will degrade the paper insulation rapidly. Furthermore, mounting angles are strictly restricted. You must mount OIP units near vertically. If you tilt them too far, the internal oil shifts. This exposes the top grading layers to gas or air. Un-insulated grading layers will eventually cause a catastrophic flashover.

Routine diagnostic requirements are intensive. Maintenance teams must perform regular Dissolved Gas Analysis (DGA). They must also conduct capacitance and power factor (Tan Delta) testing to monitor the internal insulation health.

Mechanical Load (Cantilever Stress)

Terminals endure immense external physical forces. You must evaluate the component's ability to withstand heavy external busbars. High winds and heavy ice accumulation add further dynamic stress. Short-circuit events generate massive electro-dynamic forces across the connections.

We call this bending force "cantilever stress." The insulator and the mounting flange must absorb this energy. If the porcelain or composite housing flexes too much, it can crack. More importantly, excessive cantilever stress can break the delicate tank seal. This instantly compromises the entire transformer system.

Specifying Wall Bushings for Facility and Substation Routing

Structural and Environmental Demands

Wall deployments serve a highly specific primary use case. They route high-voltage power through physical partitions safely. A common scenario involves moving power from an outdoor switchyard directly into an indoor switchgear room. This outdoor-to-indoor transition presents unique environmental demands on a single component.

The bushing must span thick concrete walls safely. It must isolate the energized conductor from the grounded rebar inside the concrete. It also bridges two completely different microclimates. One side faces rain, UV radiation, and pollution. The other side faces a controlled, dry indoor environment.

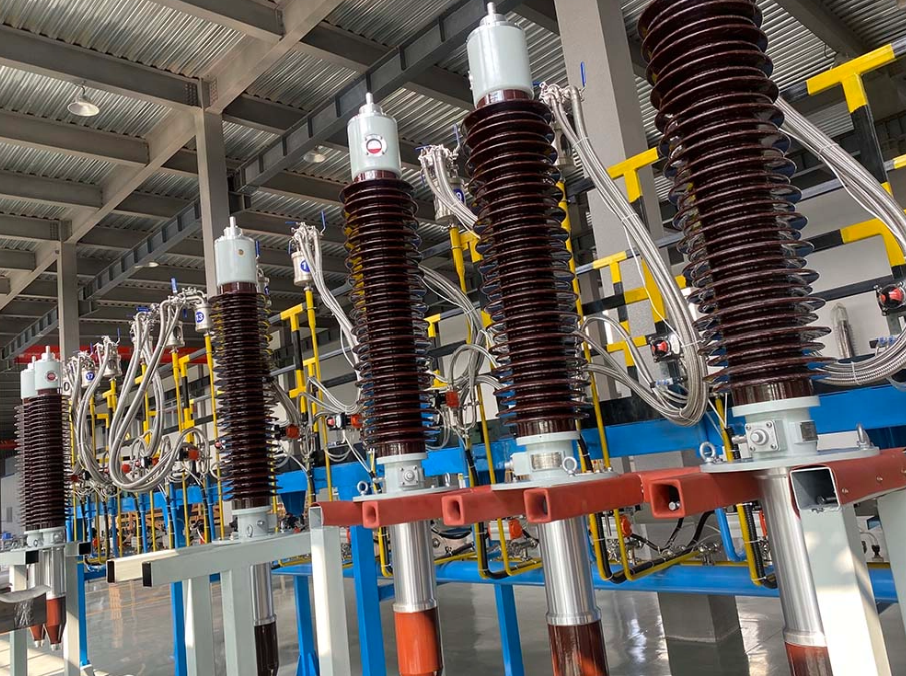

The Shift to High Voltage Dry Wall Bushing Designs

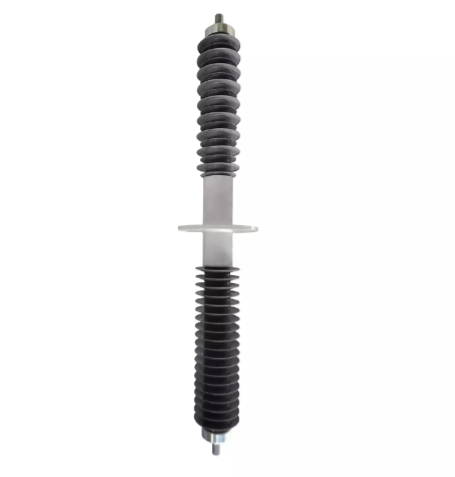

The industry is rapidly transitioning away from fluid-filled wall units. Modern facilities demand superior safety profiles. A High Voltage Dry Wall Bushing utilizes solid insulation technologies. Manufacturers primarily use Resin Impregnated Paper (RIP), Resin Impregnated Synthetics (RIS), or cast epoxy.

These dry designs offer tremendous evaluation benefits. First, they eliminate all leak risks. There is no oil to spill. Second, they provide strict fire compliance for indoor facility penetrations. Solid epoxy will not ignite like mineral oil. Finally, they offer true horizontal mounting capability. Because they contain no fluids, you can install a dry Wall Bushing at any angle, including perfectly flat, without risking insulation starvation.

Creepage and Clearance Adaptations

You must adapt the exterior shedding to the environment. Shedding (or petticoat) designs differ drastically on the indoor versus outdoor sides of the exact same unit.

The outdoor side requires extended creepage paths. Alternating shed profiles help break up water streams during heavy rain. They also provide self-cleaning properties to wash away industrial pollution or coastal salt. The indoor side requires much shorter creepage distances. The controlled indoor environment lacks heavy moisture and pollution, allowing for a smoother, more compact insulator profile.

Wall Bushing vs Transformer Bushing: Technical Decision Matrix

To simplify the specification process, we have compiled the core operational differences into a comparative matrix. Engineers should reference these parameters during the initial facility design phase.

High-Voltage Bushing Specification Matrix

Common Mistake: Never assume a dry core material behaves identically in both applications. An RIP core in a transformer still requires an outer insulating envelope (often oil) inside the tank, whereas an RIP core in a wall acts entirely independently.

Implementation Risks and Procurement Pitfalls

Procuring the wrong high-voltage component introduces massive safety hazards. Engineering teams must watch out for several critical oversights during the specification process.

1. Mismatched Creepage Distances: Do not specify standard indoor/indoor units for environments requiring outdoor-rated creepage. An outdoor-to-indoor transition requires a specialized asymmetrical housing. Applying an indoor profile outside will lead to rapid surface tracking and explosive flashovers during the first major rainstorm.

2. Incorrect Mounting Angles: This remains a catastrophic risk. Procurement teams sometimes order standard OIP units intending to route power horizontally through a partition. Mounting an OIP unit horizontally shifts the internal oil. This leaves the delicate capacitive grading layers un-insulated. The unit will fail almost immediately upon energization.

3. Thermal Class Oversights: Do not apply standard ambient temperature metrics to a transformer unit. A wall unit operates near room temperature. A transformer unit sits directly above high-load copper busbars and boiling dielectric oil. Specifying a low thermal class here will bake the internal paper layers, destroying the component's lifespan.

4. Vendor Compliance & Testing Authority: Always verify rigorous manufacturing standards. Require IEEE or IEC type-test reports specific to your deployment environment. For wall penetrations, demand seismic rating certifications. For transformer units, demand short-circuit current withstand reports (IEC 60137 or IEEE C57.19.00). Ensure the vendor provides traceable factory acceptance test (FAT) data.

Below is a brief summary chart outlining the expected maintenance frequencies based on these implementation risks.

Standard Maintenance Frequency Chart

Conclusion

While both components serve as high-voltage insulating bridges, their internal architectures are strictly dictated by the barriers they penetrate. You cannot swap them interchangeably. Transformer applications demand superior fluid sealing and localized heat dissipation. Wall applications prioritize rigid mechanical stability across thick architectural gaps.

We strongly recommend auditing your exact environmental conditions before finalizing your component specifications. Document your required mounting angles, ambient versus immersed temperatures, and local fire safety regulations. These details will dictate whether you need legacy OIP technology or modern dry epoxy designs.

Do not guess when grid stability is at stake. Consult directly with a specialized high-voltage component manufacturer. They will help you verify IEEE and IEC compliance and ensure the component perfectly matches your specific project footprint.

FAQ

Q: Can a transformer bushing be used as a wall bushing?

A: Generally, no. Most transformer bushings (especially OIP) are designed with one end optimized for oil immersion. Using them in an air-to-air wall application will result in inadequate insulation on the lower end, risking flashovers, and horizontal mounting may compromise internal oil distribution.

Q: What is the advantage of a High Voltage Dry Wall Bushing over legacy oil-filled types?

A: Dry types (like RIP or cast resin) eliminate the risk of oil leaks, are fire-resistant (crucial for building penetrations), require far less maintenance, and can be mounted at any angle, including perfectly horizontal.

Q: How do maintenance requirements differ between the two?

A: Transformer bushings require rigorous, scheduled diagnostics including capacitance, power factor (Tan Delta) testing, and oil sampling. Wall bushings, particularly dry types, mostly require visual inspections for surface tracking, structural integrity checks, and periodic cleaning of the sheds.
