Views: 2 Author: Site Editor Publish Time: 2025-10-18 Origin: Site
Condenser bushings are crucial components in high-voltage equipment, ensuring safe and reliable operation by isolating electrical circuits. Proper maintenance of these bushings is essential to extend their lifespan and prevent costly failures. This article presents a comprehensive maintenance checklist, from basic visual inspection to advanced diagnostic techniques. By following this guide, you can maintain condenser bushings effectively, detect early signs of wear, and prevent potential issues.

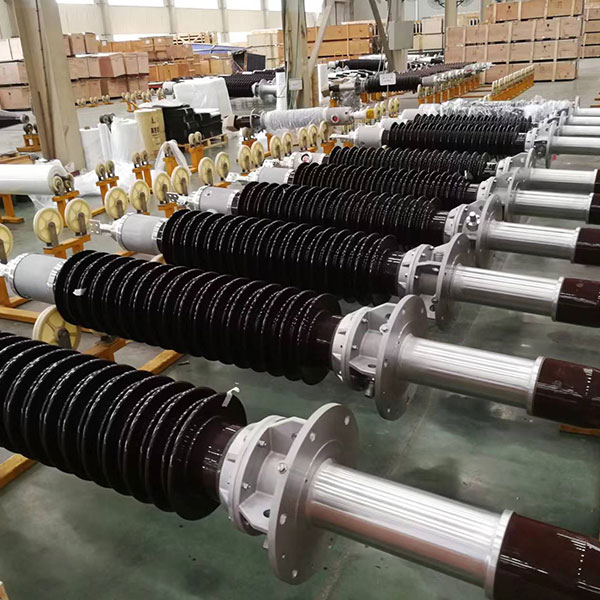

Condenser bushings are integral components of electrical transformers, switchgear, and other high-voltage equipment. They are designed to provide electrical insulation while facilitating the passage of electrical current from the high-voltage side to the grounded low-voltage side. These bushings serve as the critical interface between the internal and external electrical systems, making their proper maintenance a vital part of equipment reliability.
When condenser bushings fail, the consequences can be severe, ranging from equipment damage to service interruptions and safety hazards. As such, preventive maintenance is essential to detect issues early and avoid unexpected failures. A solid understanding of the bushing's construction and function helps technicians perform accurate inspections and implement effective maintenance practices.
The first step in any condenser bushing maintenance routine is a comprehensive visual inspection. This inspection is relatively simple but crucial for identifying obvious issues that could indicate potential failures. Visual checks should be conducted periodically and especially after any maintenance or unusual operating conditions.
External Damage: Look for signs of physical damage, such as cracks, chips, or scorch marks on the bushing’s exterior. Such damage could compromise the insulating properties of the bushing.
Corrosion: Examine the metal components for corrosion or rust, especially around the mounting points and any exposed conductive parts.
Leakage: Inspect for oil or fluid leaks, which could indicate a breach in the bushing’s sealed system, potentially causing electrical faults.
Signs of Overheating: Overheating can cause discoloration or degradation of materials. Look for heat-related signs like bubbling, softening of materials, or discoloration.
Cleaning and Dirt Build-up: Dust, dirt, and other debris can accumulate around the bushing and potentially interfere with its performance. Ensure that the bushing is clean and free from contaminants.
A thorough visual inspection is the first step in identifying potential issues before they escalate into more severe problems.
Insulation resistance testing is a vital diagnostic tool that helps assess the condition of the insulating material inside the condenser bushing. By measuring the resistance between the bushing’s conductive elements and its ground, you can evaluate whether the insulation is functioning properly.
Test Equipment: Use a megohmmeter (also known as an insulation resistance tester) to measure the resistance between the bushing’s high-voltage and ground connections.
Test Voltage: Choose an appropriate test voltage based on the bushing's rated voltage. Typically, the test voltage should be 500 V to 5,000 V, depending on the bushing’s specifications.
Resistance Values: A resistance value of 100 MΩ or higher generally indicates that the bushing’s insulation is in good condition. Values below this threshold may indicate degraded insulation, which could lead to electrical faults.
Performing insulation resistance testing regularly helps detect early signs of insulation degradation and prevent more severe electrical failures.
Capacitance and tan delta (dissipation factor) testing provides insight into the overall health of the condenser bushing. These tests measure the bushing's electrical properties under operational conditions, offering a more comprehensive view of its insulation performance.
Test Setup: Connect the bushing to a tan delta and capacitance test system.
Capacitance Measurement: This measures the bushing’s ability to store charge. An increase in capacitance may indicate moisture ingress or other insulation problems.
Tan Delta Measurement: This measures energy loss in the insulating material. A high tan delta value can indicate deteriorating insulation, while a low value signifies good insulation.
These tests should be conducted regularly, as they provide a more in-depth understanding of the bushing's performance compared to visual and resistance tests alone.
Early detection of moisture or contamination inside the bushing.
Identification of insulation degradation before failure.
Better insights into bushing health during high-voltage operations.
Some condenser bushings are filled with insulating oil, which helps dissipate heat and maintain electrical insulation. Regular monitoring of the oil level and internal pressure is necessary to ensure optimal performance.
Oil Level: If the oil level drops, it may indicate a leak or contamination. Low oil levels can compromise the insulating properties and cause overheating.
Oil Condition: Check the color and clarity of the oil. Dark or cloudy oil may suggest contamination or breakdown of the insulating material.
Pressure: Ensure the internal pressure is within acceptable ranges, as pressure deviations can signal issues such as leaks, swelling, or internal faults.
Monitoring oil and pressure levels helps maintain the effectiveness of the bushing’s insulation and prolongs its lifespan.
Acoustic monitoring is a non-invasive technique used to detect partial discharges or electrical faults within the bushing. These discharges are often the result of insulation deterioration and can lead to more severe electrical failures if left unaddressed.
Setup: Use an ultrasonic acoustic sensor to monitor sounds coming from the bushing during operation.
Analysis: Listen for abnormal noises, such as cracking, hissing, or electrical arcing. These sounds indicate partial discharges or other internal faults.
Frequency: Perform acoustic monitoring regularly to detect issues early, especially when the bushing is under load or exposed to fluctuating operational conditions.
Acoustic monitoring is a proactive approach that helps detect electrical issues before they escalate into significant failures.
Thermal imaging is an advanced diagnostic tool used to detect hot spots and temperature variations within the condenser bushing. By using an infrared camera, technicians can identify areas of overheating that may not be visible to the naked eye.
Setup: Use an infrared camera to scan the condenser bushing during operation.
Analysis: Look for temperature differences that might indicate overheating or uneven heat distribution within the bushing.
Hot Spots: Hot spots on the bushing could indicate localized failures or insulation degradation that requires further investigation.
Thermal imaging is an effective tool for identifying overheating issues early, helping prevent damage to the bushing or surrounding equipment.
Bushing discharge monitoring involves detecting and analyzing any partial discharge activity that occurs within the bushing. Partial discharges are early indicators of insulation breakdown, and their presence can help predict bushing failure.
Testing Equipment: Use a partial discharge detector to monitor the bushing for any electrical discharges.
Analysis: Analyze the frequency, intensity, and pattern of partial discharges to assess the condition of the bushing’s insulation.
Interpretation: If partial discharge activity increases, this may indicate that the bushing's insulation is degrading and may require replacement or further testing.
By monitoring partial discharges, you can detect potential failures long before they occur, allowing for timely intervention.
Maintaining condenser bushings is essential for ensuring the continued reliable operation of high-voltage electrical equipment. From regular visual inspections to advanced diagnostic techniques like thermal imaging and partial discharge monitoring, a comprehensive approach to maintenance helps identify potential issues early and prevents costly failures. By following this maintenance checklist, you can improve the lifespan of your condenser bushings, maintain equipment efficiency, and ensure the safety of your electrical systems.
Q1: How often should I inspect condenser bushings?
It's recommended to perform visual inspections and basic tests (like insulation resistance) every six months, while more advanced tests (capacitance, thermal imaging, etc.) can be performed annually or based on operational conditions.
Q2: What are the most common issues with condenser bushings?
Common issues include physical damage, oil leaks, insulation degradation, and overheating. Regular monitoring can help identify these issues before they cause equipment failure.
Q3: Can I perform bushing maintenance myself?
Basic maintenance, such as visual inspections and oil level checks, can often be performed by trained personnel. However, more advanced diagnostic tests, such as partial discharge monitoring and thermal imaging, require specialized equipment and expertise.
Q4: What is the impact of not maintaining condenser bushings?
Neglecting bushing maintenance can lead to reduced insulation performance, overheating, partial discharges, and eventual bushing failure. This can result in equipment damage, service interruptions, and safety hazards. Regular maintenance is crucial for preventing these issues.
