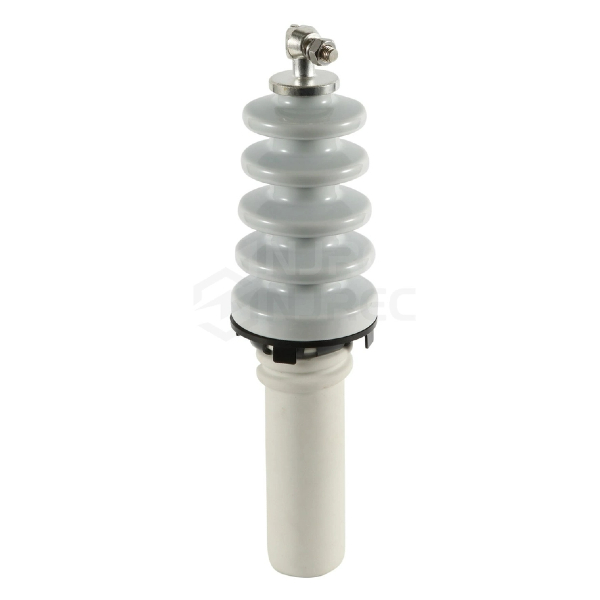

High voltage bushings are critical components in electrical systems, particularly in power transformers and other high voltage equipment. They act as the interface between electrical conductors and grounded metal parts, allowing electricity to pass through safely while maintaining insulation. Despite their robust design, these bushings are prone to various types of failures, which can lead to costly repairs, system downtime, or even safety hazards. It is essential to understand the common causes of high voltage bushing failures and how to prevent them to ensure the longevity and reliability of your electrical infrastructure.
In this article, we will discuss seven common failures that affect high voltage bushings, providing insights into the causes and practical solutions to mitigate these issues. Proactive maintenance and early detection are key to preventing these failures and extending the operational life of high voltage bushings.
Insulation breakdown is the most common cause of high voltage bushing failures. High voltage bushings rely heavily on the insulation material to separate live parts from grounded metal parts. When this insulation deteriorates, it can lead to electrical arcing, which may cause a catastrophic failure of the bushing and even the transformer it supports.
Moisture Ingress: Moisture can enter the insulation material through small cracks or poor sealing, weakening the dielectric strength of the bushing.
Temperature Fluctuations: Repeated heating and cooling cycles can cause the insulation to crack or degrade over time.
Chemical Contamination: Exposure to chemicals or pollutants can degrade the insulation material, reducing its effectiveness.
To prevent insulation breakdown, regular inspection and maintenance are crucial. Below are the key measures:
Sealing the Bushing Properly: Ensure that seals around the bushing are intact and effectively prevent moisture from entering.
Regular Inspections: Conduct regular visual and electrical inspections to detect early signs of insulation degradation.
Use of Quality Insulation Materials: Invest in high-quality insulation materials that are resistant to environmental factors such as moisture and chemicals.
Prevention Measure | Description |
Sealing | Ensure seals are intact and moisture-resistant. |
Inspections | Conduct regular inspections to detect early issues. |
Quality Materials | Use high-quality, durable insulation materials. |
Contamination, particularly dirt and pollutants, can accumulate on the surface of high voltage bushings, creating conductive paths that lead to electrical faults. Over time, this can cause insulation failure or short circuits. Furthermore, dirt can trap moisture, exacerbating the effects of insulation degradation.
Environmental Exposure: High voltage bushings located in areas with high pollution levels or near industrial zones are more susceptible to contamination.
Improper Sealing: If bushings are not sealed properly, contaminants can easily enter the internal components.
To mitigate contamination risks, consider the following:
Cleaning Protocols: Implement regular cleaning of high voltage bushings, especially in areas with high pollution or industrial activity.
Protective Covers: Use protective covers to shield bushings from dust and pollutants.
Improved Sealing Mechanisms: Ensure that bushings are properly sealed to prevent external contaminants from entering.
Thermal stress occurs when high voltage bushings are exposed to temperature extremes that exceed their rated capacity. Overheating is a significant concern because it can cause insulation materials to degrade, leading to short circuits, mechanical failure, or complete bushing breakdown.
High Load Conditions: Operating at high loads for extended periods generates excess heat that may exceed the bushing's capacity.
Inadequate Cooling Systems: Poor cooling or ventilation in transformer systems can result in the bushing overheating.
Environmental Temperature Variations: External temperature fluctuations can impact the internal temperature of bushings.
Efficient Cooling Systems: Ensure that cooling mechanisms are in place and functioning properly to maintain the temperature within safe limits.
Load Monitoring: Regularly monitor and adjust operating loads to prevent the bushing from overheating.
Install Temperature Sensors: Use temperature sensors to detect early signs of overheating and trigger corrective actions.
Prevention Measure | Description |
Efficient Cooling Systems | Implement and maintain proper cooling systems to regulate heat. |
Load Monitoring | Regularly monitor load conditions to prevent overheating. |
Temperature Sensors | Use sensors to detect excessive heat and prevent damage. |
Mechanical stress from vibration or shock is another common cause of high voltage bushing failure. Vibrations from nearby equipment or external environmental factors can cause cracks or fractures in the bushing. These cracks compromise the insulation and mechanical integrity of the bushing, leading to potential failure.
Vibration from Nearby Equipment: Transformers and other electrical equipment may generate vibrations that impact nearby bushings.
Transport and Installation Damage: During the installation or transportation of bushings, mechanical impacts can lead to cracks or fractures.
To reduce the risk of mechanical damage, consider these strategies:
Proper Installation Techniques: Ensure that bushings are installed securely with appropriate vibration damping materials.
Shock Absorbing Materials: Use shock-absorbing materials during installation and transport to minimize the risk of damage.
Vibration Dampening: Install vibration dampers to reduce the impact of external vibrations.
High voltage bushings are often exposed to harsh environmental conditions, such as moisture, salt, and temperature variations, which can cause corrosion of the metallic components of the bushing.
Weakening of Structural Integrity: Corrosion can weaken the metal components, leading to mechanical failure or leakage.
Increased Electrical Resistance: Corroded components can increase resistance, leading to overheating and premature failure.
Shortened Service Life: Corrosion accelerates wear and tear, reducing the bushing’s effective lifespan.
Use Corrosion-Resistant Materials: Ensure that bushings are made from materials that are resistant to corrosion, such as stainless steel or coated metals.
Regular Inspections for Corrosion: Periodically inspect metal parts for signs of corrosion and replace any affected components immediately.
Protective Coatings: Apply protective coatings to metal parts to prevent corrosion, especially in coastal or highly humid environments.
Prevention Method | Description | Frequency |
Corrosion-Resistant Materials | Use materials that resist corrosion | During procurement |
Regular Corrosion Inspections | Inspect metal components for signs of corrosion | Annually or as needed |
Protective Coatings | Apply protective coatings to prevent corrosion | During installation and maintenance |
Overvoltage is a condition where the voltage applied to the bushing exceeds its rated capacity. Overvoltage can damage the insulation, leading to electrical breakdown and eventual bushing failure.
Surge Events: Lightning strikes, switching operations, and other surge events can cause temporary overvoltage conditions.
Improper Voltage Settings: Incorrect voltage settings during installation or operation can lead to persistent overvoltage.
Surge Protection: Install surge protection devices to limit voltage spikes and prevent overvoltage conditions.
Voltage Monitoring: Regularly monitor voltage levels to ensure they remain within safe operating limits.
Correct Voltage Settings: Ensure that the voltage settings during installation are accurate and within manufacturer specifications.
Inadequate manufacturing standards and poor-quality materials can lead to early failures in high voltage bushings. Defective bushings may have structural weaknesses, leading to electrical breakdown, insulation failure, or mechanical damage.
Substandard Materials: Using low-quality insulation or metal components can result in early bushing failure.
Manufacturing Errors: Poorly executed manufacturing processes can result in defects such as cracks, improper sealing, or weak insulation.
Source Quality Materials: Always source materials from reputable suppliers that meet industry standards.
Routine Quality Checks: Perform routine quality checks during production to ensure bushings meet specifications.
Certifications and Standards: Choose bushings that are certified and comply with relevant industry standards, ensuring their reliability.
High voltage bushings play a crucial role in ensuring the safe and efficient operation of electrical systems. By understanding the common causes of bushing failures and taking proactive measures, we can significantly reduce the risks associated with these vital components. Regular inspections, proper installation, and ongoing maintenance are essential for preventing failures and enhancing the longevity of high voltage bushings.
At Nanjing Rainbow Electric Co., Ltd. (NJREC), we are committed to providing high-quality bushings designed to meet the rigorous demands of modern electrical systems. Our products are engineered to offer reliability, durability, and optimal performance. By investing in our advanced bushing solutions, you can ensure that your electrical systems operate smoothly, minimizing downtime and costly repairs.
For more information on how we can help safeguard your electrical systems or to inquire about our range of products, don’t hesitate to get in touch with us. Our team is always ready to provide expert guidance and support tailored to your needs. Let us help you keep your operations running efficiently with top-tier bushing solutions.
The average lifespan of a high voltage bushing depends on the quality of the materials, operating conditions, and maintenance practices. Generally, with proper care, a high voltage bushing can last between 20 to 30 years.
Look for visible signs such as cracks, discoloration, or leakage. Additionally, electrical testing such as insulation resistance testing can help identify internal issues before they lead to failure.
Yes, extreme weather conditions, such as high humidity or temperature fluctuations, can accelerate the deterioration of insulation and contribute to corrosion, increasing the risk of bushing failure.
Maintenance schedules vary depending on the bushing's application and environmental conditions. However, regular inspections should be done every 6 months to 1 year, with more frequent testing in harsh environments.
If you suspect a failure, immediately shut down the system and inspect the bushing for visible damage. Perform electrical tests to confirm the failure and replace the bushing if necessary to avoid further damage to the equipment.
