Incorrectly specifying the Basic Insulation Level (BIL) triggers catastrophic insulation failure during a voltage surge. Conversely, arbitrarily increasing this rating causes severe over-engineering and physical integration issues. Engineers and technical teams must carefully balance system reliability against mechanical design constraints when evaluating a Transformer Bushing.
Real-world operating environments subject electrical grids to unpredictable transient surges. These surges stem from lightning strikes and sudden switching events. Failing to match your hardware to these extreme conditions causes massive equipment downtime. We must approach insulation coordination with precise engineering data.
This article provides a clear, evidence-based framework for calculating and specifying the correct transformer bushing BIL. You will learn how to navigate environmental de-rating factors and understand key regulatory standards. We will also explore critical dimensions like neutral grounding configurations. You can then confidently protect your substation infrastructure and avoid common specification traps.
BIL dictates transient survival: It defines the maximum lightning impulse voltage the bushing can withstand without flashover or puncture.
Environment alters ratings: Altitude (above 1,000 meters) and heavy pollution require deliberate BIL de-rating and creepage adjustments.
Standards dictate baselines: DIN transformer bushing and EN transformer bushing designs have specific minimum BIL requirements tied to system voltage (IEC/IEEE standards).
Supplier evaluation requires proof: Always require certified Type and Routine test reports to verify claimed BIL ratings before procurement.
Basic Insulation Level (BIL) serves as the ultimate benchmark for transient survivability. We define BIL as the specific maximum lightning impulse voltage a component can withstand. This standard impulse typically features a 1.2/50 microsecond waveform. The voltage spikes rapidly in 1.2 microseconds and decays over 50 microseconds. Nominal operating voltage tells you what happens during continuous operating voltage under normal service conditions. BIL tells you if the equipment survives a worst-case scenario surge.

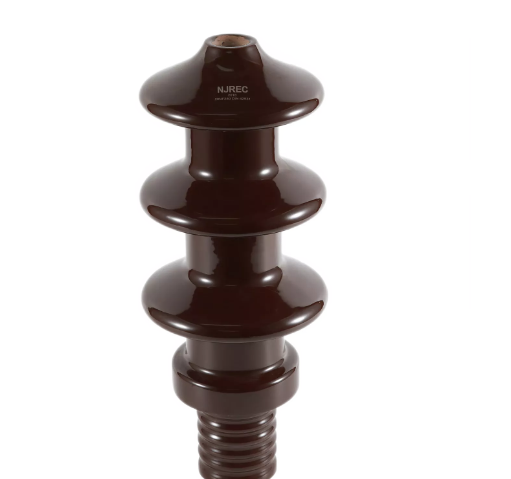

BIL directly dictates physical realities. You cannot increase the insulation level without changing the hardware. Higher ratings require greater physical dimensions. The bushing length increases to extend the dry arcing distance. The number of outer sheds multiplies. The core insulation thickness expands to handle internal electrical stress. We rely on these physical barriers to stop electrical tracking.
Underspecifying this rating leads to severe operational consequences. Surges easily breach weak insulation barriers. You will experience dielectric breakdown occurs when the internal insulation fails. You will face external flashovers if the surface arcing distance falls short. Both failure modes destroy the hardware and trigger extensive network outages. Proper specification acts as your primary insurance policy against these failures.
You cannot select the right insulation rating by guessing. Engineers use a systematic approach to coordinate insulation levels. We evaluate three primary dimensions to establish a reliable baseline.
Your baseline calculation begins with the highest voltage for equipment (Um). Standards align specific Um values with minimum impulse requirements. For example, a 36kV system typically requires a baseline BIL of 170kV. However, the raw system voltage only paints half the picture. You must account for your surge arresters.
Arresters provide a Lightning Impulse Protective Level (LIPL). They clamp the transient voltage at a specific threshold. Your insulation level must exceed this clamping threshold by a safe margin. We typically maintain a coordination margin of 15% to 20%. If an arrester clamps at 100kV, you need an insulation rating of at least 120kV. This margin guarantees the arrester absorbs the surge before the insulation fails.
Environmental conditions drastically alter dielectric strength. Air acts as a primary insulating medium around the external porcelain or composite housing. As you move to higher elevations, air density drops significantly. Thinner air offers less resistance to electrical flashovers.
We observe this phenomenon through Paschen’s Law. Installations above 1,000 meters (3,300 feet) demand immediate correction factors. You must apply an altitude de-rating multiplier to ensure safety. Heavy pollution also forces re-evaluations. Coastal salt fog or industrial dust degrades surface resistance. You may need a higher overall rating or a heavily modified creepage profile.
Table 1: Standard Altitude Correction Factors for Air Insulation
Installation Altitude (Meters) |
Correction Factor (Multiplier) |
Impact on Required BIL |
|---|---|---|
Up to 1,000m |
1.00 |
No adjustment needed. |
1,500m |
1.05 |
Increase rating by 5%. |
2,000m |
1.10 |
Increase rating by 10%. |
3,000m |
1.20 |
Increase rating by 20%. |
Your network's grounding configuration dictates transient behavior. Solidly grounded networks dissipate surge energy efficiently. They allow you to use standard, optimized insulation ratings. Impedance-grounded or ungrounded systems behave completely differently.
Ungrounded networks experience severe neutral shifts during fault conditions. The H0 ungrounded terminal faces massive voltage reflections. The voltage can theoretically double at the neutral point during a line-to-ground fault. You must specify a much higher transient capability for these configurations. Failing to upgrade the neutral terminal rating leads directly to puncture failures.
Global regulatory environments shape how we specify insulation. You must map your requirements to regional compliance frameworks. Relying on recognized standards ensures interoperability and mechanical consistency.
Specifying a DIN Transformer Bushing simplifies the engineering process. The German DIN standard heavily influences global equipment designs. It strictly standardizes mounting flanges, rod diameters, and bolt circles. This makes physical retrofitting highly predictable. Similarly, selecting an EN Transformer Bushing guarantees compliance with European norms. Both frameworks align closely with IEC 60137 guidelines. They dictate exact minimum electrical thresholds for each system voltage class.
Applications exceeding 72.5 kV introduce stricter evaluation criteria. When you specify a High Voltage Transformer Bushing, standard bulk insulation no longer works. High voltages demand internal capacitive grading to manage severe electrical stress. Manufacturers use alternating layers of conductive foil and insulating materials. They utilize Oil-Impregnated Paper (OIP), Resin-Impregnated Paper (RIP), or Resin-Impregnated Synthetics (RIS). This precise grading controls the electric field distribution. It ensures the hardware reliably meets massive lightning impulse demands.
Theoretical calculations often fail in real-world scenarios due to oversight. Engineers frequently fall into predictable specification traps. You must recognize these pitfalls to ensure long-term network stability.
Mismatching Winding and External Ratings: Your external hardware must coordinate with internal components. The external rating must typically equal or slightly exceed the transformer winding rating. If the external hardware is weaker, it becomes the point of failure. You never want a transient surge to breach the primary interface.
Ignoring the Creepage Interplay: Many engineers assume a higher impulse rating automatically solves heavy contamination problems. This is a dangerous mistake. Impulse ratings rely on dry arcing distance (a straight line). Contamination requires specific creepage distance (the surface contour path). You can have massive impulse capability but still experience a pollution flashover. You must specify both parameters independently.
Testing Gaps: Never accept unverified supplier data. Manufacturers often list theoretical capabilities. You must demand proof. A rigorous Lightning Impulse Voltage Withstand Test verifies transient survival. Routine tests, including Partial Discharge and Capacitance measurements, confirm manufacturing consistency. Skipping document verification introduces unacceptable operational risk.
Procurement teams need a transparent framework for selecting manufacturers. You cannot evaluate a supplier based purely on lead times. Use this detailed checklist to audit potential partners.
Engineering Support and Customization: Can the supplier calculate altitude and temperature de-rating factors? Do they provide custom sheds for unique pollution environments? Strong engineering support indicates deep technical competence.
Quality Assurance and Documentation: Do they provide transparent Factory Acceptance Testing (FAT)? You should expect comprehensive historical test data. Ask for certified Type Test reports from independent laboratories. Refuse shipments lacking detailed Routine Test certificates.
Material Transparency: Do they clearly define their insulation mediums? They should specify the exact grade of porcelain or epoxy used. If utilizing RIP or RIS technologies, they must prove moisture ingress resistance. The supplier must explain how their specific material behaves under rated transient conditions.
Selecting the right insulation capability requires careful engineering balance. You must harmonize standard compliance, environmental realities, and surge protection coordination. Relying on standardized designs like DIN or EN models provides a solid mechanical baseline. However, you must always adapt electrical parameters for altitude, pollution, and grounding configurations. Proper evaluation prevents catastrophic flashovers and ensures grid stability.
Your next step requires action. Audit your current substation environmental data immediately. Document your exact installation altitude, system voltage, and arrester protective levels. Contact your technical sales team with this precise data. They will use these metrics to generate an accurate, long-lasting specification recommendation.
A: Yes, you can specify a higher rating. This approach provides extra safety margins, especially for high-altitude applications. However, it increases the physical footprint and the overall weight. You must ensure your existing mounting clearances and internal transformer leads can accommodate the significantly larger hardware.
A: No. The DIN standard primarily outlines dimensional, mechanical, and flange mounting standards. It ensures physical interchangeability. You must still explicitly match the electrical ratings to your specific voltage class per IEC 60137 requirements.
A: Ungrounded neutrals experience massive voltage reflections during fault conditions. The neutral voltage can shift dramatically. You usually need to specify an impulse rating much higher than a solidly grounded system. Engineers often step up the rating by at least one full voltage class to prevent puncture.
A: Surge arresters dictate your required safety margin. You must coordinate the arrester's Lightning Impulse Protective Level (LIPL) with your hardware. We require a minimum coordination margin of 15% to 20%. The hardware rating must always remain safely above the arrester's maximum clamping voltage.
