Rated Voltage: | |
---|---|
Rated Current: | |
Material: | |
Color: | |
Availability: | |
Quantity: | |
10NF/ 20NF/30NF 630A
NJREC
8504901900
Specification:
PART NUMBER | DESCRIPTION | RATING (KV) | RATING (A) | TANK HOLE SIZE | BIL | CREEPAGE | STEM CONNECT |
10NF250 | DIN 42531 10NF250 | 12 | 250 | 78 | 75 | 305 | M12 |
10NF630 | DIN 42532 10NF630 | 12 | 630 | 90 | 75 | 305 | M20 |
10NF1000 | DIN 42533 10NF1000 | 12 | 1000 | 110 | 75 | 295 | M30 |
10NF2000 | DIN 42533 10NF2000 | 12 | 2000 | 135 | 75 | 295 | M42 |
10NF3150 | DIN 42533 10NF3150 | 12 | 3150 | 135 | 75 | 295 | M48 |
20NF250 | DIN 42531 20NF250 | 24 | 250 | 78 | 125 | 450 | M12 |
20NF630 | DIN 42532 20NF630 | 24 | 630 | 90 | 125 | 440 | M20 |
20NF1000 | DIN 42533 20NF1000 | 24 | 1000 | 110 | 125 | 445 | M30 |
20NF2000 | DIN 42533 20NF2000 | 24 | 2000 | 135 | 125 | 445 | M42 |
20NF3150 | DIN 42533 20NF3150 | 24 | 3150 | 135 | 125 | 445 | M48 |
30NF250 | DIN 42531 30NF250 | 36 | 250 | 78 | 170 | 607 | M12 |
30NF630 | DIN 42532 30NF630 | 36 | 630 | 90 | 170 | 662 | M20 |
30NF1000 | DIN 42533 30NF1000 | 36 | 1000 | 110 | 170 | 635 | M30 |
30NF2000 | DIN 42533 30NF2000 | 36 | 2000 | 135 | 170 | 635 | M42 |
30NF3150 | DIN 42533 30NF3150 | 36 | 3150 | 135 | 170 | 635 | M48 |

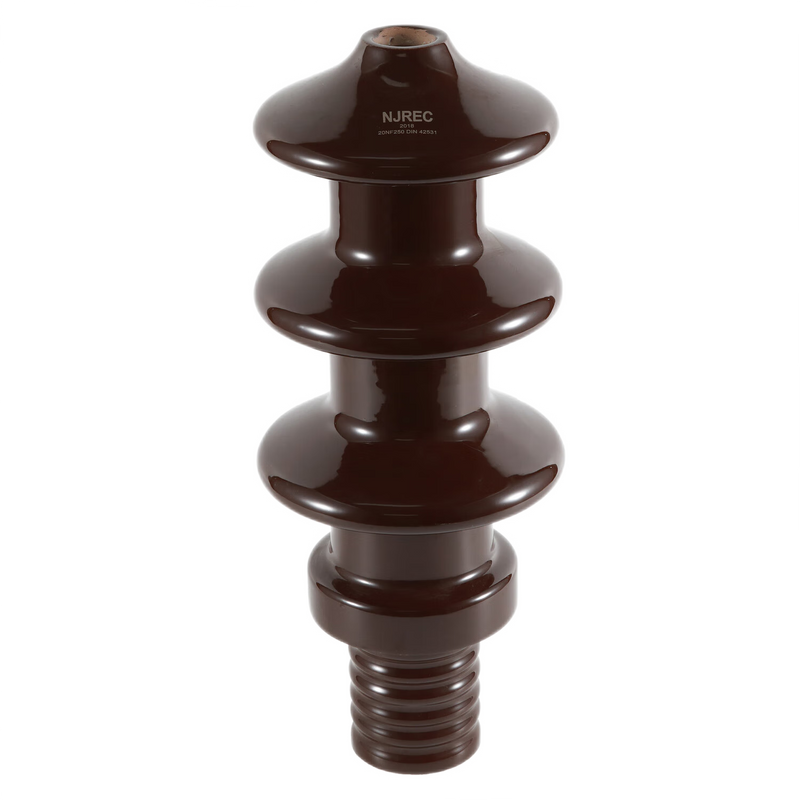

Nanjing Rainbow Electric Co. offers premium High Voltage DIN Standard Porcelain Transformers Bushing, designed for a variety of industrial applications. Discover how this product can enhance your projects:
High Voltage Power Transmission: Ensure reliable performance and safety in high voltage environments with our robust bushing solutions.
Insulation: Benefit from superior insulation properties that protect your systems from electrical faults.
Transformer Bushing: Utilize as an essential component for leading high and low voltage leads outside the transformer oil tank.
Railway and Power Applications: Ideal for use in railway systems and power utilities, where precision and reliability are paramount.
Hardware and Electronic Parts: Perfect for integrating into complex hardware and electronic assemblies.
Compliance and Customization: Meets DIN, ISO9001, and CE standards, with customization options available to suit specific project needs.
Partner with Nanjing Rainbow Electric Co. for high-quality, certified components that prioritize safety and efficiency. Our products are engineered to meet the demands of electrical engineers and procurement managers seeking top-tier solutions for infrastructure development.
Nanjing Rainbow Electric Co. presents the High Voltage DIN Standard Porcelain Transformers Bushing, a top-tier solution designed for your high voltage power transmission needs. Here's why this product stands out:
Versatile Voltage Range: Rated voltage from 12 kV up to 52 kV, ensuring adaptability for various applications.
Robust Current Capacity: Supports a maximum rated current from 250 A to 3150 A, meeting your high-demand requirements.
Superior Insulation: Crafted with porcelain insulating material for optimal electrical performance and safety.
Customizable Design: Multiple copper rod customizations and connection styles available to suit your specific needs.
Compliance with Standards: Adheres to EN 50180, EN 50243 standards, formerly known as DIN 42531/-2/-3/-4 & 42541.
Enhanced Durability: Special surface treatments like tinplating and silverplating for increased longevity.
Pollution Resistance: Antipollution levels ranging from P1 to P4, suitable for various environmental conditions.
High Load Capacity: Bearing capacity of 100KN, ensuring reliable performance in demanding situations.
These features make Nanjing Rainbow Electric Co.'s product an ideal choice for professionals seeking reliable, customizable, and standards-compliant transformer bushings.
Superior Quality and Precision
- Manufactured with high-quality materials ensuring durability and reliability.
- High precision engineering meets DIN and ISO9001 standards, crucial for your high voltage projects.
Advanced Manufacturing Techniques
- Utilizes advanced casting technology like Lost wax precision casting for superior strength and appearance.
- Comprehensive surface treatments available, including sand blasting and polishing, to meet your specific needs.
Robust Testing and Certification
- Equipped with state-of-the-art testing capabilities, ensuring each component meets stringent quality standards.
- Certificates like ISO9001 available, ensuring compliance with international standards.
Customization and Flexibility
- Offers OEM and ODM services, allowing customization to meet your unique project requirements.
- Factory direct pricing and support for small orders provide flexibility and cost-effectiveness.
Reliable and Professional Service
- Benefit from quick delivery and 24-hour after-sales support, ensuring seamless project execution.
- Over 20 years of experience and a strong team spirit guarantee professional and friendly service.
Choose Nanjing Rainbow Electric Co. for reliable, high-performance transformer bushings tailored to your needs.
As an electrical engineer or procurement manager, ensuring the reliability and compliance of components is crucial for the success of your high voltage power transmission projects. Nanjing Rainbow Electric Co. offers the High Voltage DIN Standard Porcelain Transformers Bushing with certifications that meet international standards.
Certification | Description |
---|---|
CCC | Ensures compliance with Chinese standards for quality and safety. |
CE | Confirms conformity with European Union regulations, guaranteeing product safety and reliability. |
ISO9001 | Demonstrates adherence to quality management systems, ensuring consistent performance and service. |
Copper-based Alloy Certification | Specific certification for copper and copper-based alloys like brass and bronze, available upon request. |
These certifications underscore our commitment to providing high-quality, precision-engineered products tailored to your needs. By choosing Nanjing Rainbow Electric Co., you ensure compliance with international standards, enhancing the safety and efficiency of your electrical systems.
Nanjing Rainbow Electric Co. ensures that your High Voltage DIN Standard Porcelain Transformers Bushing arrives safely and efficiently with our robust packaging and shipping solutions.
Inner Packaging: Secure bubble bags to protect components.
Outer Packaging: Durable carton boxes, wooden cases, or pallets/plywood boxes for added safety.
Transport Package: Sturdy wooden cases designed for high-voltage equipment.
Standard Export Packing: Includes company logo and essential product details.
Custom Packaging: Tailored solutions available to meet specific project needs.
Available Ports: TIANJIN, SHANGHAI, NINGBO for convenient global shipping.
Flexible Payment Options: L/C, MoneyGram, Western Union, D/P, D/A, T/T.
Efficient Delivery: Reliable shipment processes to ensure timely receipt of goods.
Nanjing Rainbow Electric Co. is committed to providing high-quality, reliable, and customizable packaging solutions that meet international standards, ensuring your high voltage components arrive safely and ready for installation.
