IEC 60137 standards for high voltage bushings help ensure safe transformer insulation. Understanding IEC 60137 transformer bushing requirements matters for reliability and long service life. In this article, you will learn key tests, partial discharge limits, and compliance basics. NJREC epoxy resin bushing products offer stable value. Learn more about our products as you read on.
IEC 60137 matters because transformer bushings are often the weak link in high voltage assets. A bushing must carry current through a grounded transformer tank while preventing flashover or insulation breakdown. If it fails, the result can be catastrophic, including outages, fire, or equipment damage. IEC 60137 provides a structured framework so manufacturers and utilities can verify that bushings meet consistent safety and performance targets. The standard also helps asset managers compare products across suppliers. It defines key electrical and mechanical expectations, which supports long-term reliability planning. Without IEC 60137 compliance, utilities face higher operational risk and uncertain interchangeability between bushing designs.
IEC 60137 covers bushings designed for AC voltages above 1 kV, mainly for transformers and high voltage switchgear. It applies to condenser bushings, oil-impregnated paper designs, resin-bonded paper, and some epoxy bushing insulation systems. The standard focuses on how these bushings perform under service stresses, including power frequency voltage, impulse voltage, and partial discharge exposure. It also addresses outdoor and indoor bushing requirements. While IEC is global, it does not enforce full dimensional interchangeability across brands. That means utilities still need supplier coordination for replacements. Understanding scope helps engineers avoid applying the wrong test or rating assumptions.
IEC 60137 plays a key role in harmonizing insulation standards worldwide. In North America, IEEE and CSA standards remain common, but utilities increasingly accept IEC bushings for new transformer installations. Harmonization efforts focus strongly on test requirements, such as tan delta and partial discharge measurement. However, dimensional differences still create interchangeability issues, since IEC bushings are not standardized by flange geometry across manufacturers. This makes supplier flexibility important. Global harmonization improves procurement options, but it also requires careful asset planning. Engineers must align bushing testing, documentation, and spares strategy across standards.

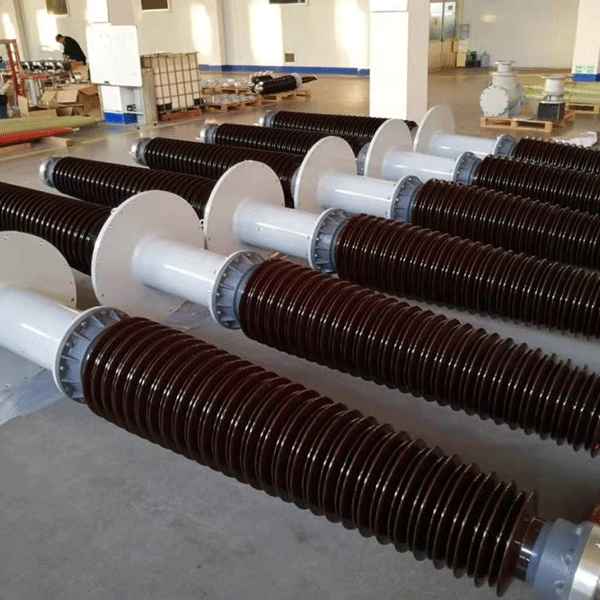

High voltage bushing design according to IEC 60137 focuses on insulation coordination and electrical field control. A bushing is not just insulation. It manages voltage stress using condenser layers or graded structures. These layers distribute the electric field evenly, reducing stress concentration near grounded flanges. IEC 60137 also expects bushings to withstand mechanical loads, thermal cycling, and environmental exposure. Design must account for rated current, rated voltage, and impulse withstand values. Engineers should treat bushings as active electrical field devices. A well-designed IEC-compliant bushing reduces flashover risk and improves transformer life expectancy.
IEC 60137 requires careful insulation coordination. This includes clearance in air, creepage distance on surfaces, and internal dielectric strength. Outdoor bushings must handle pollution severity, moisture, and surface leakage currents. Creepage distance becomes critical in coastal or industrial zones. Engineers also need to consider altitude correction, since reduced air density lowers breakdown voltage. IEC guidance supports selecting appropriate insulation levels so bushings survive both normal operation and transient surges. Poor coordination increases partial discharge activity and accelerates insulation aging. Proper creepage planning reduces maintenance burden and improves service reliability.
Bushings must withstand mechanical forces such as cantilever loads, vibration, and conductor tension. IEC 60137 includes mechanical test expectations, often specifying load ranges depending on voltage and current rating. Thermal performance is also important. Bushings experience heating from current flow and conductor losses. Standards compare how different systems manage temperature rise and stability. Unlike IEEE, IEC may not always specify hottest-spot rise requirements in the same way, so engineers must review clauses carefully. Mechanical and thermal integrity directly affect bushing lifetime and failure risk.
Routine tests verify every bushing meets baseline insulation quality. IEC 60137 requires measurements such as capacitance and tan delta at specified voltages. It also includes power frequency withstand tests with partial discharge checks. Tightness tests apply for certain designs, especially oil or gas-filled bushings. These routine procedures ensure no major manufacturing defects exist before shipment. Utilities rely on routine test reports as part of acceptance criteria. Without these tests, hidden voids or moisture issues may remain undetected until service failure.
IEC 60137 distinguishes between routine tests and type tests. Type tests validate design performance under extreme conditions, such as lightning impulse withstand or switching impulse tests for very high voltages. Special tests may apply depending on purchaser agreement. For example, transformer bushings above 245 kV require specific impulse sequences. These tests confirm the bushing can survive grid surges. Engineers should understand which tests are mandatory and which are negotiated. This affects procurement cost and project timelines.
Compliance requires more than passing tests. Documentation must include rated values, test procedures, and acceptance results. Utilities often demand certification packages that show IEC 60137 compliance for bushings used in substations. Asset managers also need traceability for future maintenance and replacement planning. Because IEC does not enforce dimensional interchangeability, documentation also helps ensure the correct spare design is available. Clear certification supports long-term reliability programs, especially for epoxy resin bushing products designed for compact switchgear systems.
Partial discharge is one of the most sensitive indicators of insulation defects. IEC 60137 specifies PD limits such as ≤10 pC at certain test voltages, depending on the procedure. PD measurements occur during withstand testing and long-duration low-frequency tests. Even small PD activity can indicate voids or cracks inside insulation. Over time, PD erodes material and leads to breakdown. IEC PD limits help prevent defective bushings from entering service.
Tan delta and capacitance tests measure dielectric losses and insulation condition. IEC requires measurements across voltage ranges, often between 2 kV and 20 kV depending on rated Um. A low stable tan delta indicates dry, healthy insulation. Increasing values suggest moisture ingress or aging. Capacitance changes may signal breakdown of condenser layers. Utilities trend these values over time to predict failures. These tests are core tools in bushing condition monitoring.
PD testing detects defects that are invisible externally. Tiny voids inside insulation act as discharge sites. Each discharge slowly carbonizes material and weakens dielectric strength. IEC testing captures PD inception and extinction behavior, which helps assess insulation margin. For critical high voltage bushings, PD testing is essential for both factory quality assurance and field diagnostics. It reduces the risk of catastrophic transformer failures.
Tip: For utilities, trending PD and tan delta results over years gives earlier warning than one-time pass/fail checks.
Power frequency withstand tests apply elevated AC voltage for a defined duration, usually one minute. The bushing must survive without breakdown or flashover. IEC specifies test values in tables based on rated voltage. PD is often measured after the withstand test. This proves basic insulation integrity. These tests are routine for new bushings and critical after repairs.
Lightning impulse tests simulate surges from lightning strikes. IEC defines full-wave and chopped-wave impulse sequences, especially for bushings above 72.5 kV. For transformer bushings ≥245 kV, specific sequences apply. These tests ensure insulation can withstand extreme transient stress. Chopped-wave tests are harsher because they create steep voltage gradients. Passing impulse tests is vital for grid resilience.
Switching impulse tests apply long-duration impulses typical of switching operations in EHV networks. IEC requires both positive and negative polarity impulses for certain ratings. These tests address stresses different from lightning impulses. For modern UHV systems, switching impulse withstand capability is critical. Engineers must ensure bushings meet SIL ratings aligned with system design.
IEC, IEEE, and CSA standards overlap but differ in details. IEEE often dominates North American practice, while IEC is global. Testing requirements such as PD measurement timing and tan delta voltage levels vary. CSA largely adopts IEEE with Canadian-specific cold climate requirements. These differences matter for cross-border procurement and asset management.
Interchangeability is a major challenge. IEEE and CSA specify key dimensions, but IEC does not enforce standardized flange geometry. That means IEC bushings from different brands may not fit interchangeably. Utilities must rely on suppliers for exact replacement designs. This drives the need for strong supplier partnerships and spare planning.
Harmonization improves test consistency but may not solve physical interchangeability. Utilities increasingly accept IEC bushings, reducing demand for CSA-only designs. Asset managers stock fewer spares and rely on blanket agreements with suppliers for short lead times. OEMs must design flexibility into procurement plans. Harmonization affects cost, supply chain strategy, and long-term maintenance planning.
Epoxy bushing insulation systems are growing in medium voltage and some high voltage applications. IEC 60137 compliance ensures these epoxy bushings meet dielectric and PD limits. Epoxy designs offer solid insulation without oil leaks. However, they require strict void-free casting and curing control. Engineers must confirm epoxy bushings meet the same testing rigor as traditional OIP designs.
Epoxy bushings often resist moisture better than porcelain surfaces, but pollution still affects creepage performance. IEC requirements address outdoor contamination and leakage currents. Proper shed design and surface material selection improve pollution resistance. Utilities in coastal zones should pay close attention to creepage distance and surface aging.
Certification under IEC standards provides confidence for epoxy bushing use in compact switchgear. Tests such as tan delta, PD, and withstand voltage confirm insulation quality. Suppliers offering IEC-compliant epoxy bushings help OEMs meet global market requirements. For example, NJREC epoxy resin bushing products are designed with low partial discharge performance and compact installation benefits, supporting stable insulation in demanding switchgear environments.
Note: Epoxy bushings reduce maintenance needs, but only when curing and PD control meet strict IEC expectations.
Selecting the right rating requires matching Um, current, and impulse withstand levels to system design. IEC tables guide engineers on withstand test voltages. Misrating a bushing increases failure risk. Engineers should also consider environmental conditions, such as pollution severity and altitude.
Asset managers avoid stocking large spare inventories. They instead stock a few critical ratings and rely on supplier agreements. Since IEC bushings may not be interchangeable across brands, supplier flexibility is essential. Short lead times reduce outage risk. Strategic spares planning improves lifecycle cost control.
IEC-compliant bushings reduce catastrophic failure risk through strict PD and dielectric testing. They also support consistent condition monitoring through tan delta trending. Long-term reliability benefits include fewer outages, safer operations, and better transformer life extension. IEC compliance is a foundation for modern asset management.
IEC 60137 adoption is increasing as utilities globalize procurement. Canadian demand for CSA bushings declines as IEC and IEEE acceptance grows. Harmonized testing continues to shape future standards. IEC remains central for international transformer projects.
Modern bushings use advanced capacitive grading and composite insulation. Epoxy and silicone-based materials improve pollution resistance and reduce weight. These advances align with compact substation needs. Standards will evolve to address new materials and monitoring technologies.
Future grids face higher stress from renewables, switching events, and aging infrastructure. Test requirements may expand for online monitoring and condition-based maintenance. IEC standards will likely strengthen PD diagnostics and thermal stability expectations. Engineers should stay updated as IEC revisions emerge.
Tip: Utilities should align new bushing purchases with future monitoring practices, not just today’s acceptance tests.
IEC 60137 standards for high voltage bushings support safe transformer insulation. They define testing, partial discharge limits, and design compliance needs. Engineers also face interchangeability challenges across global standards. IEC practice reduces failure risk and improves asset life. NJREC epoxy resin bushing solutions offer stable value for modern power grids.
A: IEC 60137 standards for high voltage bushings define design, testing, and insulation safety requirements.
A: Understanding IEC 60137 transformer bushing requirements helps reduce failure risk and ensure compliance.
A: IEC 60137 testing procedures for bushings include withstand voltage, tanδ, and partial discharge checks.
A: IEC 60137 compliance for epoxy bushing insulation ensures low partial discharge and reliable performance.
