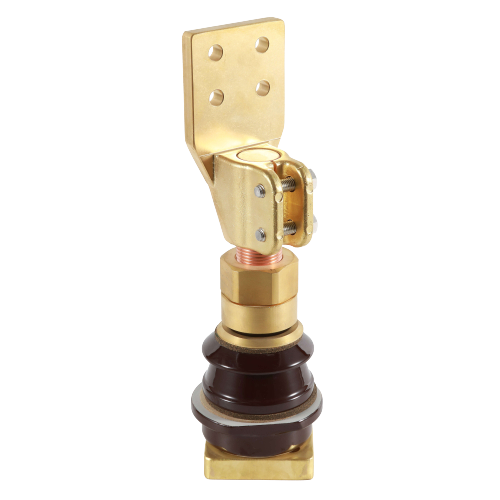

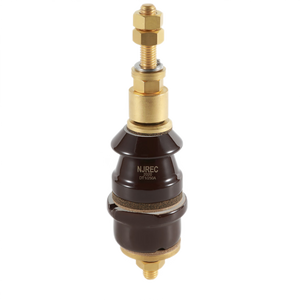

DIN 1KV 2000A Low Voltage Porcelain Transformer Accessory Bushing

As a standard product we can offer both historical DIN standard bushings and the latest EN range of bushings, these product cover the requirements of distribution and power transformer manufacturers. We can offer ratings from 1kV through to 52kV and up to 12500A with a wide variety of creepage distances to meet all environemental conditions.

All outdoor bushings are manufactured and tested in accordance with IEC60137, the detail of the bushing is governed by either historical DIN specification (no longer live standards but still utilsed widely by the transformer and distribution industry) or the latest range of EN specifications (EN50386 & EN50180).

Rated Voltage:	1KV
Rated Current:	2000A
Material:	Porcelain Brass Copper
Color:	Brown
Minium Creepage Distance:	80MM
Availability:

Quantity:



Inquire Add to Basket

Model:
DT 1-2000A
Brand:
NJREC
Code:
8504901900

Low Voltage Transformer Bushing 2000A bushing DIN bushing 1kV porcelain bushing transformer accessory High Voltage transformer Bushing 20 kV transformer bushing porcelain insulator High Voltage Bushing

Product Description

Specification:

PART NUMBER	DESCRIPTION	RATING (KV)	RATING (A)	TANK HOLESIZE	BIL	CREEPAGE	STEM CONNECT
DT 1/250	DIN 42530 1/250	1	250	-	-	60	M12
DT 1/630	DIN 42530 1/630	1	630	45	-	75	M20
DT 1/1000	DIN 42530 1/1000	1	1000	56	-	75	M30
DT 1/2000	DIN 42530 1/2000	1	2000	70	-	75	M42
DT 1/3150	DIN 42530 1/3150	1	3150	90	-	75	M48
DT 3/250	DIN 42539 3/250	3	250	39	40	120	M12
DT 3/630	DIN 42539 3/630	3	630	45	40	120	M20
DT 3/1000	DIN 42539 3/1000	3	1000	56	40	125	M30
DT 3/2000	DIN 42539 3/2000	3	2000	70	40	125	M42
DT 3/3150	DIN 42539 3/3150	3	3150	90	40	125	M48
DT 3/4500	DIN 42539 3/4500	3	4500	119	40	130	M55
DT 3/6500	DIN 42539 3/6500	3	6500	119	40	130	M75

Exploring the mystery of low-voltage porcelain transformer accessory bushing, how much do you know?

The transformer bushing is the main insulation device outside the transformer box, and is responsible for insulation and fixing the lead wires. Click on the video to take you to explore and get a comprehensive understanding of the low-voltage porcelain.
