High Voltage Bushing Partial Discharge Detection: Best Practices for Early Fault Prevention

High voltage bushings are critical components in transformers and switchgear. Industry data from IEEE and CIGRE indicates bushings cause 15–30% of transformer failures globally, with over 40% of these failures being catastrophic (fire, explosion). CIGRE also reports that bushing issues contribute to 30–50% of major high-voltage system failures, with annual losses exceeding $1 billion. Partial discharge (PD) detection has become a cornerstone of predictive maintenance.

Understanding Partial Discharge in Bushings

Partial discharge is a localized electrical discharge that partially bridges insulation without complete breakdown. In oil-impregnated paper (OIP), resin-impregnated paper (RIP), or dry-type bushings, PD originates from voids, moisture, contamination, floating particles, or surface defects.

Common failure mechanisms include:

• Voids/Cavities – Gas-filled gaps cause erosion and carbonization.

• Moisture – Reduces dielectric strength, promotes PD activity.

• Surface discharges – Corona/tracking from contamination.

• Floating electrodes – Loose conductive parts generate intense PD.

Key PD Detection Technologies

High-Frequency Current Transformer (HFCT) – Non-intrusive, low-cost, couples to test tap or ground. Sensitive to floating defects, less sensitive to voids/surface.

Ultra-High Frequency (UHF) – 300 MHz–1.5 GHz, excellent noise immunity. Effective for floating, void, and surface defects; detects PD at inception voltage.

Acoustic Emission (AE) – Ultrasonic pressure waves. Good for locating floating defects, less effective for voids/surface.

Capacitance & Dielectric Loss Monitoring – Continuous tracking of C1 and dissipation factor. Normal <0.5%, alert >1.0%; capacitance deviation ±10% indicates deterioration.

Integrated Sensors – Three-in-one systems combining dielectric loss, capacitance, and PD monitoring improve diagnostic confidence.

Online vs. Offline PD Detection

Offline testing provides baseline snapshots but misses intermittent defects and real operating conditions. Online monitors detect anomalies under actual voltage, thermal cycling, and load – often months before failure. As industry experts note, online monitoring triggers the best offline test for investigation.

Case Example

A 345 kV bushing was monitored online for one year. A PD event (8 pulses/second) plus a <2% capacitance increase was detected. Neither alone would prompt action, but correlated data led to DGA testing, which found 76 ppm C₂H₂ (internal arcing). The bushing was replaced before failure.

Best Practices for PD Detection Programs

• Establish baseline – PD levels, capacitance, dielectric loss, insulation resistance.

• Continuous online monitoring for critical assets – Generator step-up and substation transformers.

• Integrate multiple technologies – PD + DGA + capacitance monitoring + thermography.

• Set alert thresholds – Normal <100 pC, critical >500 pC (adjust by bushing type).

• Correlate data – Never evaluate PD alone; combine with DGA, capacitance, thermal.

• Validate with on-site inspection – UV cameras for corona, ultrasonic for internal, oil sampling.

• Document failure modes – Learn from confirmed events to improve future procurement.

Future Trends

• Dry-type bushings with integrated sensing – Resin-impregnated fiberglass (RIF) designs allow direct PD coupling.

• Multi-sensor fusion – Combining UHF, HFCT, AE improves accuracy and localization.

• AI-powered diagnostics – Machine learning on phase-resolved PD patterns automates defect classification.

• Wireless IoT – Low-cost sensors enable fleet-wide monitoring.

Conclusion

Partial discharge detection is essential for preventing high voltage bushing failures. With bushings causing up to 30% of transformer failures and 40% being catastrophic, proactive PD monitoring is a high-return investment. Best practice combines continuous online PD monitoring with complementary technologies (DGA, capacitance, thermal), clear thresholds, and rigorous data correlation. Utilities adopting these methods prevent outages, extend asset life, and enhance grid safety.

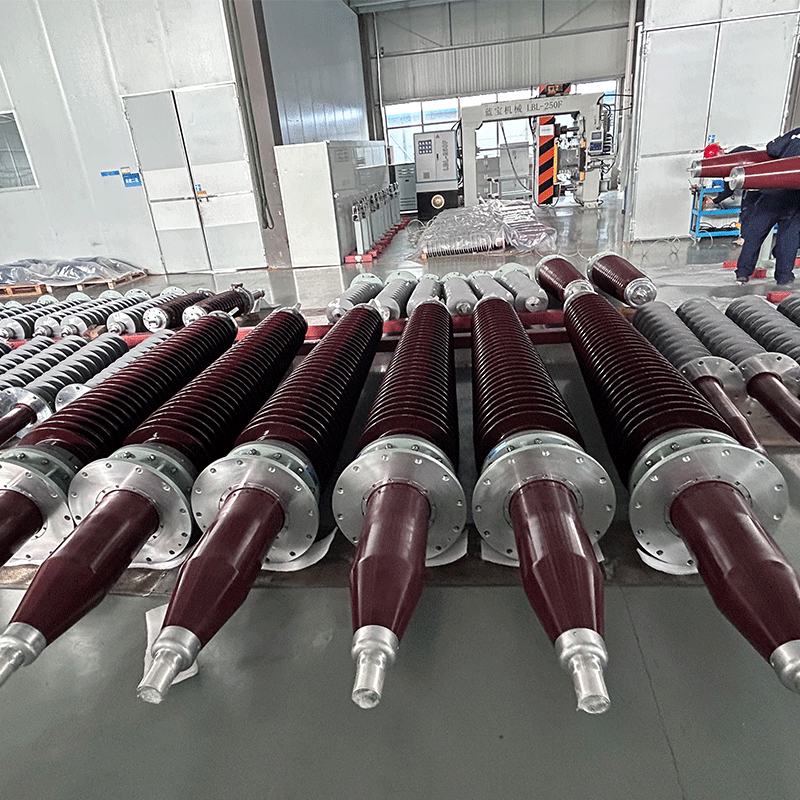

Why Condenser Bushing Selection Matters for Transformer Efficiency – A Practical Application Guide

In the evolving landscape of power transmission and distribution, operational efficiency is no longer measured solely by a transformer’s core and copper losses. Increasingly, engineers and asset managers are recognizing that seemingly peripheral components—particularly condenser bushings—play a critical role in determining overall transformer performance, reliability, and lifecycle cost.

Selecting the right condenser bushing is not merely a matter of voltage rating and dimensional fit. It is a strategic decision that directly impacts dielectric loss, thermal management, and long-term operational stability. When properly applied, high-quality condenser bushings contribute to reduced power losses, improved insulation coordination, and enhanced resistance to electrical and environmental stresses.

The Technical Link Between Bushings and Efficiency

At first glance, a bushing may appear to be a passive entry point for electrical conductors. However, condenser-type bushings—with their precisely graded capacitive layers—perform the essential function of controlling the electric field distribution between the transformer tank and the external connection point.

When bushings are underspecified or poorly matched to the transformer’s operating conditions, several efficiency-draining issues can arise:

• Increased dielectric losses due to suboptimal insulation materials or inadequate capacitive grading

• Localized overheating caused by uneven field distribution or insufficient thermal dissipation

• Premature aging of insulation systems, leading to higher maintenance frequency and unplanned downtime

Conversely, correctly selected condenser bushings help maintain low dissipation factors throughout the service life, ensuring that energy is delivered with minimal losses at the point of interface.

Key Selection Criteria for High-Efficiency Applications

To maximize transformer efficiency through bushing selection, engineers should focus on four core parameters:

1. Dielectric Performance and Partial Discharge Control
   Stable partial discharge (PD) levels—typically below detectable thresholds at operating voltage—are essential. High-quality condenser bushings employ precision-wound capacitive cores and rigorously tested insulation materials to ensure PD-free operation over decades of service.

2. Thermal Rating and Heat Dissipation
   Transformer efficiency is closely tied to operating temperature. Bushings must be rated not only for continuous current but also for the thermal dynamics of the transformer environment. Properly sized bushings with adequate thermal transfer characteristics help avoid hot spots that accelerate oil degradation and insulation aging.

3. Mechanical Robustness and Sealing Integrity
   Loss of oil or moisture ingress through compromised bushing seals can drastically reduce insulation effectiveness, leading to increased leakage currents and localized losses. High-grade condenser bushings are designed with durable sealing systems and robust porcelain or composite housings to maintain integrity under thermal cycling and environmental exposure.

4. Compatibility with Transformer Insulation Systems
   The bushing’s insulation design—whether oil-impregnated paper (OIP), resin-impregnated paper (RIP), or resin-impregnated synthetic (RIS)—must align with the transformer’s internal insulation structure. Mismatched systems can create field distortions that compromise both efficiency and reliability.

A Deeper Look: Capacitive Grading and Loss Control

One area where condenser bushing selection directly influences transformer efficiency is through the principle of capacitive grading. In a condenser bushing, a series of concentric conductive layers creates a controlled capacitance distribution that progressively reduces voltage stress across the insulation.

When this grading is precisely engineered, the resulting electric field is uniform, minimizing dielectric heating and preventing the formation of high-stress zones. This not only reduces loss generation within the bushing itself but also protects adjacent transformer insulation from accelerated aging. In high-efficiency transformer applications—such as those serving renewable energy plants, data centers, or urban grid substations—this level of precision is no longer optional but a performance imperative.

Application-Driven Selection: A Best Practice Approach

Industry experience shows that the most successful transformer projects adopt an application-driven selection strategy. Rather than treating the bushing as a commodity item to be matched only to voltage and current, leading engineering teams:

• Define expected operational duty cycles, including load variations and ambient conditions

• Specify bushing thermal performance relative to transformer top-oil and hotspot temperatures

• Require documented partial discharge test results from manufacturer-accredited laboratories

• Consider long-term availability of seals, gaskets, and other service-critical components

By integrating bushing selection into the broader transformer design and procurement process, operators can achieve measurable gains in efficiency—often reflected in lower no-load and load losses, reduced cooling requirements, and extended maintenance intervals.

Conclusion

In modern power systems, where every fraction of a percentage point in efficiency translates to significant operational and environmental impact, the importance of informed condenser bushing selection cannot be overstated. A bushing is not merely a passage for current—it is a carefully engineered interface that, when correctly selected and applied, actively contributes to transformer performance, reliability, and efficiency over the asset’s entire lifecycle.

For utilities, industrial facilities, and engineering firms seeking to optimize their transformer assets, the message is clear: precision in bushing selection delivers dividends in efficiency.
