Product Basics

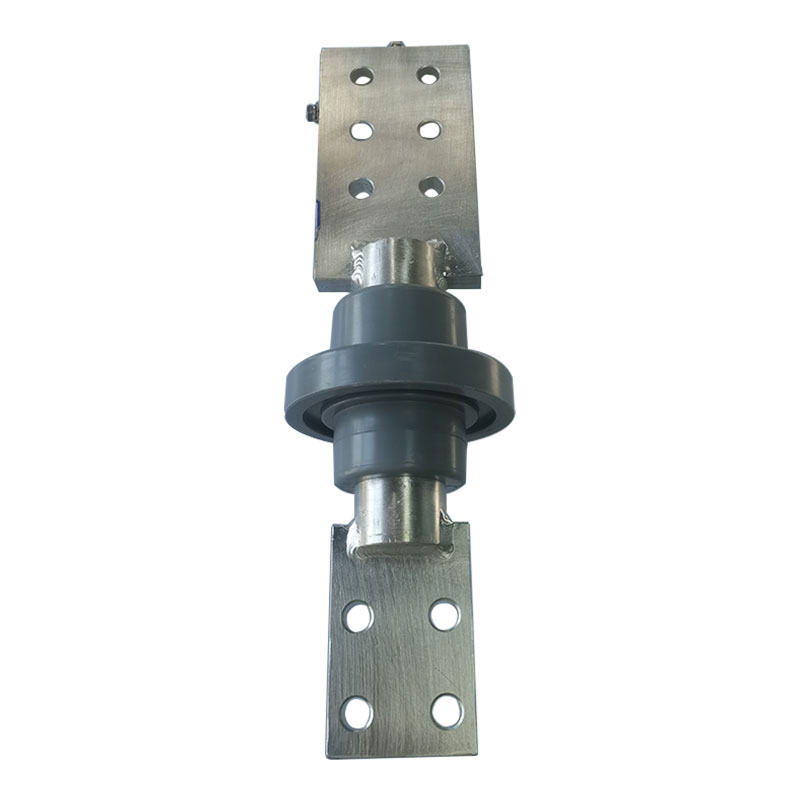

Specifications of 1kV Epoxy Bushing for Switchgear Equipment
| Specification | Details |
| Brand Name | Nanjing Rainbow Electric Co. |
| Model NO. | MSTG-24kV/630A |
| Flexibility | Semi-rigid |
| Material | Epoxy Resin |
| Maximum Voltage | 24kV |
| Rated Current | 630A/1250A |
| Rated Voltage | 12kV/24kV/35kV |
| Structure | Bushing Insulator |
| Rated Voltage & Maximum Withstand Voltage | 12kV: 45kV/1min
24kV: 65kV/1min
35kV: 95kV/1min |
| Size of Bearing Capacity | 550KN |
| Tensile Strength | 10.4MPa |
| Scope of Application | 3.6-40.5 Kv Voltage |
| Rated Voltage | 40.5kV |
| Dimensions for FTG1-1KV/630A~3150A | d1: Φ26 - Φ48
d2: Φ43 - Φ70
d3: Φ45 - Φ70
d4: Φ70 - Φ98
t1: 10 - 18
t2: 10 - 18
Lid opening: Φ48 - Φ73 |
| Transformer Bushing (TB) Types | Rated voltage: 24kV - 72.5kV
Rated current: 250A - 1250A
Length (A): 189.5mm - 384mm
Diameter (C): 110mm - 150mm |
| Double Bushing (DB) Types | Rated voltage: 36kV - 72.5kV
Rated current: 630A - 1250A
Length (A): 255mm - 384mm
Diameter (C): 125mm - 150mm |
| TG2-24-175x255x310-1 Specifics | Structure: Post Insulator
Type: B Type Insulator
Usage: High Voltage Power Transmission, Insulation, Electrical Installation
Connection Method: Trough Type
Size of Bearing Capacity: 300KN
Color: Red
Rated Voltage: 12kV
Type of Installation: Vertical, Hanging, Fixed
Maintenance and Testing: Insulation Resistance Test, Aging Test, Withstand
Production Process: Pour and Shape |
Material and Design
The use of epoxy resin endows it with advantages over traditional porcelain counterparts. It is lighter yet more robust, contributing to enhanced durability and flexibility. The capacitive design, incorporating multiple layers of insulating materials and metal foil electrodes, ensures an even electric field distribution, which is pivotal for superior insulation performance. Being cast as a single piece, it eliminates the need for assembly, reducing installation time and potential failure points.
Features of the 1kV Epoxy Bushing for Switchgear Equipment
Nanjing Rainbow Electric Co. offers a cutting-edge solution for high-voltage insulation with their 1kV Epoxy Bushing for Switchgear Equipment. Here are the standout features that make it an ideal choice for your power systems:
Advanced Insulation: Utilizes a capacitive design with multiple layers of insulating materials and metal foil electrodes, ensuring even electric field distribution and superior insulation performance.
Durability and Flexibility: Lighter and more robust than traditional porcelain, the epoxy resin construction offers enhanced durability and flexibility, making it suitable for demanding applications.
Seamless Construction: Cast as a single piece, these bushings require no assembly, reducing installation time and potential failure points.
Moisture and Dirt Resistance: Designed to resist dirt and moisture, these bushings require minimal maintenance, enhancing operational efficiency.
Versatile Applications: Perfect for power transformers, switchgear/GIS equipment, and new energy systems, offering reliable performance even in harsh environmental conditions.
High-Quality Standards: Meets international standards, ensuring reliability and safety in high-voltage insulation applications.
Choose Nanjing Rainbow Electric Co. for your high-voltage insulation needs and experience the benefits of superior engineering and robust performance.
Applications
A. Power Transformer Field
High - Voltage Side: Equipped with oil - paper capacitor type bushings that integrate fiber optic temperature measurement, enabling real - time monitoring and better thermal management compared to some traditional bushings without such advanced monitoring capabilities.
Dry - Type Transformer: Utilizes epoxy resin sleeves with a moisture - proof design, enhancing durability in various environmental conditions, an improvement over bushings that may be more vulnerable to moisture - related degradation.
B. Switchgear/GIS Equipment
Busbar Through - Wall Sleeve: Epoxy resin casting supports hot plugging, ensuring seamless operations, which is a more convenient and efficient feature than non - hot - plug - compatible alternatives.
GIS Sleeve: Provides SF6 gas insulation with a coaxiality error of ≤ 0.1mm/m and seismic grade 8 resilience, offering better insulation and seismic performance compared to bushings with lower coaxiality accuracy and seismic resistance.
C. New Energy Systems
In offshore wind power, it is equipped with composite casings resistant to salt spray, providing superior anti - corrosion protection, a significant advantage over bushings that may corrode more easily in salt - laden environments, ensuring longer - term stable operation in harsh marine conditions.
D. Industry and Transportation
High - Voltage Motor Lead - Out: Features a flexible sleeve that absorbs vibration, enhancing stability, which is better for motor operation than rigid bushings that may transfer vibration and cause potential damage.
Rail Transit Traction Power Supply: Explosion - proof design withstands frequent start - stop cycles, a crucial safety and durability feature compared to non - explosion - proof or less durable alternatives in this high - demand application scenario.
Nanjing Rainbow Electric Co. ensures that your electrical infrastructure remains efficient and safe with our high-quality 1kV Epoxy Bushing.
Competitive Edge
A. Insulation and Durability
When compared to similar products in the market, this epoxy bushing stands out in insulation. The capacitive design outperforms many competitors' designs in achieving uniform electric field distribution, thus providing more reliable high - voltage insulation. In terms of durability, the epoxy resin construction, with its resistance to dirt and moisture, ensures a longer service life with minimal maintenance, surpassing those that are more prone to environmental damage.
B. Application Versatility
Its application scope is broad, covering power transformers, switchgear/GIS equipment, new energy systems, and more. In power transformers, it can be used for both oil - paper capacitor type bushings on the high - voltage side (with integrated fiber optic temperature measurement) and epoxy resin sleeves for dry - type transformers (with a moisture - proof design). For switchgear/GIS equipment, it functions as a busbar through - wall sleeve (supporting hot plugging) and a GIS sleeve (offering SF6 gas insulation with high coaxiality accuracy and good seismic resilience). In new energy systems like offshore wind power, it has composite casings resistant to salt spray. This versatility makes it a more adaptable choice than many competitors that may be limited to specific application fields.
C. Customization and Quality
Offers customizable solutions to meet specific requirements, a feature that not all competitors can match. Adheres to strict quality control standards, meeting international norms, which ensures its reliability and safety in high - voltage insulation applications, putting it ahead of products with looser quality management.
Company Information: Nanjing Rainbow Electric Co.
Welcome to Nanjing Rainbow Electric Co., a leader in delivering high-quality power solutions. Our 1kV Epoxy Bushing for Switchgear Equipment is designed to meet the rigorous demands of high-voltage power systems. With a strong commitment to excellence, we provide components that ensure reliability and safety in electrical infrastructure.
Why Choose Nanjing Rainbow Electric Co.?
Expertise and Innovation: As a high-tech enterprise, we specialize in transformer and switchgear accessories, offering innovative solutions tailored to your needs.
Quality Assurance: Our advanced production and testing systems ensure that every product meets international standards, providing you with durable and reliable components.
Comprehensive Support: We offer full technical support and after-sales services, helping you maintain efficient and safe power operations.
Our products are trusted globally across power systems and industrial equipment, supporting new energy systems with robust, customizable solutions. Choose Nanjing Rainbow Electric Co. for your high-voltage insulation needs and experience unparalleled quality and service.
